Sony HCD-TZ200 - DVD Mechanism Deck Section View

56
HCD-TZ100/TZ200/TZ300

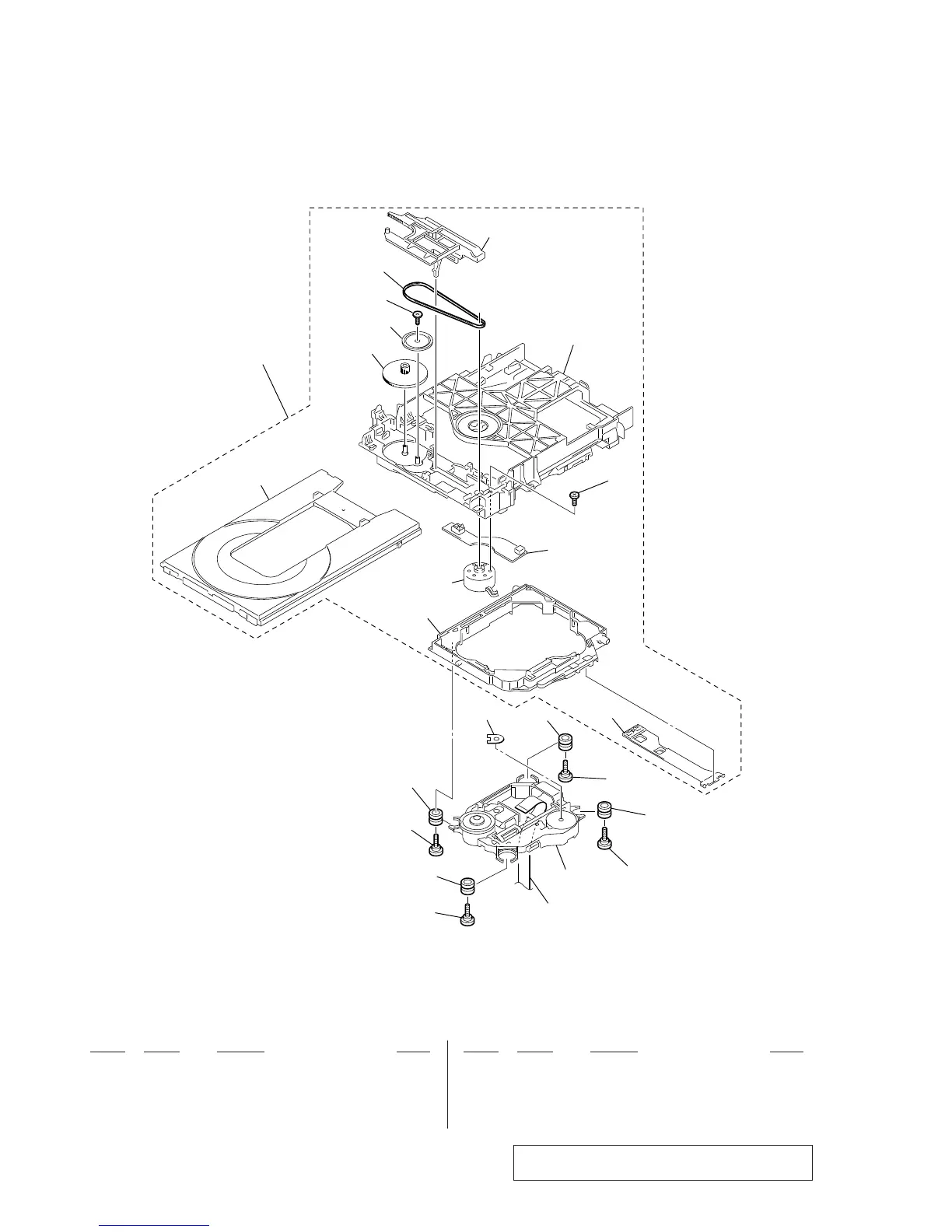

6-4. DVD MECHANISM DECK SECTION
(CDM85-DVBU102)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-6071-669-A LOADING ASSY (M)
152 3-088-371-01 BELT
153 4-974-725-11 SCREW (M1.7X2.5), P
154 4-674-137-11 SCREW (PTP2X5)
155 2-634-618-01 INSULATOR
156 3-087-599-01 SCREW, INSULATOR
0 157 8-820-321-12 OPTICAL PICK-UP (KHM-313CAA/C2RP1)
158 1-828-773-51 WIRE (FLAT TYPE) (24 CORE)
159 3-113-851-01 SHEET
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-203 board)
not
supplied
151
154
152
153
155
155
155
155
157
158
159
156
156
156
156
