Sony HCD-TZ200 - Chassis Section View

55
HCD-TZ100/TZ200/TZ300

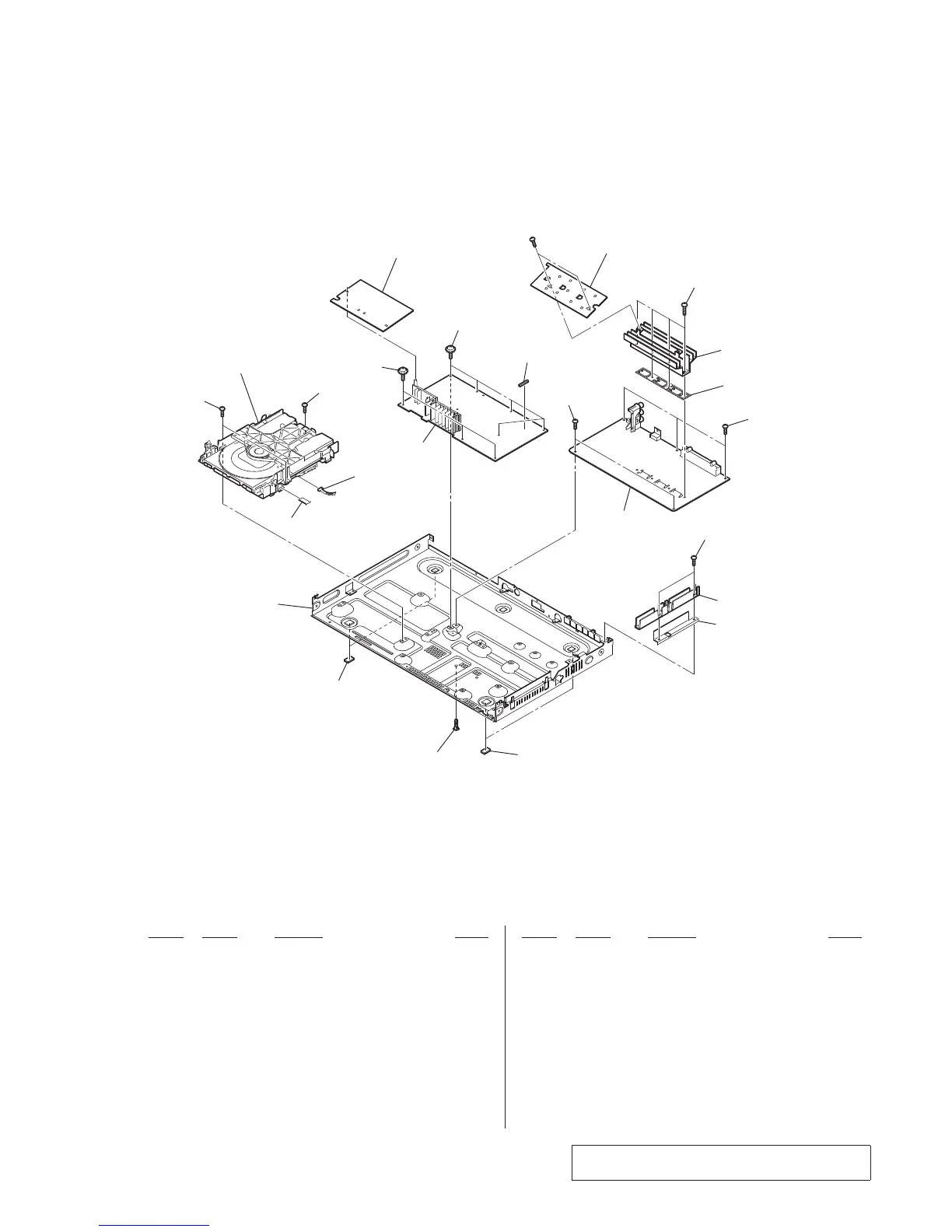

6-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
9 102 A-1671-523-A MAIN BOARD, COMPLETE (TZ200:E12)
9 102 A-1671-531-A MAIN BOARD, COMPLETE (TZ200:E3)
9 102 A-1671-539-A MAIN BOARD, COMPLETE (TZ200:PH,SP,TH)
9 102 A-1671-555-A MAIN BOARD, COMPLETE (TZ200:E32,AR)
9 102 A-1671-563-A MAIN BOARD, COMPLETE (TZ100/TZ200:MX)
9 102 A-1671-580-A MAIN BOARD, COMPLETE (TZ300)
9 102 A-1726-949-A MAIN BOARD, COMPLETE (TZ200:EA,SAF)
9 102 A-1726-961-A MAIN BOARD, COMPLETE (TZ200:AUS)
103 4-151-413-01 CUSHION (EGD)
104 1-828-291-11 WIRE (FLAT TYPE) (5 CORE)
105 2-677-839-01 +PWH 3X8 (SUMITITE)
106 A-1650-284-A POWER BOARD, COMPLETE (EXCEPT MX,E32)
106 A-1650-286-A POWER BOARD, COMPLETE (MX)
106 A-1650-288-A POWER BOARD, COMPLETE (E32)
107 3-077-331-11 +BV3 (3-CR)
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (8A/250V)
(MX)
0 F901 1-576-232-51 FUSE (H.B.C.) (T5AH/250V) (EXCEPT MX,E32)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V) (E32)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
103
103
104
105
105
101
101
101
101
102
107
106
101
not supplied
not supplied
(AUS, EA, SAF model)
not supplied
not supplied
F901
not supplied
not supplied
(AMP-RECT board)
not supplied
(POWER-RECT board)
not supplied
#1
not supplied
CDM85-DVBU102
Ver. 1.1
