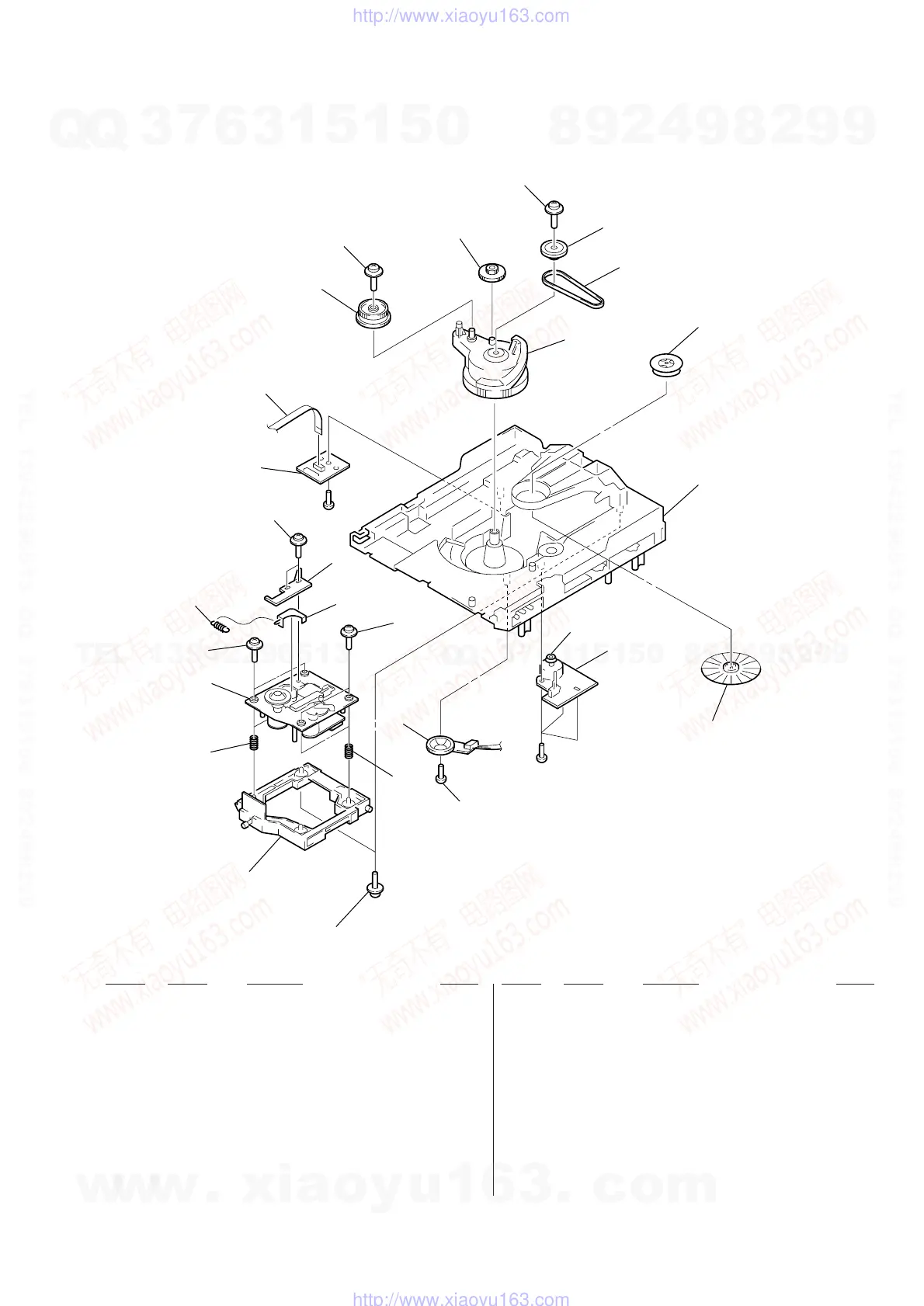

(5) CD MECHANISM DECK SECTION-2
(CDM38L-5BD21AL)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 4-917-583-71 BRACKET, YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-667-1 CAM ASSY, BU
257 1-452-925-11 MAGNET ASSY
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
* 259 1-658-575-11 CONNECTOR BOARD
* 260 X-4946-668-1 CHASSIS (CDM) ASSY
261 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
* 262 1-658-578-11 MOTOR (SLIDE) BOARD
263 4-982-447-01 SPRING (BU), COMPRESSION
264 4-951-620-41 SCREW (2.6), +BVTP
* 265 X-4946-666-1 HOLDER (BU) ASSY
266 4-989-494-01 SCREW (SLIDER), STEP
267 4-989-492-11 SLIDER (38)
268 4-989-819-02 SPRING, TENSION
269 4-989-491-11 COVER, LENS
270 4-994-963-01 PULLEY (LBT), PRESS
M801 A-4672-004-A MOTOR ASSY (SLIDE)
S811 1-473-335-11 ENCODER, ROTARY (BU, TRAY ADDRESS DET)
#4
#4
M801
S811
BU-5BD21AL
260
259
266
268
262
270
264
265
251
263
263
261
261
269
267
251
253
251
254
258
252
255
256
257
