SECTION 7
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

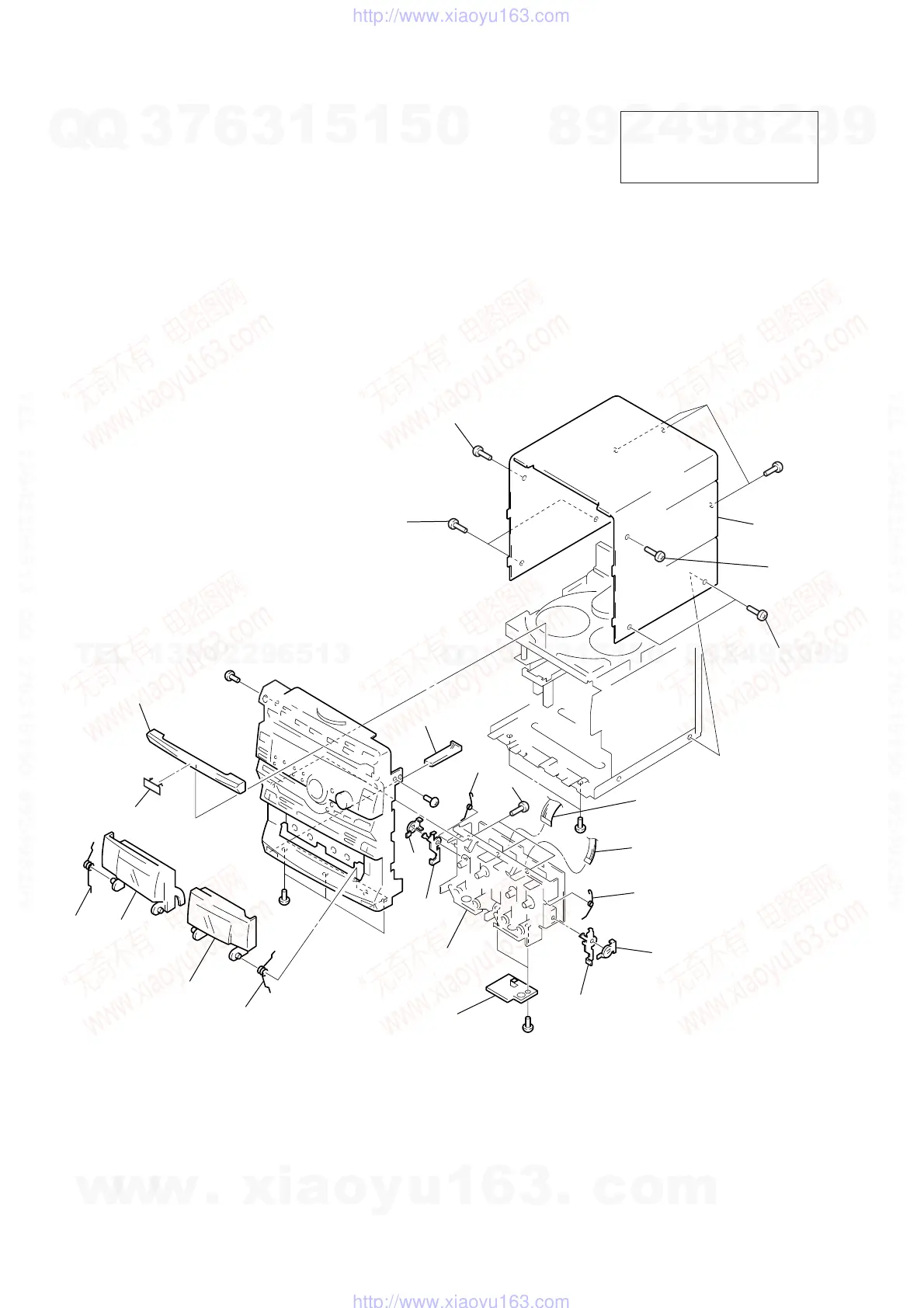

(1) CASE, MD ASS’Y SECTION
12
11
12
13
11
8
9
1
2
3
6
5
4
10
14
15
16
17
18
19
17
#1
#4
TCM-220WR2
not supplied
#1
#1
#2
#2
• Abbreviation
CH : Chinese IA : Indonesia TH : Thai
EA : Saudi Arabia MY: Malaysia TW : Taiwan
HK : Hong Kong SP : Singapore
