Note: Follow the disassembly procedure in the numerical order given.

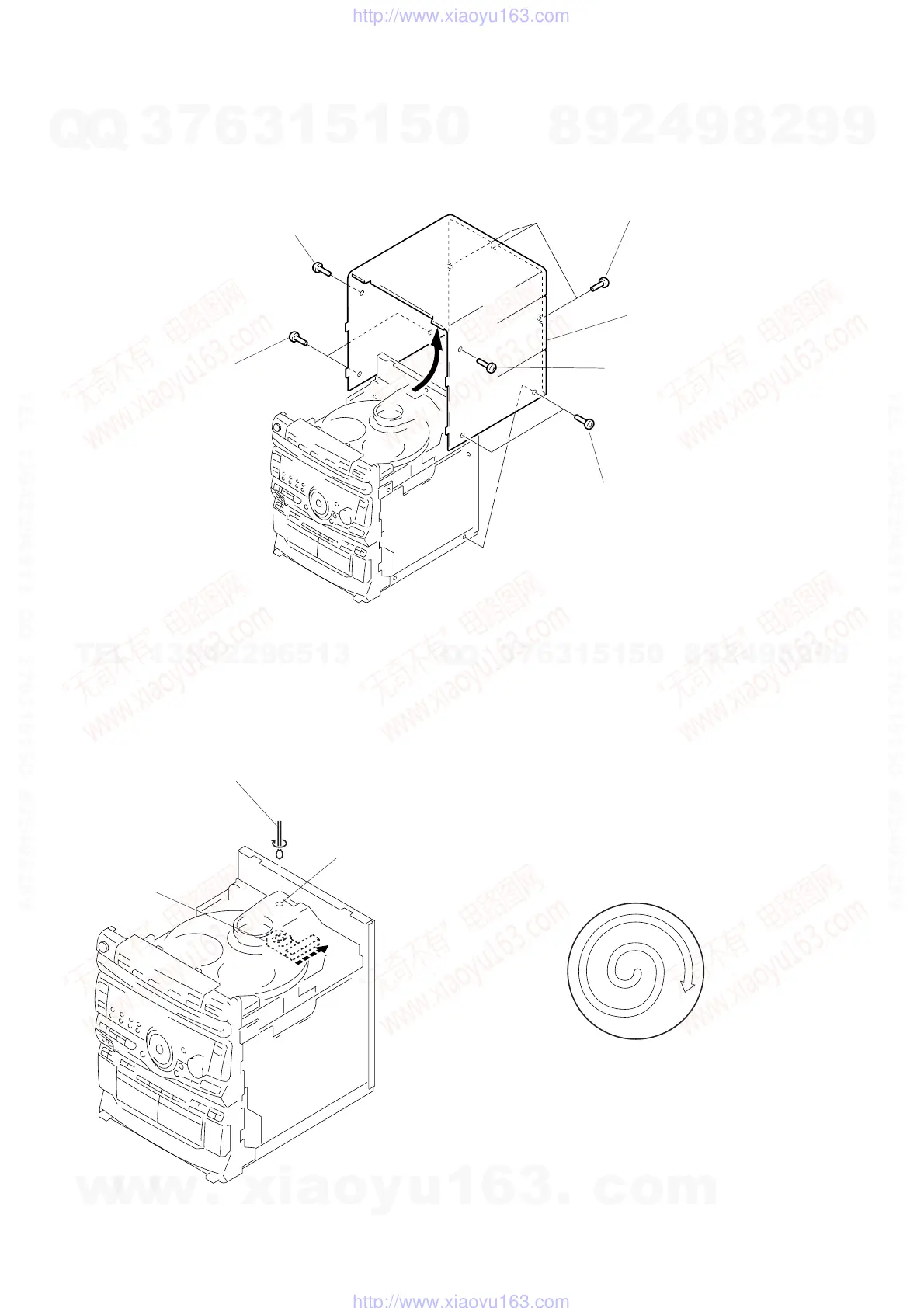

CASE
3
three screws
(BVTT 3
×
8)
4
Remove the case to
direction of the arrow.
2
screw
(case 3 TP2)
(3
×
10)
1
two screws
(case 3 TP2)
(3
×
8)
2
screw (case 3 TP2)
(3
×
10)
1
two screws
(case 3 TP2)
(3
×
8)
OPTICAL PICK-UP CLEANING
1
In sled servo mode (see page
16), slide the optical pick-up a
little in arrow direction.
2
Insert an applicator into a hole
of the chucking arm and clean
the lens.
hole
Note 1: In cleaning the lens, do not apply an excessive force.
As the optical pick-up is vulnerable, application of
excessive force could damage the lens holder.
Note 2: In cleaning, do not use a cleaner other than exclusive
cleaning liquid (KK-91 or isopropyl alcohol).
Note 3: Wipe the objective lens spirally from center toward
outside. (See Figure A)
(Figure A)
