Sony HCD-VX8J - Schematic Diagram - Main (1;4) Section

Sony HCD-VX8J
84 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HCD-VX8/VX8J
– 51 – – 52 –
(Page 43)
(Page 70)
(Page 70)
(Page 55)
(Page 76)
(Page 56)
(Page 57)
(Page
53)
(Page
53)

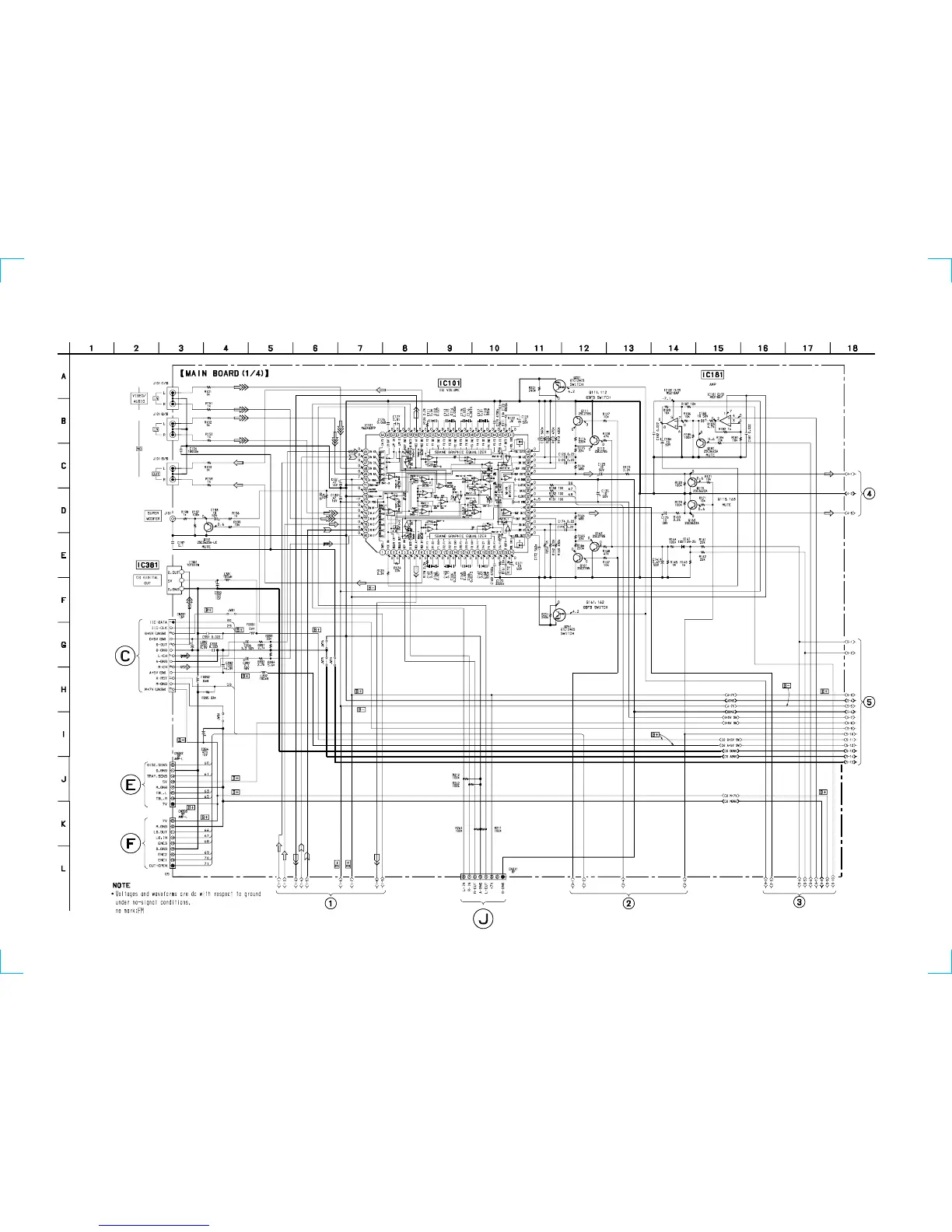

8-12. SCHEMATIC DIAGRAM – MAIN (1/4) SECTION –
