Sony HCD-XB66 - Location of Controls (Front Panel)

– 4 –
1 I /u (Power) button
2 DISPLAY/DEMO button
3 FILE (1-5) indicator
4 Fluorescent indicator tube
5 TUNER MEMORY button
6 TUNING MODE button
7 TUNER/BAND button and indicator
8 STEREO/MONO button
9 FUNCTION button
!º SUPER WOOFER button and indicator
!¡ H SPEED DUB button
!™ CD SYNC button
!£ § EJECT button (DECK B)
!¢ ) button (CD)
!∞ ≠ AMS ± jog dial
!§ t/CLOCK SET button
!¶ REC button
!• PHONES jack
!ª GEQ (4/(/$/9) switch
@º § EJECT button (DECK A)
@¡ DIRECT PLAY (DISC 1 to DISC 5) button
@™ Cassette holder
@£ CD lid
@¢ EFFECT button and indicator
@∞ 0 button (CD)
@§ DAILY 1 button
@¶ DAILY 2 button
@• SPECTRUM ANALYZER button
@ª MUSIC/OTHERS/P FILE indicator
#º ENTER/NEXT button and indicator
#¡ TUNING (–) button
#™ TUNING (+) button
#£ GROOVE button and indicator
#¢ VOLUME control knob
#∞ SUPER W MODE button
#§ 6 OPEN button (CD)
#¶ · button and indicator (CD)
#• REPEAT button
#ª SLEEP button
$º MIX MIC jack
$¡ MIC LEVEL control knob
$™ KARAOKE PON/MPX button
$£ NON-STOP button and indicator
$¢ LOOP button
$∞ FLASH button
$§ ENTER button and indicator
$¶ EDIT button
$• 1/ALL DISCS button
$ª PLAY MODE button
!•
!ª
@¡
8

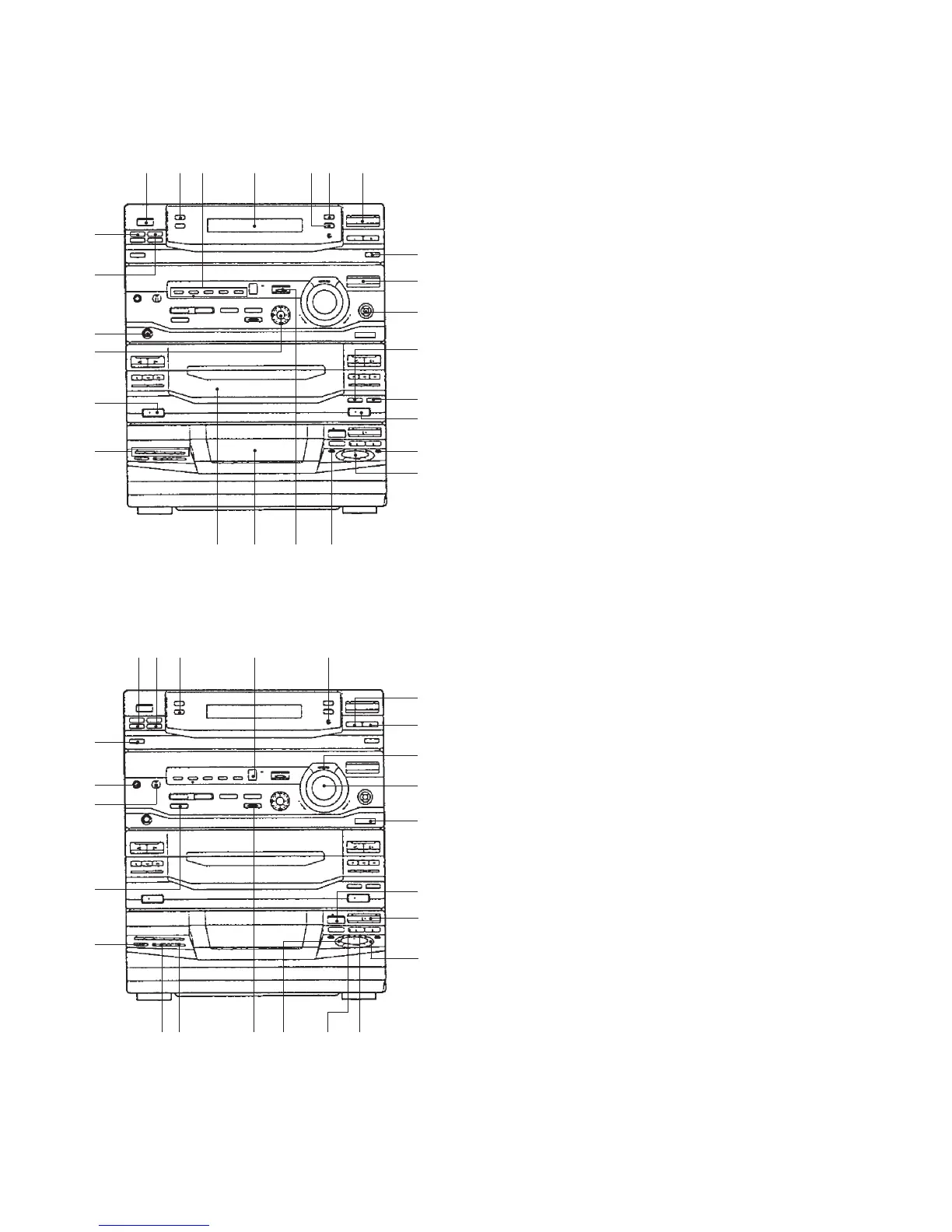

LOCATION OF CONTROLS
– Front Panel –
1 2 43 5 6 7
9
0
!¡
!™
!£
!¢
!∞
!¶
!§
@º
@™ @£ @¢ @∞
@§ @¶ @• @ª #º
#¡
#™
#£
#¢
#∞
#§
#¶
#•
#ª
$º
$¡
$™
$£
$∞$¢ $§ $¶ $• $ª
SECTION 2
GENERAL
