Sony HCD-XB66 - Case and Rear Panel

– 7 –

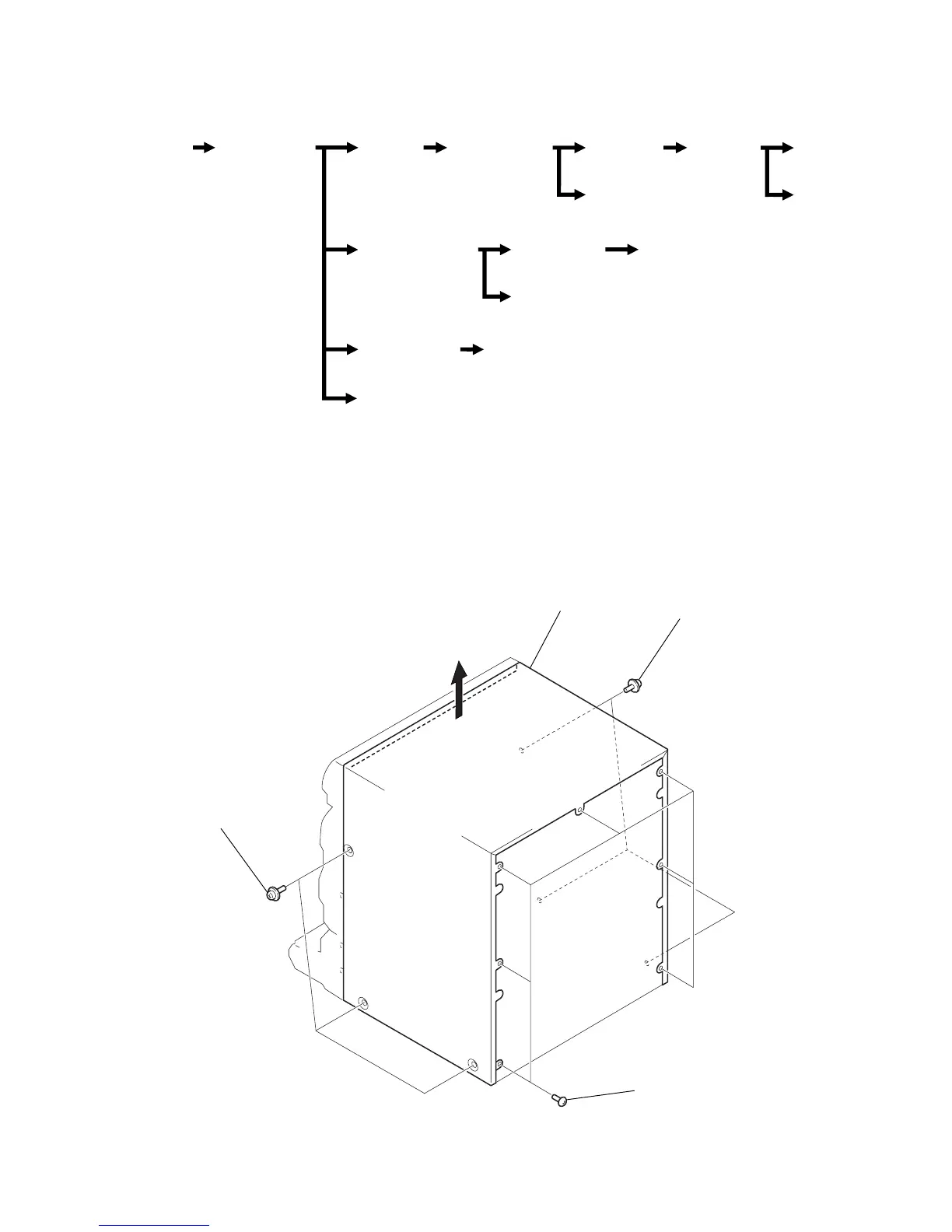

CASE
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
MAIN BOARD
(
Pa
g
e 8
)
CD LID ASS’Y
SECTION
(Page 11)
TAPE MECHANISM
DECK SECTION
(Page 10)
MAIN
SECTION
(Page 9)
AUDIO BOARD
(Page 14)
CASSETTE
LID ASS’Y
(Page 10)
CD MECHANISM
DECK SECTION
(Page 9)
DISC TABLE
(Page 12)
BASE UNIT
(Page 12)
BD BOARD
(Page 13)
PANEL (A)/(B)
SUB ASS’Y
(Page 11)
CAPSTAN MOTOR (M1)
(Page 14)
OPTICAL
PICK-UP
(Page 13)
SLED
MOTOR
(Page 13)
FRONT PANEL
SECTION
(Page 8)
CASE
(Page 7)
3 case
1 three screw
s
(case 3TP2)
1 three screws
(case 3 TP2)
2 seven screws
(BATT3 × 6)
