– 8 –

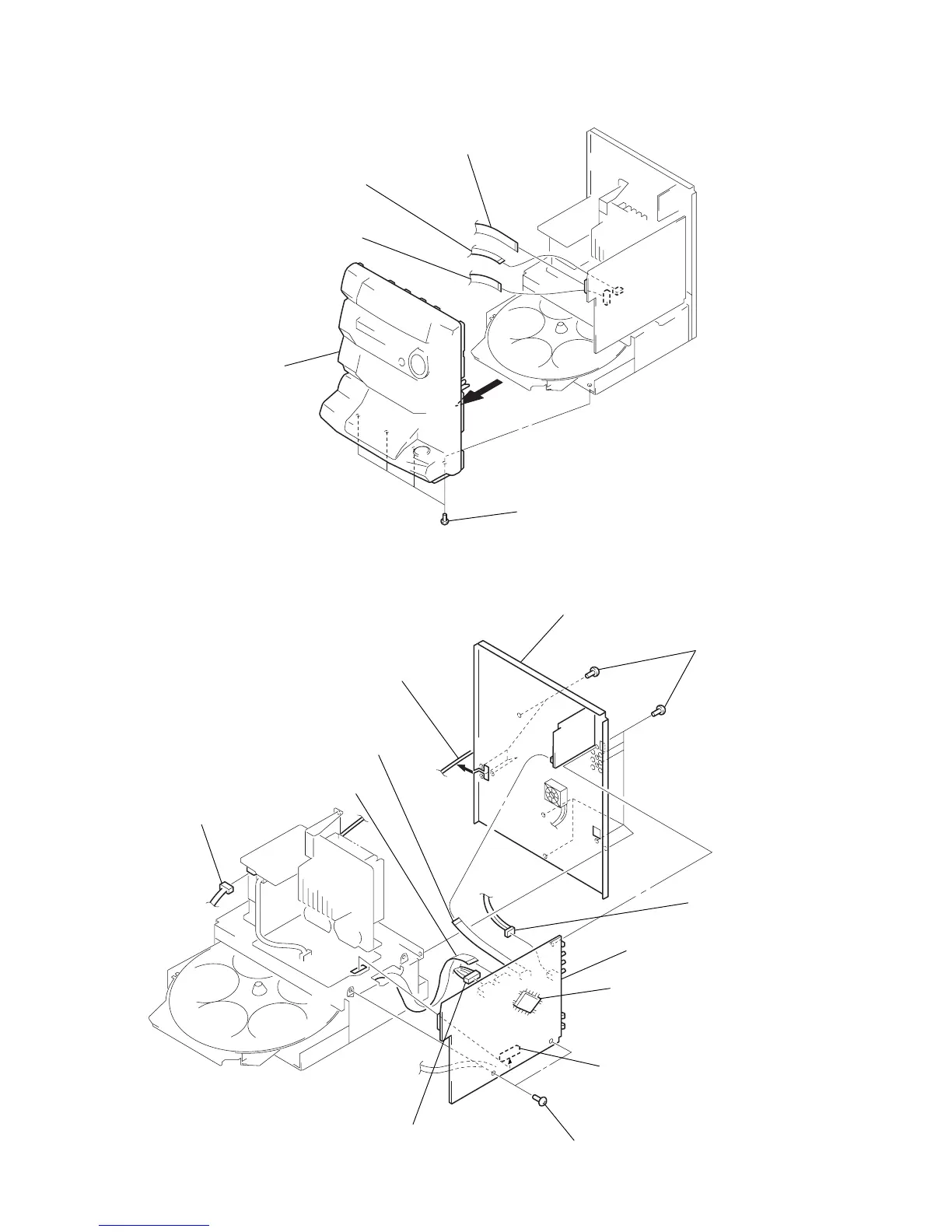

FRONT PANEL SECTION
MAIN BOARD
2 four screws
(BVTP3
× 8)
3 front panel section
1 wire (flat type) (17 core)
(CN102)
1 wire (flat type) (11 core)
(CN206)
1 wire (flat type) (21 core)
(CN205)
4 eleven screw
s
(BVTP3 × 8)
6 back panel
5 power cord
1 wire (flat type)
(13 core) (CN201)
1 wire (flat type)
(19 core) (CN202)
3 connector
(CN901)
2 connector
(CN203)
8 two screws
(BVTP3
× 8)
9 connector
(CN101)
IC201
0 MAIN board
7 connector
(CN105)
