HCD-SHAKE10/SHAKE30/HCDSHAKEX10/HCDSHAKEX30/HCDSHAKEX70
9

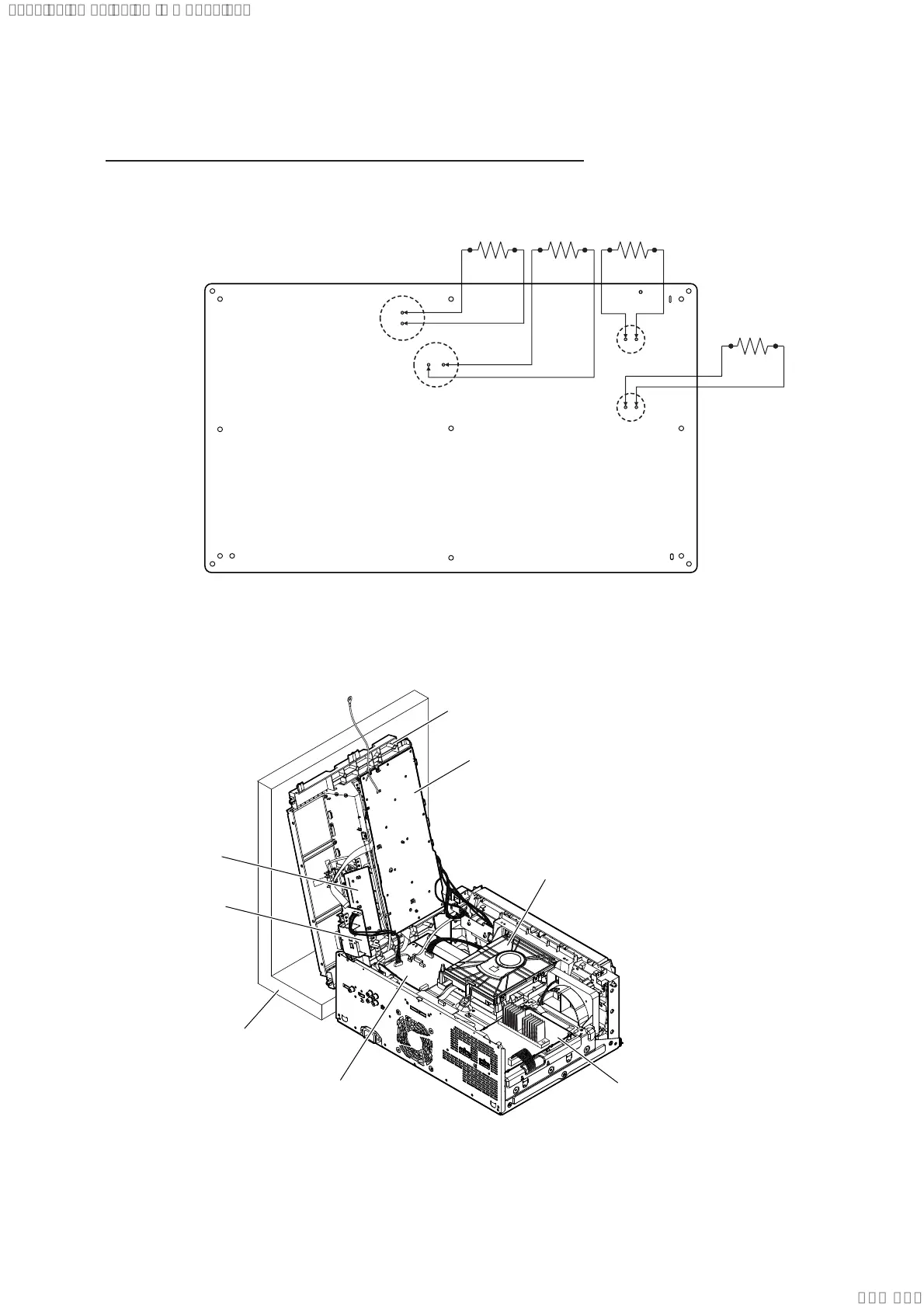

CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION
Switching Regulator (SSN-171AD) Board (Conductor side view) (HCDSHAKEX70)
In checking the Switching Regulator (SSN-171AD) board, make 4 capacitors discharge of C18, C20, C27 and C28 for eletrical shock
prevention.
SERVICE POSITION
800 :/5
W
R
R
800 :/5 W
C28
R
800 :/5 W
R
800 :/5 W
C27
C18
C20
TOP PANEL board
CDM90-DVBU204//M
2CH DAMP board
(SHAKE10/SHAKE30/
HCDSHAKEX10/HCDSHAKEX30)
4CH DAMP board (HCDSHAKEX70)
MOTHERBOARD board
stand
MIC board
FL board
panel, top assy
SYSSET
