HCD-IS10
MAIN BOARD SERVICE POSITION
• In checking the MAIN board, prepare three extension jigs (J-2501-086-A: 19 cores, 300 mm/J-2501-244-A: 21 cores, 300 mm/
J-2501-102-A: 13 cores, 300 mm).

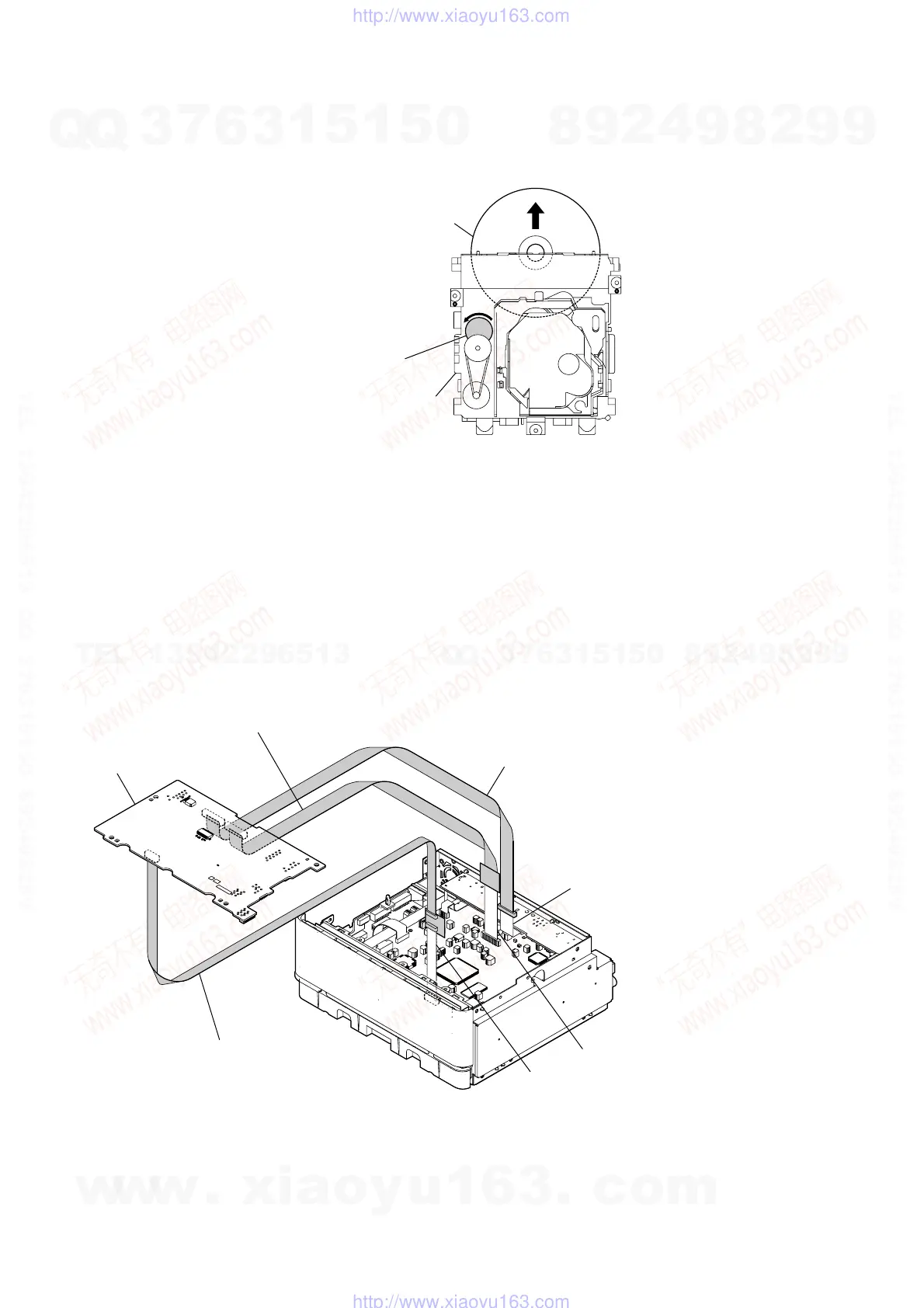

HOW TO EJECT THE DISC WHEN POWER SWITCH TURNS OFF
Turn the gear (IDL-B)
to the direction of the arrow.
DVD mechanism deck
disc
– Bottom view –
Connect jig (extension cable J-2501-086-A)
to the MAIN board (CN105) and wire (flat type) (19core).
wire (flat type) (19 core)
wire (flat type) (13 core)
Connect jig (extension cable J-2501-244-A)
to the MAIN board (CN103) and wire (flat type) (21core).
wire (flat type) (21 core)
Connect jig (extension cable J-2501-102-A)
to the MAIN board (CN106) and wire (flat type) (13 core)
