Sony HDC1550 - 1-2. Exploded Views; 1-2-1. HDC1000;1100

1-3
HDC1000/V2 (J, E)

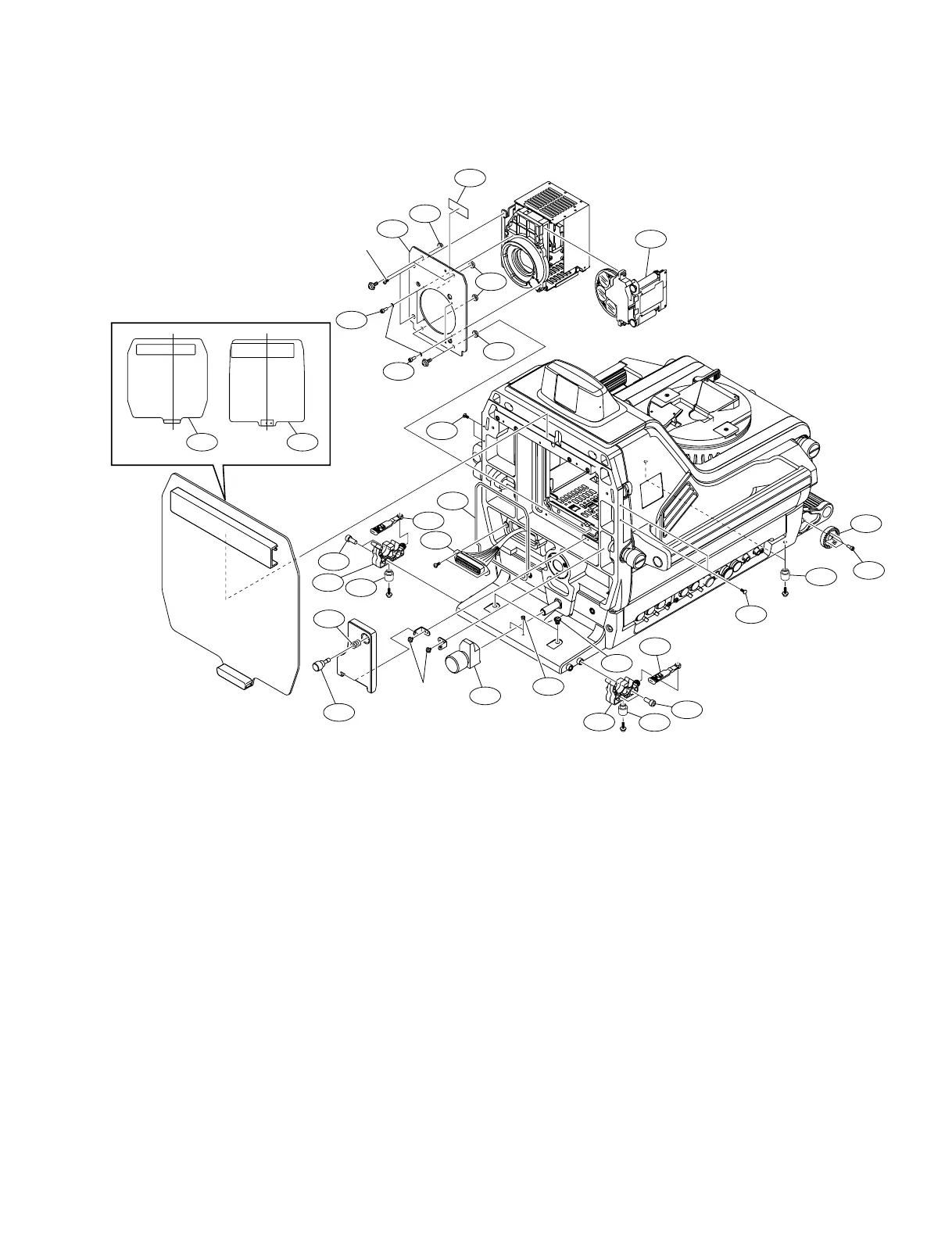

Front Block (HDC1000/1100)
1-2. Exploded Views
1-2-1. HDC1000/1100
No. Part No. SP Description
1 3-992-431-01 s COVER, FRONT
2 A-8278-526-E s COVER ASSY,FRONT(H1)
3 X-3692-305-1 o RETAINER ASSY,LENS
4 1-788-329-11 s DISK UNIT, FILTER
5 2-280-511-12 o BRACKET,ADJUSTMENT ANGLE
6 2-391-520-21 s BOLT (M5X12),HOLE, HEXAGON(ST)
7 2-623-773-11 s BOLT (M3X8),STAINLESS
8 3-992-867-01 s FOOT, FRONT (ABS)
9 3-545-657-11 s BUSHING(BLACK) (PLA)
10 3-612-710-02 o CLAMP,CABLE
11 3-612-712-01 s BAND,CLAMP
12 3-615-750-62 s SHIELD CUSHION(C)
13 3-627-269-02 o SHEET,HEAT CONDUCTION(OHB)
14 3-627-897-02 s PANEL,FRONT
15 3-657-657-00 s SCREW (M5)
No. Part No. SP Description
16 3-673-018-00 s SCREW,BLIND (PLA) (WHITE)
3-673-018-11 s SCREW, BLIND (PLA) (BLACK)
17 3-701-440-21 s WASHER PLASTIC (3.5X6X0.5)
18 3-725-907-01 s BUSHING,BLIND
19 4-866-663-01 s SPRING,COMPRESSION
20 1-963-954-11 s SUB HARNESS(LENS)
7-621-773-95 s SCREW +B2.6X6(EP-FE/ZNBK/CM2)
7-623-208-22 s SPRING WASHER (3MM)
7-682-247-04 s SCREW +K 3X6
7-682-548-04 s SCREW +B3X8
7-682-903-01 s SCREW +PWH 3X5
7-682-904-21 s SCREW +PWH 4X10
7-682-951-01 s SCREW +PSW 3X14
B3 x 8
PSW3 x 14
PWH3 x 5
PWH4 x 10
B2.6 x 6
SW3,
TYPE2
PWH4 x 10
17
13
14
7
21
7
17
4
16
6
10
15
19
10
18
9
12
11
20
11
17
6
16
8
3
8
5
7
8
PSW3 x 14
PSW3 x 14
