Sony HDC1550 - CN-2607; CN-2608; CN-2609

5-10
HDC1000/V2 (J, E)
5-10

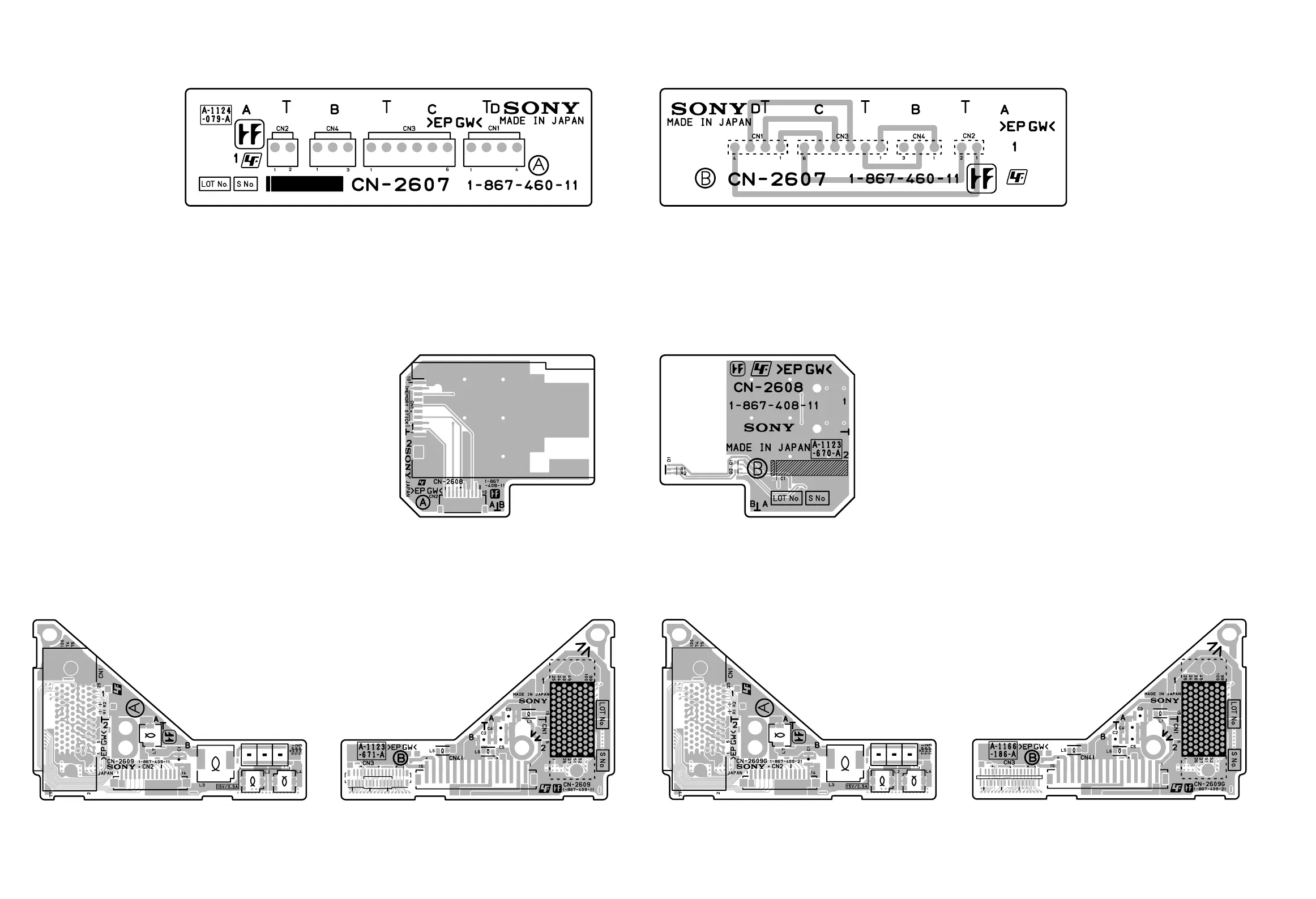

CN-2607, CN-2608, CN-2609CN-2607, CN-2608, CN-2609
CN-2608 -A SIDE-
SUFFIX: -11, 31
CN-2608 -B SIDE-
SUFFIX: -11, 31
CN-2607 -A SIDE-
SUFFIX: -11, 31
CN-2607 -B SIDE-
SUFFIX: -11, 31
CN1 CN2 CN3 CN4
CN1
CN2
C1
D1
Q1
Q2
R1
R2
—————————————————————————
CN-2608 (1-867-408-11,31)
—————————————————————————
C1 *A2
CN1 B1
CN2 A2
D1 *B2
Q1 *B2
Q2 *B2
R1 *B2
R2 *B2
*:B SIDE
CN-2609 -A SIDE-
SUFFIX: -21, 31
CN-2609 -B SIDE-
SUFFIX: -21, 31
C1
CN1
CN2
L2
L3
L4
L7
R1 R2
THP1 THP2 THP3
C2
C3
C4
C5
CN3
CN4
L1
L5
L6
CN-2609 -A SIDE-
SUFFIX: -11
CN-2609 -B SIDE-
SUFFIX: -11
C1
CN1
CN2
L2
L3
L4
L7
R1 R2
THP1
THP2
THP3
C2
C3
C4
C5
CN3
CN4
L1
L5
L6
