HDC1000/V2 (J, E)
Intercom Panel Block (HDC1400/1450/1500/1550/1580/1600)
No. Part No. SP Description
1701
!
A-1099-129-A s MOUNTED CIRCUIT BOARD, SW-1241 (HDC1400(UC, J)/1450(UC)/1500(SY,J)/1550(UC)/1600(J))
!
A-1166-843-A s MOUNTED CIRCUIT BOARD, SW-1241B (HDC1400(CE, E)/1450(CE)/1500(CE, E)/1550(CE)/1580(CN))
1702
!
*
A-1159-986-A s MOUNTED CIRCUIT BOARD, SW-1273G (GOLD)
!
*
A-1099-356-A s MOUNTED CIRCUIT BOARD, SW-1273 (SILVER)
1703 X-3604-579-2 s VOLUME KNOB ASSY
1704 1-238-294-11 s RESISTOR, VAR,CARBON 100K
1705 1-570-608-11 s SWITCH,TOGGLE
1706 1-570-985-11 s SWITCH,TOGGLE
1707 1-786-887-11 s SWITCH,ROTARY
1708
*
1-831-661-11 s CABLE, FLEXIBLE FLAT (36 CORE) (GOLD) (HDC1400/1450/1500/1550/1580/1600)
*
1-830-482-11 s CABLE, FLEXIBLE FLAT (36 CORE) (SILVER) (HDC1500/1550/1600)
1709 3-676-244-21 s COVER,SWITCH
1710 3-685-104-01 s NUT(M6),CONTROL (STEEL)
1711 3-869-842-01 s CAP,SW
1712 3-872-595-02 s SHEET,BORON
1713 3-872-599-04 s SHEET,REAR UPPER
1714 3-872-618-01 s SHEET,BORON(RET SELECT)
1715 3-872-637-05 s PANEL,INCOM
1716 3-903-660-01 s DROP PROTECTION,TOGGLE
1717 3-986-536-01 s SHEET,BORON(MIC SW)
1718 4-654-273-02 s ACE (M2), LOCK
1719 3-903-659-02 s KNOB RET SELECT
7-621-772-20 s SCREW +B 2X5
7-627-556-58 s SCREW,PRECISION +P2.6X5
*
:
*

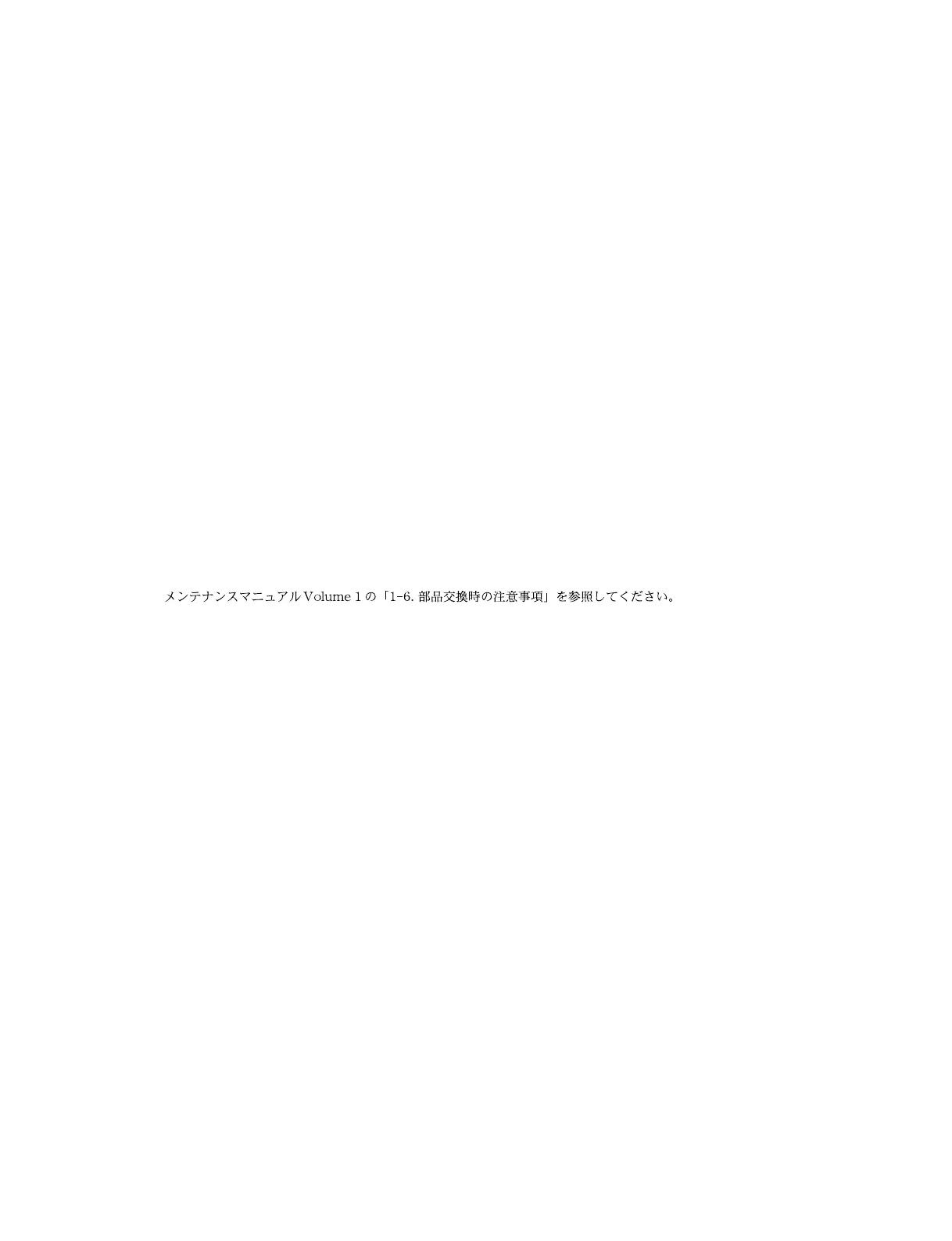

: Refer to Section 1-6. “Notes for Replacing Parts” of the Maintenance Manual volume 1.
