Sony HDC1550 - Page 488

5-18 (a)
HDC1000/V2 (J, E)
5-18 (a)
DR-528DR-528

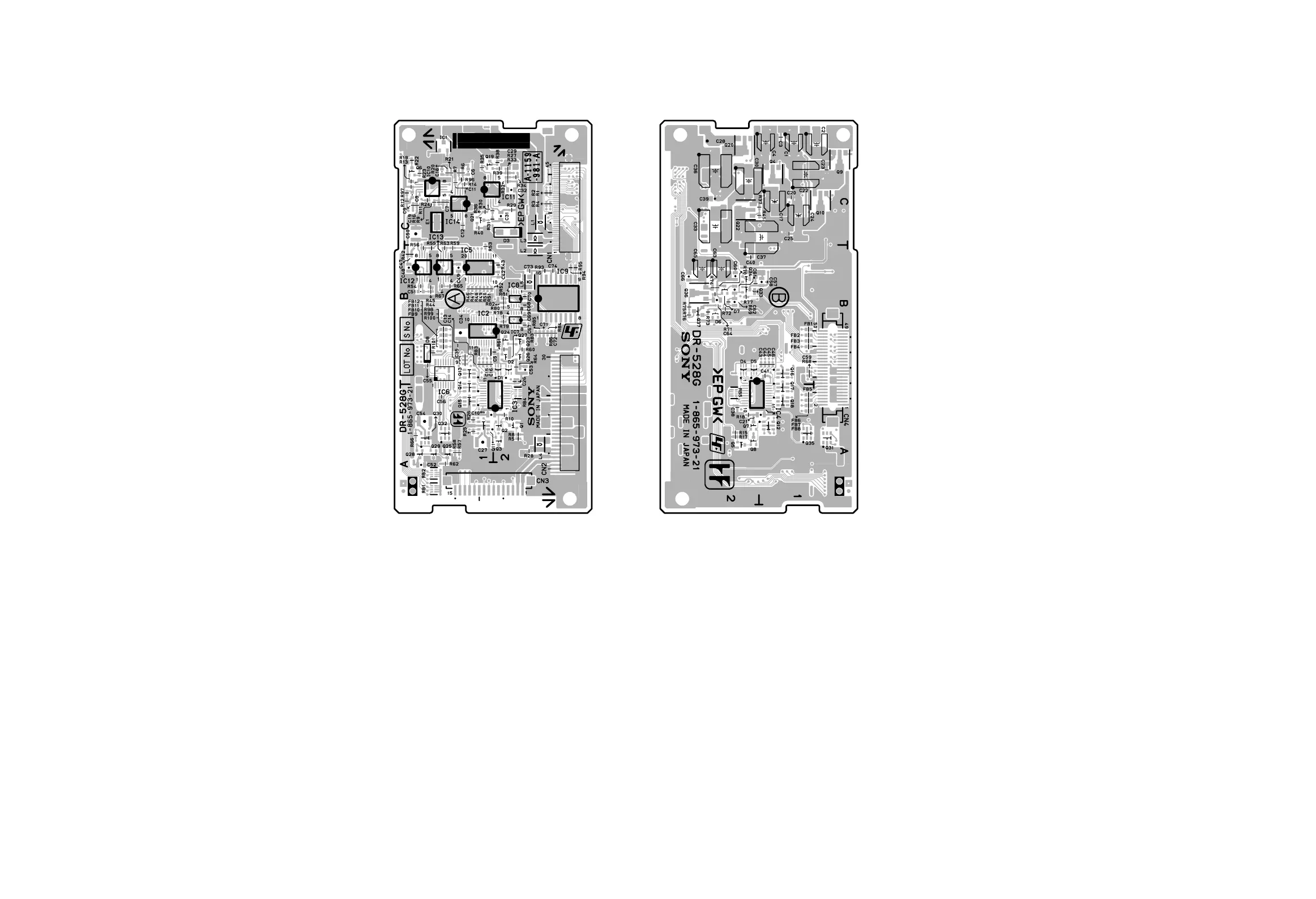

DR-528 -A SIDE-
SUFFIX: -21
DR-528 -B SIDE-
SUFFIX: -21
C1 * C1
C2 * C1
C3 * C1
C4 * C1
C5 B2
C6 C1
C7 C1
C8 C1
C9 C1
C10 A1
C11 C1
C12 C1
C13 B1
C14 B1
C15 B1
C16 B1
C17 * C1
C18 C1
C19 C1
C20 * C1
C21 * A1
C22 * C1
C23 * C1
C24 * C1
C25 * C1
C26 B2
C27 A1
C28 * C2
C29 C2
C30 * C2
C31 C2
C32 C2
C33 * C2
C34 B1
C35 B1
C36 * C2
C37 * C1
C38 * A2
C39 * C2
C40 * B2
C41 * B1
C42 B2
C43 * B1
C44 * B1
C45 * B1
C46 * B1
C47 B1
C48 B1
C49 B1
C50 C1
C51 B1
C52 A1
C53 B2
C54 A1
C55 B1
C56 A1
C57 * B1
C58 * B2
C59 * B1
C60 * B2
C61 * B2
C62 * B2
C63 * B2
C64 * B2
C65 * B2
C66 * B2
C67 B2
C68 B2
C69 B2
C70 B2
C71 B2
C72 B2
C73 B2
C74 B2
CN1 C2
CN2 A2
CN3 A1
CN4 *B1
D1 B2
D2 B2
D3 C2
D4 * B2
D5 * B2
D6 * B2
D7 * B2
D8 B1
E1 C1
FB1 *B1
FB2 *B1
FB3 *B1
FB4 *B1
FB5 *A1
FB6 *A1
FB7 *A1
FB8 *A1
FB9 B1
FB10 B1
FB11 B1
FB12 B1
IC1 C1
IC2 B1
IC3 A2
IC4 *A2
IC5 B1
IC6 B1
IC7 B2
IC8 B2
IC9 B2
IC10 C1
IC11 C1
IC12 B1
IC13 B1
IC14 C1
L1 C2
L2 B2
L3 C2
L4 A2
L5 B2
Q1 A2
Q2 A2
Q3 A2
Q4 * C1
Q5 * A2
Q6 C1
Q7 * A2
Q8 * A2
Q9 * C1
Q10 *C1
Q11 A1
Q12 *A1
Q13 B1
Q14 A1
Q15 A1
Q16 * B1
Q17 * A1
Q18 * A1
Q19 C1
Q20 * C2
Q21 C1
Q22 * C2
Q23 B2
Q24 B2
Q25 A1
Q26 B2
Q27 B2
Q28 A1
Q29 A1
Q30 A1
Q31 * A1
Q32 A1
Q33 * B2
Q34 * B2
Q35 * A1
Q36 * B2
Q37 * B2
R1 C2
R2 C2
R3 C2
R4 C2
R5 A2
R6 C1
R7 C1
R8 A2
R9 C1
R10 A2
R11 C1
R12 C1
R13 C1
R14 C1
R15 * A2
R16 C1
R17 * A2
R18 * A2
R19 C1
R20 C1
R21 C1
R22 C1
R23 C1
R24 C1
R25 A1
R26 A1
R27 C2
R28 A2
R29 C2
R30 C1
R31 C1
R32 C2
R33 C2
R34 C2
R35 C1
R36 C1
R37 * C1
R38 C2
R39 C2
R40 C1
R41 * C1
R42 B1
R43 B2
R44 B1
R45 B1
R46 B1
R47 B1
—————————————————————
DR-528 (1-865-973-21)
—————————————————————
R48 B1
R49 B1
R50 B1
R51 B1
R52 B1
R53 B1
R54 B1
R55 B1
R56 B1
R57 A1
R58 A1
R59 B1
R60 B2
R61 B2
R62 A1
R63 B1
R64 B2
R65 B1
R66 A1
R67 B1
R68 * B1
R69 * B2
R70 * B2
R71 * B2
R72 * B2
R73 * B2
R74 * B2
R75 * B2
R76 * B2
R77 * B2
R78 B2
R79 B2
R80 B2
R81 B2
R82 B2
R83 B2
R84 B2
R85 B2
R86 B2
R93 B2
R94 B2
R95 B2
R96 C1
R97 C1
R98 B1
R99 B1
R100 B1
R101 B1
RB1 A1
RB2 A1
RB3 B1
RB4 A2
RB5 * A2
*:B SIDE
