Sony HDR-FX7 - Overall Disassembly Section 1

2-2
HDR-FX7/FX7E_L2

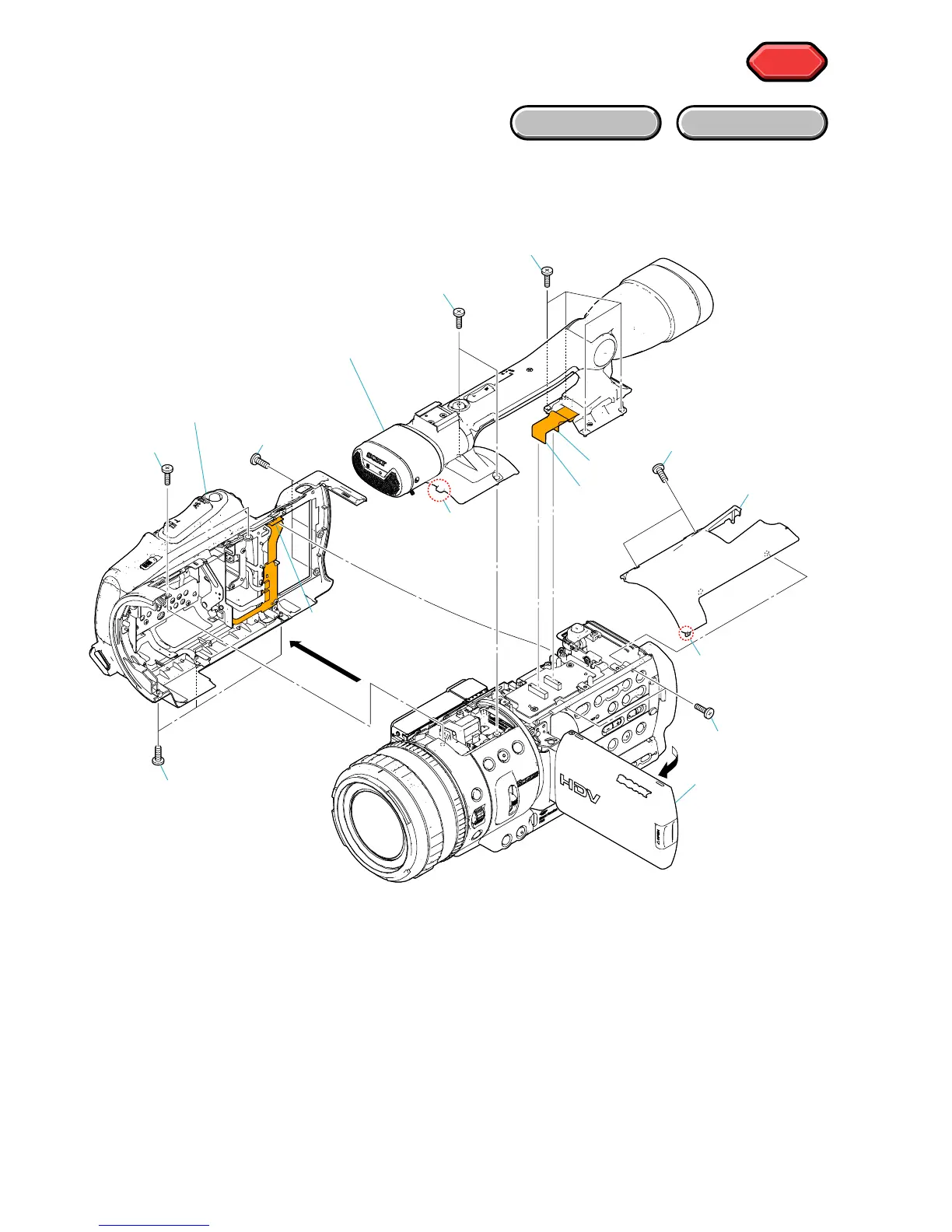

2-1. DISASSEMBLY
2-1-1. OVERALL SECTION-1
Follow the disassembly in the numerical order given.
1 Handle Section (1-1 to 1-10)
2 Cabinet (L) Section (2-1 to 2-5)
HELP
HELP
EXPLODED VIEW
HARDWARE LIST
1 Handle Section
2 Cabinet (L) Section
1-7
1-6
1-10
(Claw)
1-4 (Claw)
1-1 (#49)
1-5
1-3 (#49)
1-2
(Open the
LCD Panel)
1-8 (#49)
1-9 (#49)
2-2 (#49)
2-3 (#49)
2-5
2-4
2-1 (#49)
