Sony HDR-FX7 - Lens Section Disassembly

2-5
HDR-FX7/FX7E_L2
2-1-4. LENS SECTION
Follow the disassembly in the numerical order given.
1 Center Cassis Block (1-1 to 1-14)
2 Lens Block (2-1 to 2-8)

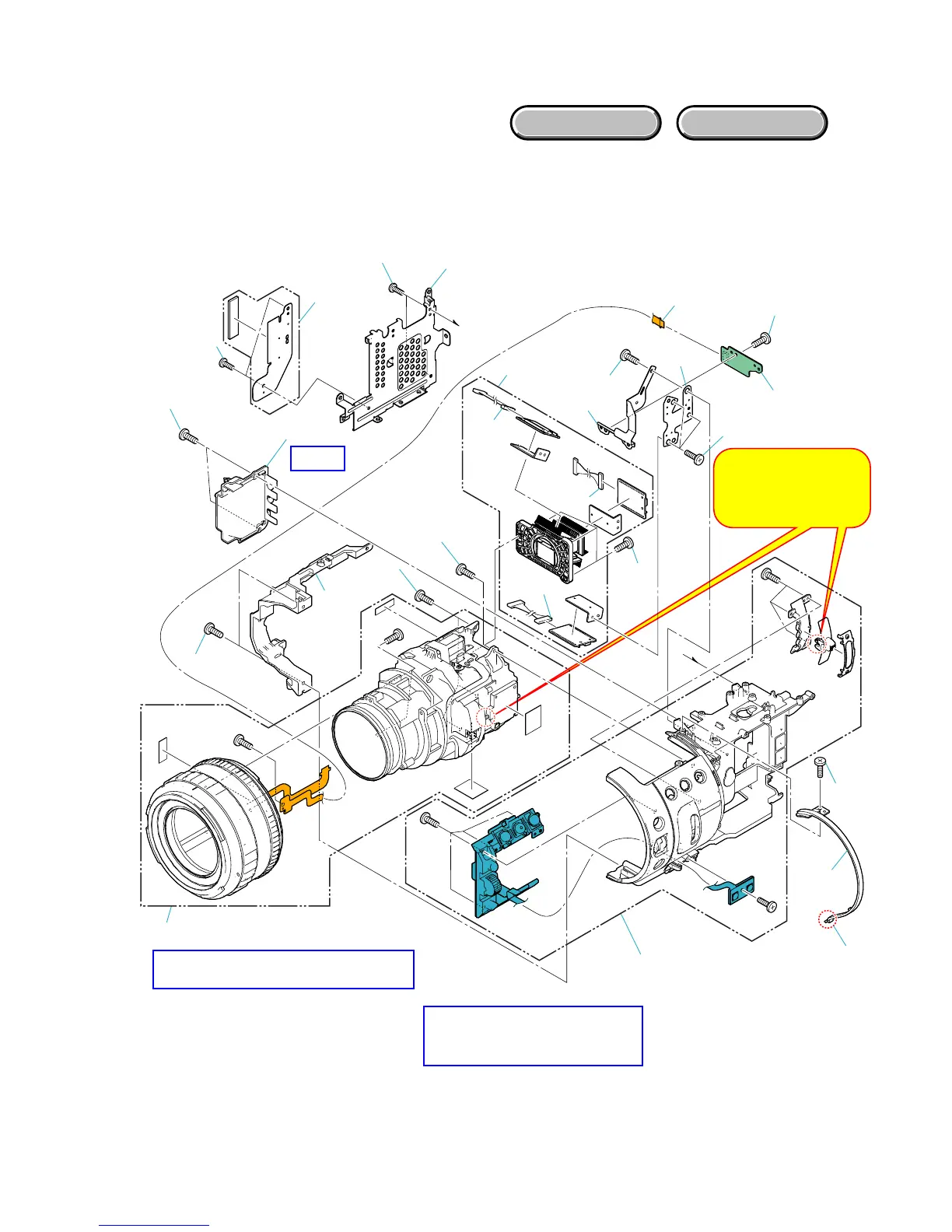

EXPLODED VIEW
HARDWARE LIST
1 Center Chassis
Block
2 Lens Block
2-4 (#54)
2-1 (#51)
2-7
(#54)
2-8
2-3
2-5
1-1 (#50)
1-9
(#50)
1-10
(Claw)
1-7 (#49)
1-3 (#50)
1-12
(#49)
1-5 (#49)
1-14
(#49)
1-13
(#49)
1-2
1-11
1-8
1-4
2-2
2-6
Note1: Refer to page 2-9 “2-2. Method
of Lens Unit Disassembly”.
1-6
HELP
Note:
On installation of the Center
Chassis Block, adjust the
position of the ND lever and
the ND knob.
Note2: Refer to page 2-1 “Note
for disconnecting the
harness (coaxial cable)”.
(Note2)
(Note2)
(Note2)
