Sony HDR-FX7 - Lens Unit Disassembly Method

2-9E
HDR-FX7/FX7E_L2

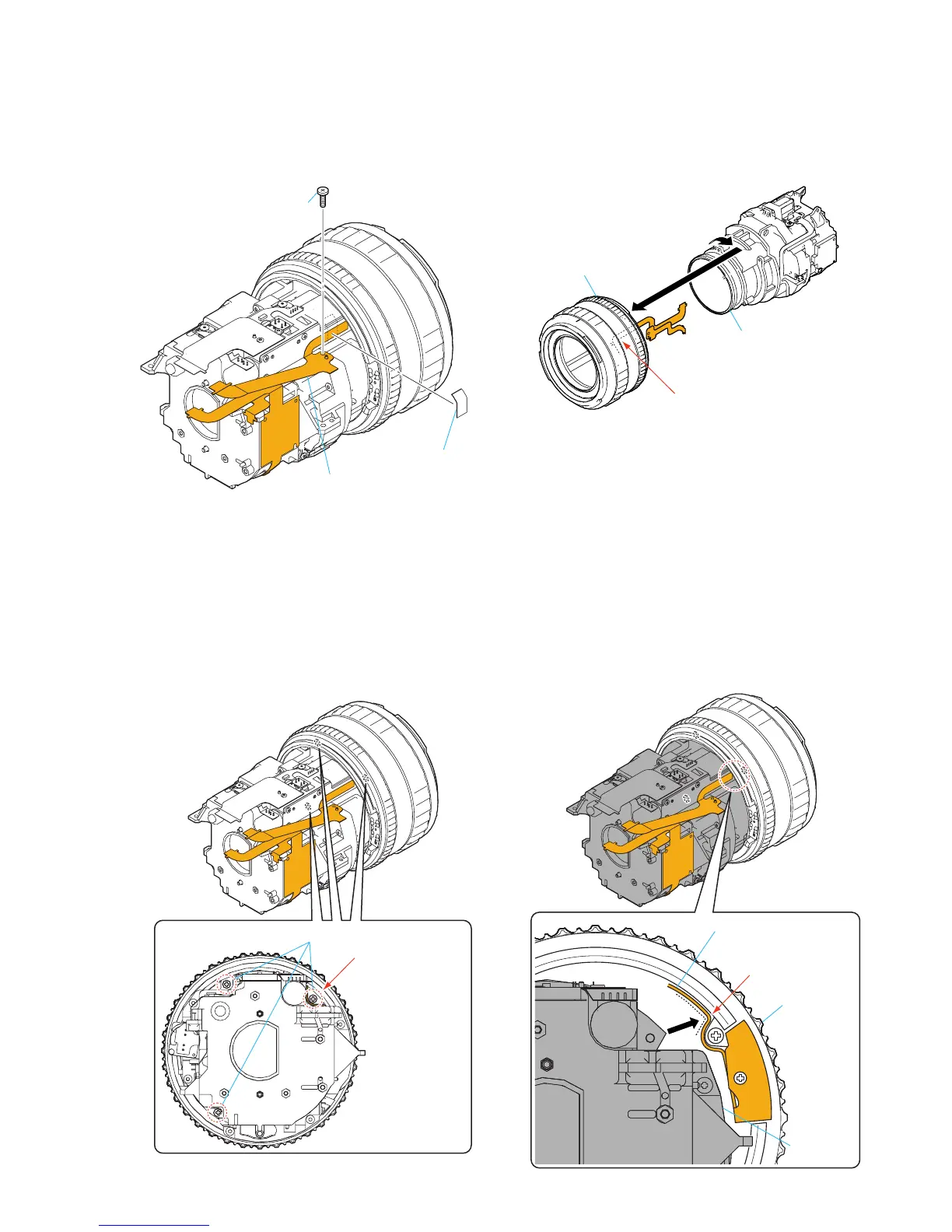

1 Remove the screw and the tape that is the fixation of Flexible
Board.
2 Remove three screws for connection.
Tape
Flexible Board
Screw
Three Screws
Do not damage
Flexible Board.
Note: Avoid Flexible Board from the Lens Unit when you install
the Lens Unit.
3 Remove after rotating the Ring Unit a little.
Lens Unit
Ring Unit
Flexible Board
Avoid Flexible Board
from the Lens Unit.
2-2. METHOD OF LENS UNIT DISASSEMBLY
Ring Unit
Lens Unit
Do not damage Flexible Board.
