Sony HDR-FX7 - Handle Section Disassembly

2-8
HDR-FX7/FX7E_L2
2-1-7. HANDLE SECTION
Follow the disassembly in the numerical order given.
1 MIC Block (1-1 to 1-10)
2 EVF Block (2-1 to 2-7)
3 GG-003 Board (3-1 to 3-6)

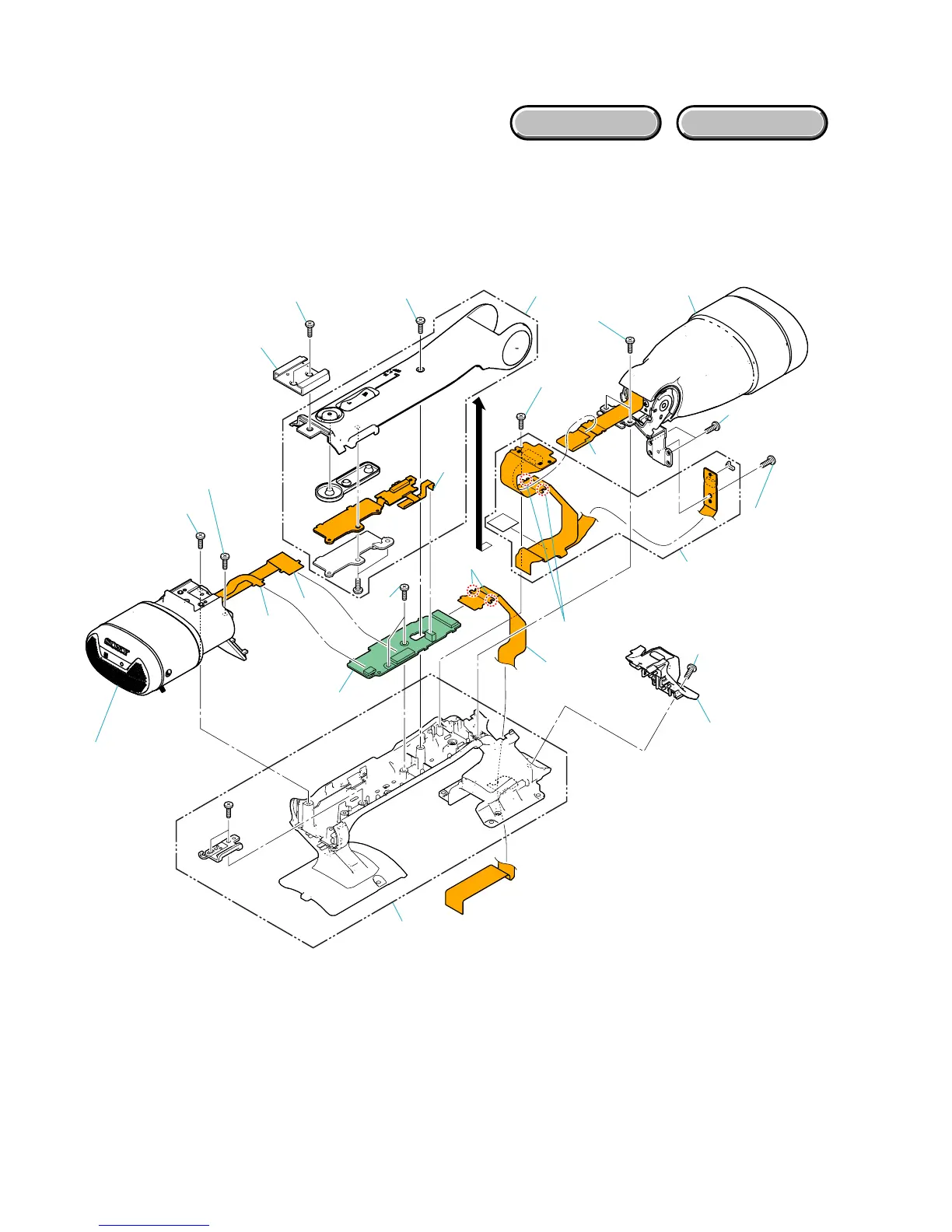

EXPLODED VIEW
HARDWARE LIST
2 EVF Block
1 MIC Block
3 GG-003
Board
1-2
1-4
1-5
1-1 (#56)
1-3 (#49)
2-1 (#49)
3-4 (Claw)
3-2
2-6
(#49)
2-4
(#50)
3-3
(#50)
2-2
3-6
3-5
1-9 (#49)
1-10 (#49)
1-8
1-7
3-1 (Claw)
1-6
2-5
2-7 (#49)
2-3 (#50)
