Sony HDR-FX7 - Left Cabinet Section Disassembly

2-7
HDR-FX7/FX7E_L2
2-1-6. CABINET (L) SECTION
Follow the disassembly in the numerical order given.
1 Switch Block Control (PL18500) (1-1 to 1-7)
2 Cabinet (L) Block (2-1 to 2-7)

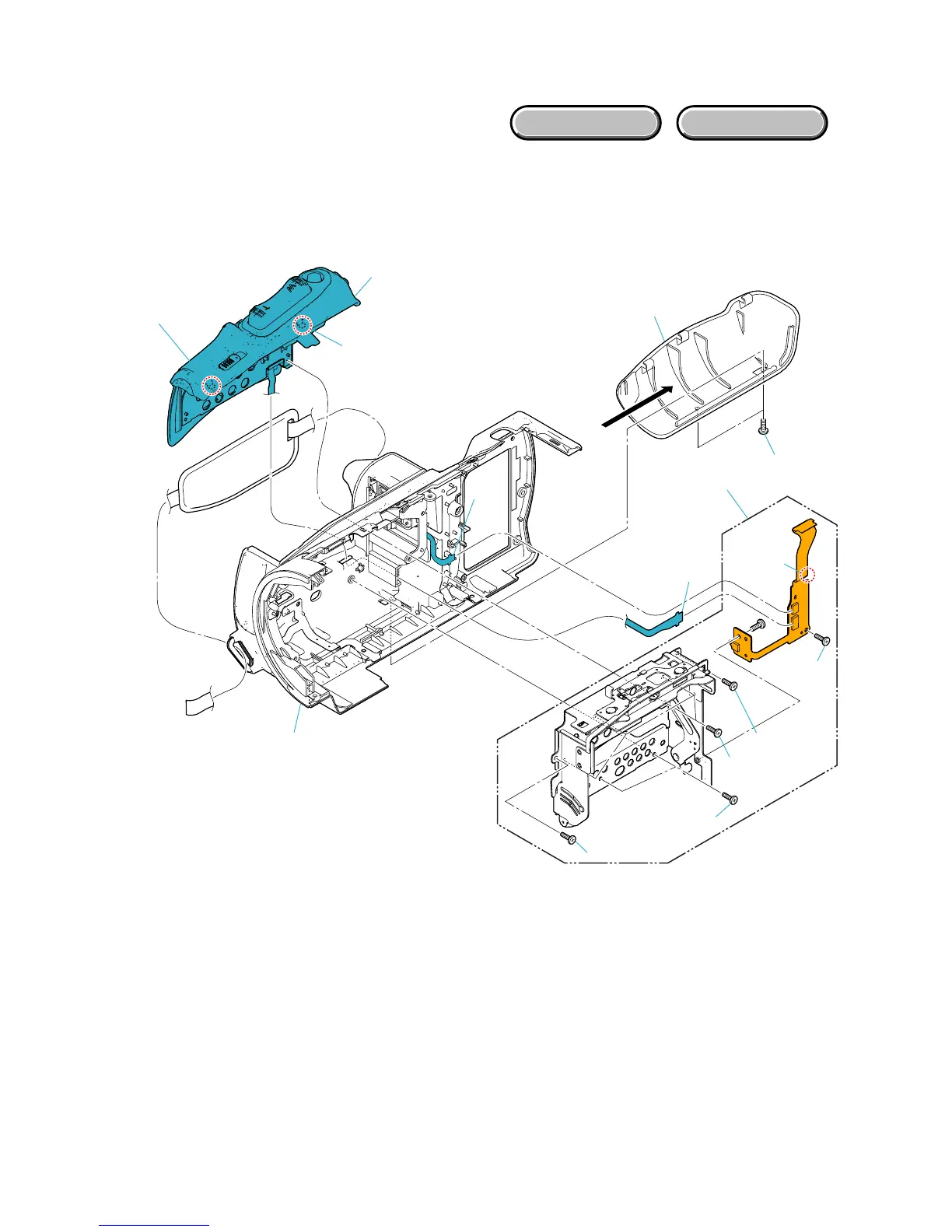

EXPLODED VIEW
HARDWARE LIST
1-4
2-1
2-7
2-3
(Claw)
1-3
1-2
2-5 (#53)
1-1 (#53)
2-6 (#53)
1-5 (#50)
2-4 (#53)
2-2 (#53)
1 Switch Block
Control (PL18500)
1-6 (Claw)
1-7 (Claw)
2 Cabinet (L) Block
