Sony HDR-FX7 - Page 78

4-62
HDR-FX7/FX7E_L2
FP-482 (1 layer), FP-483 (1 layer), FP-485 (1 layer)
: Uses unleaded solder.
FP-482, FP-483, FP-485
FP-482
XX
1-870-104
>PI<
mk OR 1
FB202FB201
J201
MIC
(PLUG IN POWER)
61
2
1
456
10
3
LND205 LND204 LND203 LND202 LND201 LND206
05
111-870-104-

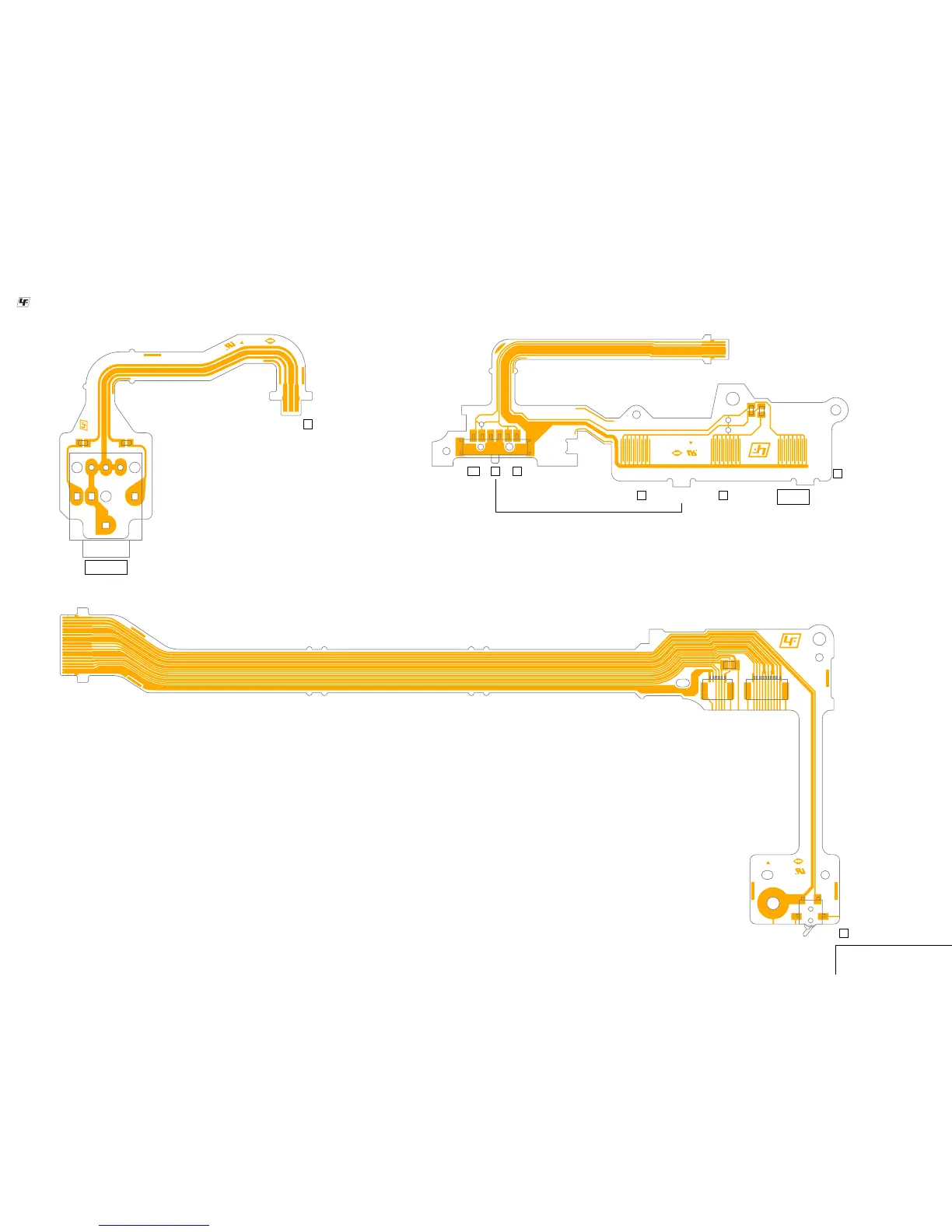

FP-482 FLEXIBLE BOARD
FP-483
1-870-105
>PI<
mk OR
2
XX
R301
R302
S303
6
1
LND301
LND310
LND311
LND312
LND313
LND308
LND309
LND302
LND303
LND304
LND305
LND306
12 5
6
3
4
7
810
9
L HtTOFF
(HANDLE ZOOM)
T
REC
START/STOP
tTW
111-870-105-
05
FP-483 FLEXIBLE BOARD
XX
1-870-107FP-485
>PI<
mk OR 1
CN502
CN501
S001
1
2
3
4
R501
(EJECT)
1
10
16
LND501
LND502
LND503
LND504
LND505
LND506
LND507
LND508
LND509
LND510
LND511
LND512
LND513
LND514
LND515
LND516
LND517
LND518
LND519
LND520
1
20
111-870-107-
05
FP-485 FLEXIBLE BOARD
