Sony HDR-SR1 - Page 15

2-2
HDR-SR1/SR1E_L2
2-1. DISASSEMBLY
2-1-1. OVERALL SECTION-1
HELP
HELP

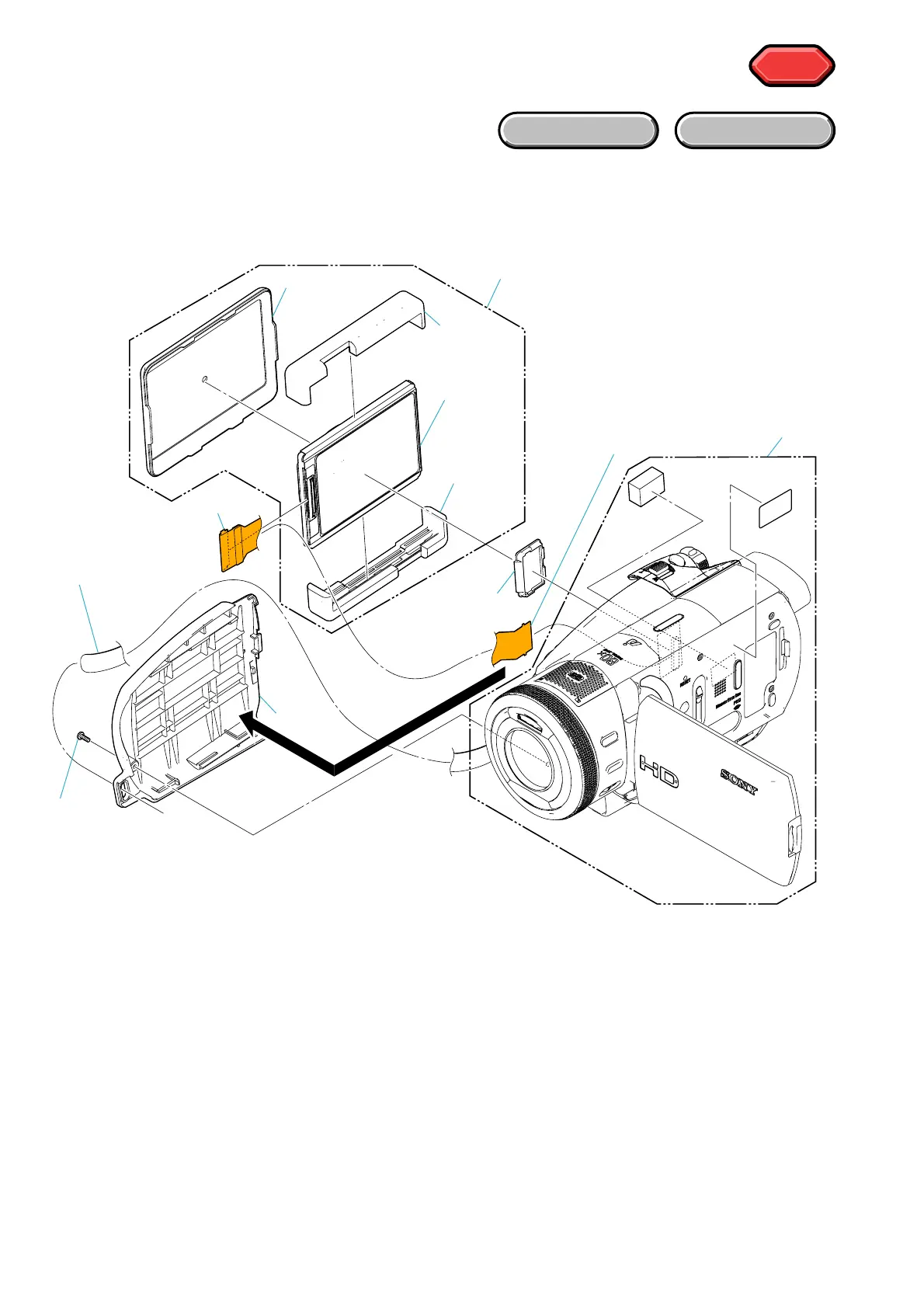

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 HDD (1-1 to 1-8)
2 FP-431 Flexible Board (2-1 to 2-2)
1 HDD
1-1
(Unfasten the belt. )
1-2
(#2)
1-5
1-3
1-6
1-4
1-8
1-7
2 FP-431
Flexible Board
2-1
2-2
