Getting Started
You can enjoy sound from the connected component on the system by connecting the DIGITAL
MEDIA PORT adapter.
Connect the AC power cord (mains lead) last.
• Do not connect or disconnect the DIGITAL MEDIA PORT adapter while the system is turned on.
• When you connect the DIGITAL MEDIA PORT adapter, be sure the connector is inserted with the arrow mark
facing toward the arrow mark on the DMPORT jack. To detach the DIGITAL MEDIA PORT adapter, press and
hold
A and then pull out the connector.

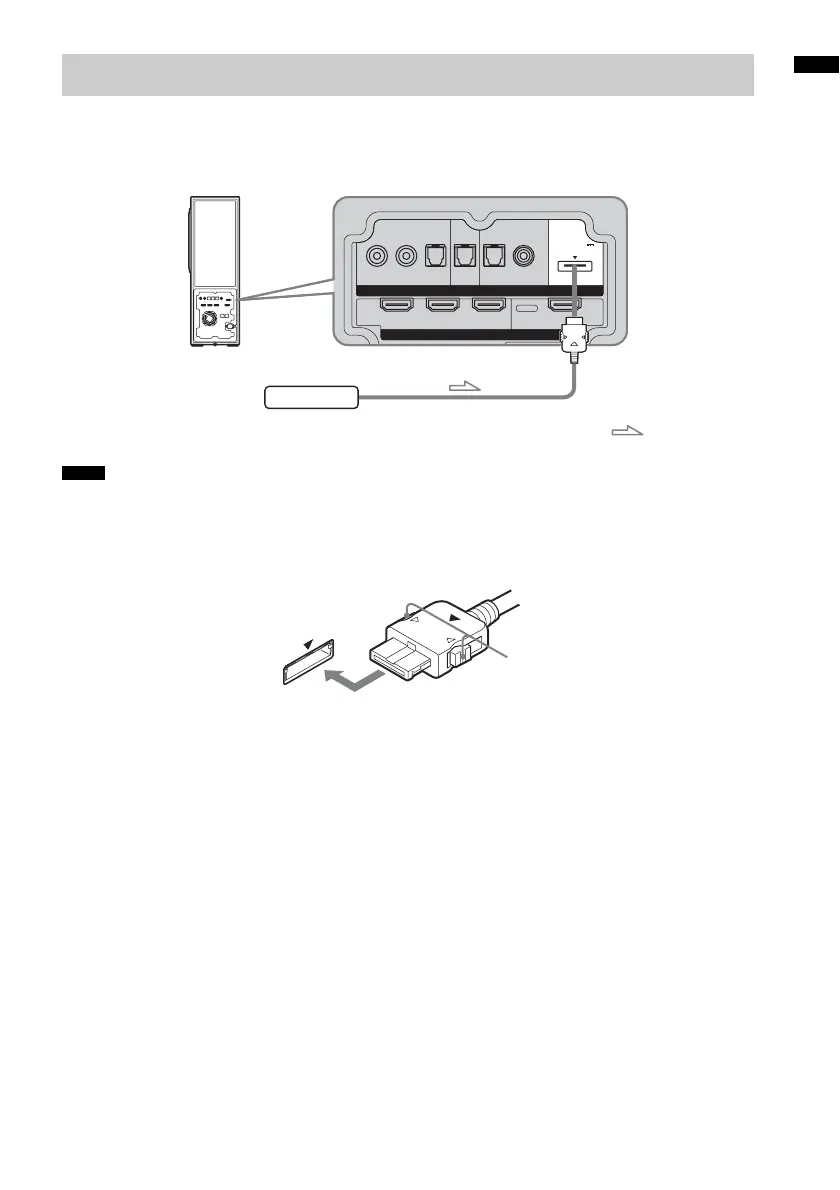

Connecting the DIGITAL MEDIA PORT adapter
Notes
INPUTINPUT
HDMI
RL
OPT OPT OPT
COAX
DC 5V
0.7A MAX
DVD SAT DMPORTTV
BD IN DVD IN SAT IN TV OUT
DIGITAL MEDIA PORT adapter
: Signal flow
A
