Sony HT-RT40 Service Manual

HT-RT4/RT40
12

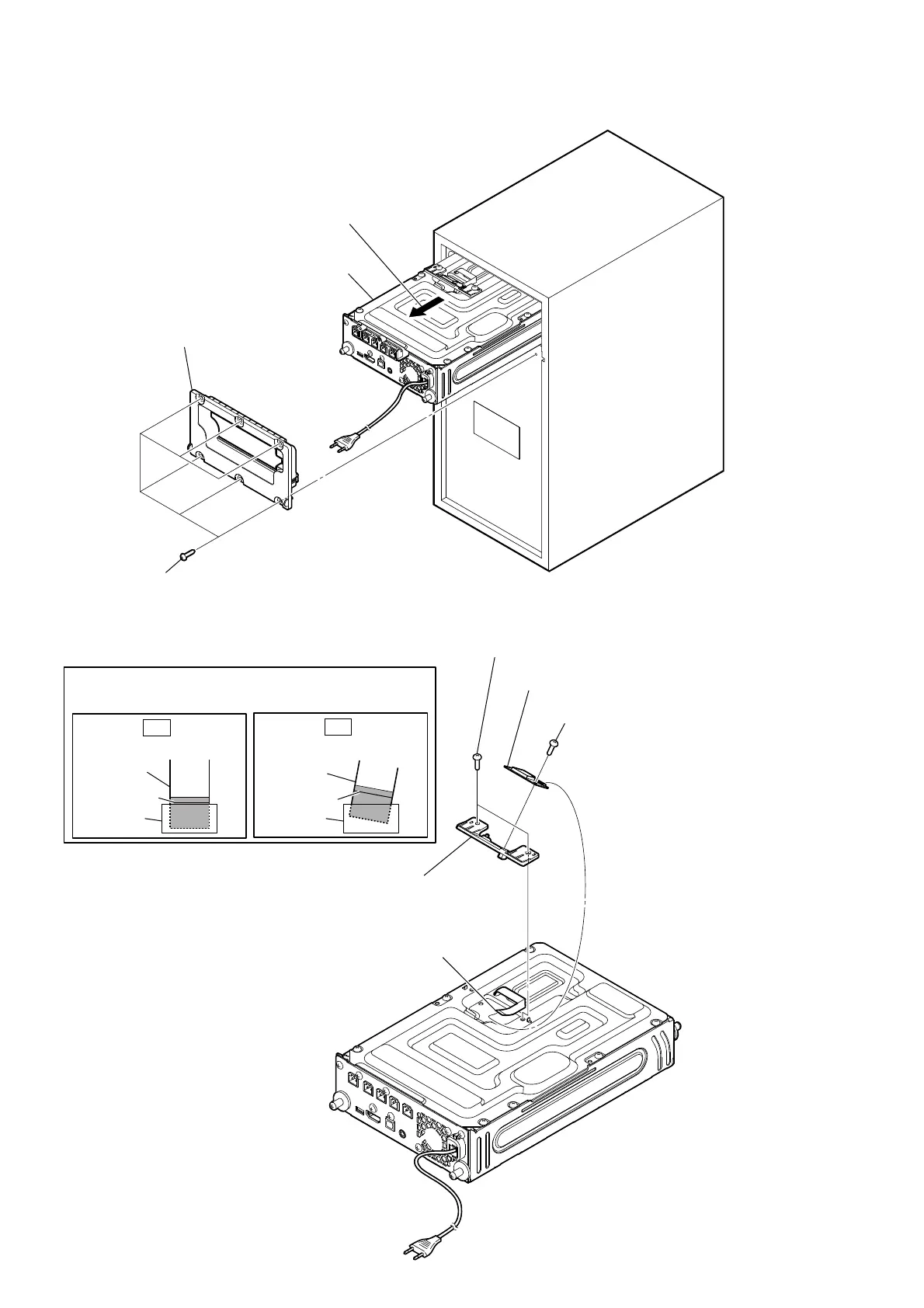

2-5. CHASSIS SECTION
2-6. BLUETOOTH MODULE
1 six screws (+BV TAPPING SCREW TYPE-1 3.5)
2 panel, rear (EL-SW)
3 Draw out chassis section in
the arrow direction.
4 chassis section
– Rear view –
5 holder, BT
2 one screw (+BVTP 3 X 8 TYPE2 IT-3)
3 BLUETOOTH module
4 two screws (+BVTP 3 X 8 TYPE2 IT-3)
1 wire (flat type) (18 core)
(CN2002)
– Rear view –
Note: When installing the
wire (flat type)
, ensure that the
colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type)
wire (flat type)
connectorconnector
OK
NG

Sony HT-RT40 Specifications

General

Total Power Output	600W
Speaker Configuration	5.1 channel
HDMI Output	1 (ARC)
Sound Modes	Music, Cinema, Standard
Connectivity	Bluetooth, USB
Subwoofer	Wired
Surround Sound	Dolby Digital
Input and Output Terminals	Optical Input, Analog Input, USB
