32
HT-RT4/RT40
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

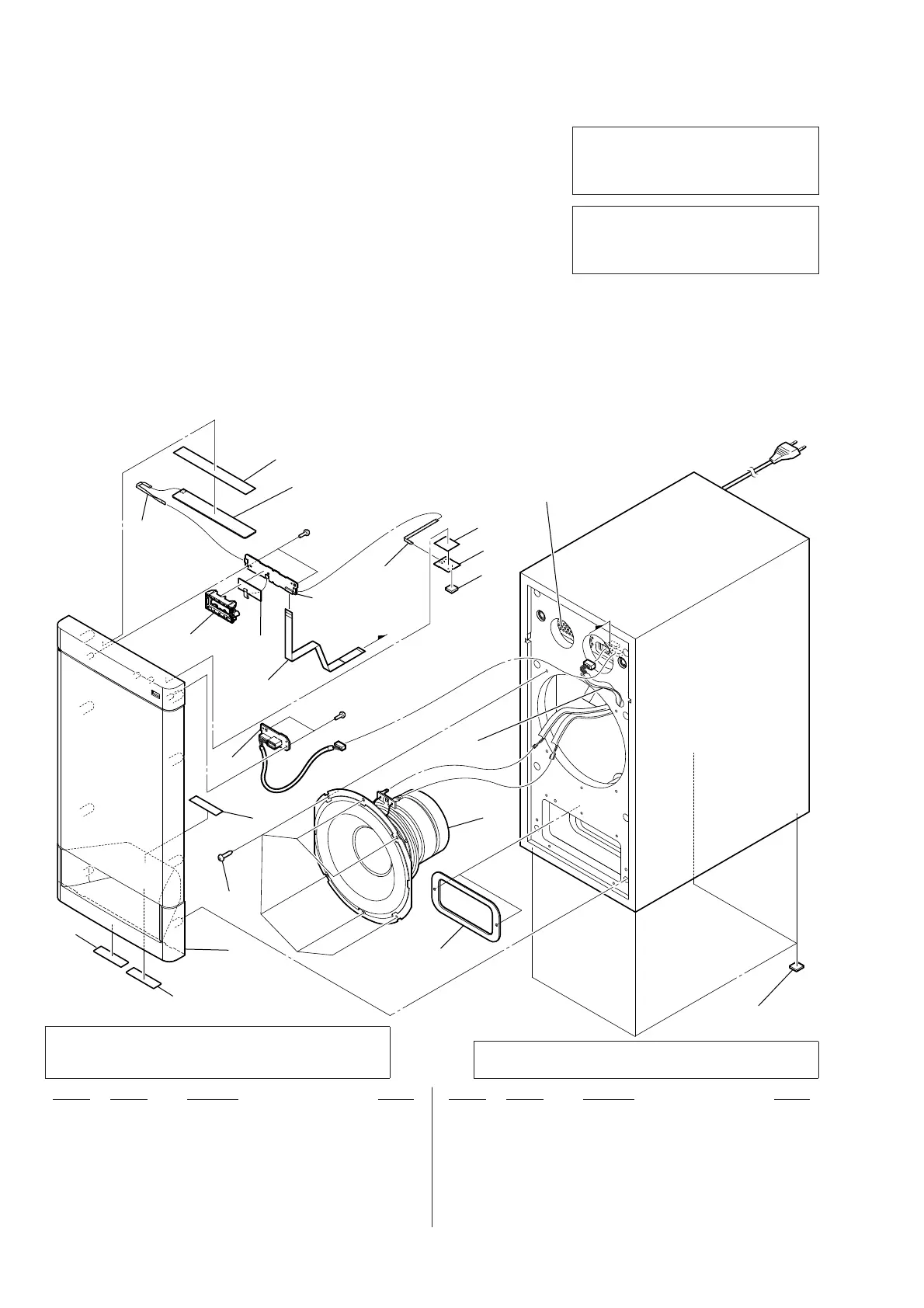

6-1. OVERALL SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
AUS : Australian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
EA : Saudi Arabia model
LA9 : Latin-American model
SP : Singapore model
1 X-2592-789-1 PANEL, FRONT (EL-SW) ASSY
2 A-2089-365-A USB BOARD, COMPLETE
3 8-989-602-00 RC-S730 (WW)
4 1-828-156-51 WIRE (FLAT TYPE) (6 CORE)
5 4-459-006-01 DOUBLE ADHESIVE TAPE (NFC)
6 1-828-230-51 WIRE (FLAT TYPE) (20 CORE)
7 1-812-049-11 ELEMENT, ORGANIC EL INDICATOR
8 4-586-705-11 DOUBLE ADHESIVE TAPE
9 4-238-407-12 SCREW (1) (4X20), +BV TAPPING
10 1-859-169-21 LOUDSPEAKER 16CM
11 2-682-469-11 FOOT (SW)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
A
A
#1
#1
9
10
8
6
4
7
2
11
4
5
1
3
chassis section
ns
TOUCH board (ns)
ns
ns
EG4 OLED CHUKEI
PC board (ns)
ns
ns
ns
ns
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Note 2: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Note 1: When the RC-S730 (WW) is replaced, refer to
“NOTE OF REPLACING BLUETOOTH MODULE
OR RC-S730 (WW)” on page 5.
To Next Page
