HT-RT4/RT40
13

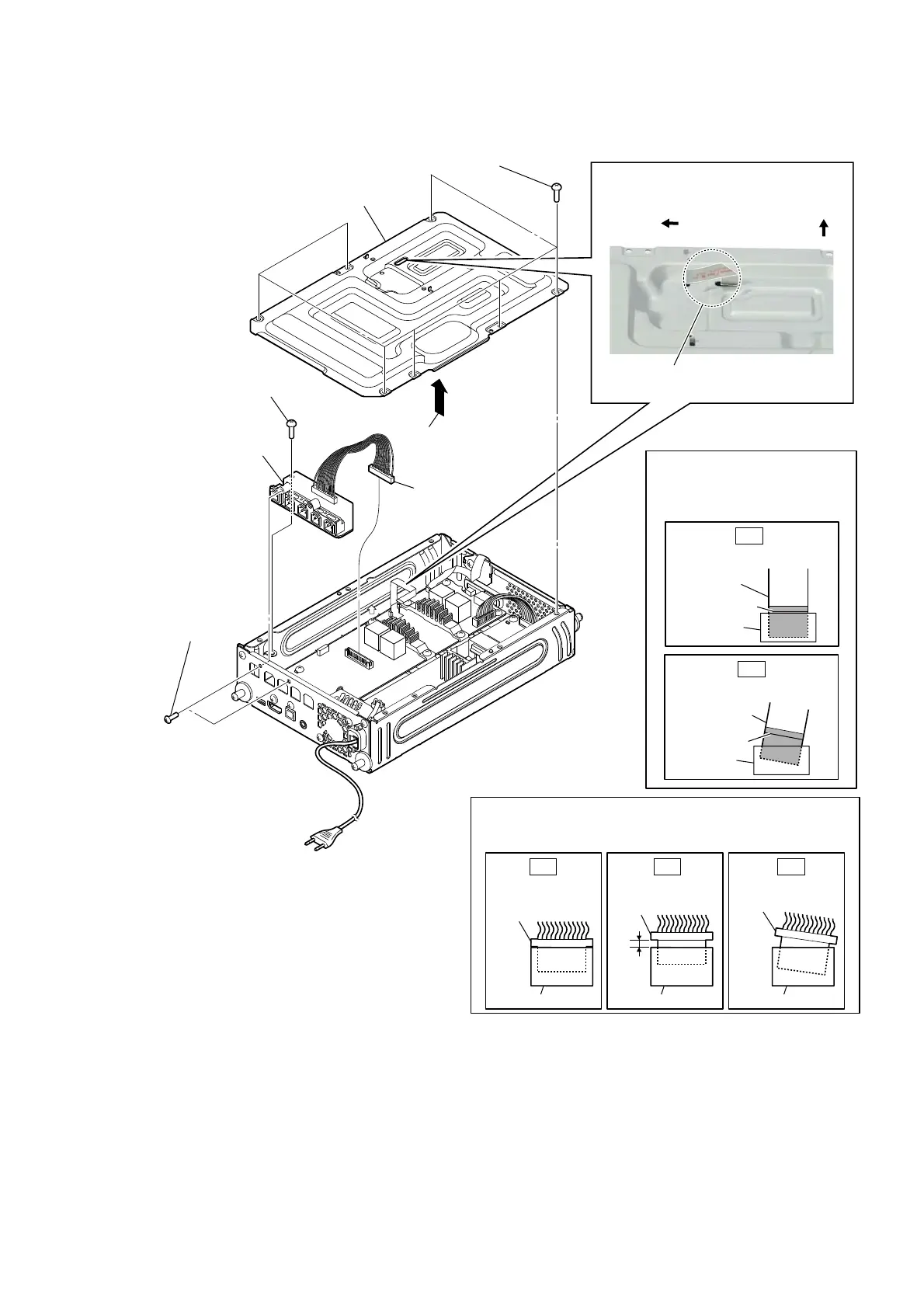

2-7. SPEAKER CHUKEI PC BOAR BOARD
2
Remove chassis,
top (EL-SW) in the
direction of arrow.
4
chassis, top (EL-SW)
6
two screws
(+BV3 (3-CR))
7
one screw
(+BVTP 3 X 8 TYPE2 IT-3)
5
CN1002 (12P)
1
seven screws (+BVTP 3 X 8 TYPE2 IT-3)
8
SPEAKER CHUKEI PC
BOAR board
:LUHVHWWLQJ
3 Draw out wire (flat type) (18 core) from
chassis, top (EL-SW).
–5HDUYLHZ–
rear side
wire (flat type) (18 core)
top side
Note 2:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
Note 1: When installing the wire
(flat type), ensure that the
colored line is not slanted
after insertion.
colored line
Insert is straight to the interior.
wire (flat type)
connector
OK
colored line
Insert is incline
wire (flat type)
connector
NG
To Next Page
