Sony HT-RT40 Service Manual

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HT-RT4/RT40
36
USB
SPEAKER CHUKEI PC BOAR BOARD
*****************************
< TRANSFORMER >
TB6000 1-780-454-11 TERMINAL BOARD (SPEAKER) 4P
TB6001 1-780-815-11 TERMINAL BOARD (SPEAKER)
*************************************************************
TOUCH BOARD
*************
< CONNECTOR >
CN4001 1-816-654-61 FFC/CONNECTOR, FPC (LIF) 6P
< IC >
IC4001 6-722-496-01 IC CY8CMBR3108-LQXIT
IC4002 6-713-333-01 IC PST8429UL
*************************************************************
A-2089-365-A USB BOARD, COMPLETE
********************
< CONNECTOR >
CN7000 1-843-975-11 USB CONNECTOR (A)
*************************************************************
MISCELLANEOUS
**************
3 8-989-602-00 RC-S730 (WW)
4 1-828-156-51 WIRE (FLAT TYPE) (6 CORE)
6 1-828-230-51 WIRE (FLAT TYPE) (20 CORE)
10 1-859-169-21 LOUDSPEAKER 16CM
54 1-828-218-51 WIRE (FLAT TYPE) (18 CORE)
55 1-493-097-11 BLUETOOTH MODULE
0 102 1-855-244-11 DC FAN
104 1-828-228-51 WIRE (FLAT TYPE) (20 CORE)
0 105 4-966-267-12 BUSHING (FBS001), CORD
0 106 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP, LA9)
0 106 1-835-068-21 CORD, POWER (AUS)
0 106 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 106 1-839-999-22 POWER-SUPPLY CORD (UK, EA)
0 106 1-848-053-12 POWER-SUPPLY CORD (E12)
0 107 1-474-638-31 REGULATOR, SWITCHING 3L405W-4
(EXCEPT E12)
0 107 1-474-638-41 REGULATOR, SWITCHING 3L405W-5 (E12)
*************************************************************
ACCESSORIES
************
501 A-2179-968-A SPEAKER BASE ASSY (Speaker Bases)
502 1-493-155-11 REMOTE COMMANDER RMT-AH200U
(Remote Control)
0 503 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA9)
504 1-848-225-21 CABLE, LIGHT PLUG (Optical digital cable)
(HT-RT4)
505 1-849-353-11 HDMI CABLE (High Speed HDMI cable) (HT-RT40)
Note 1: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Note 2: When the REGULATOR, SWITCHING 3L405W
board is replaced, spread the bond referring to
“BOND FIXATION OF ELECTRIC PARTS” on
page 6.

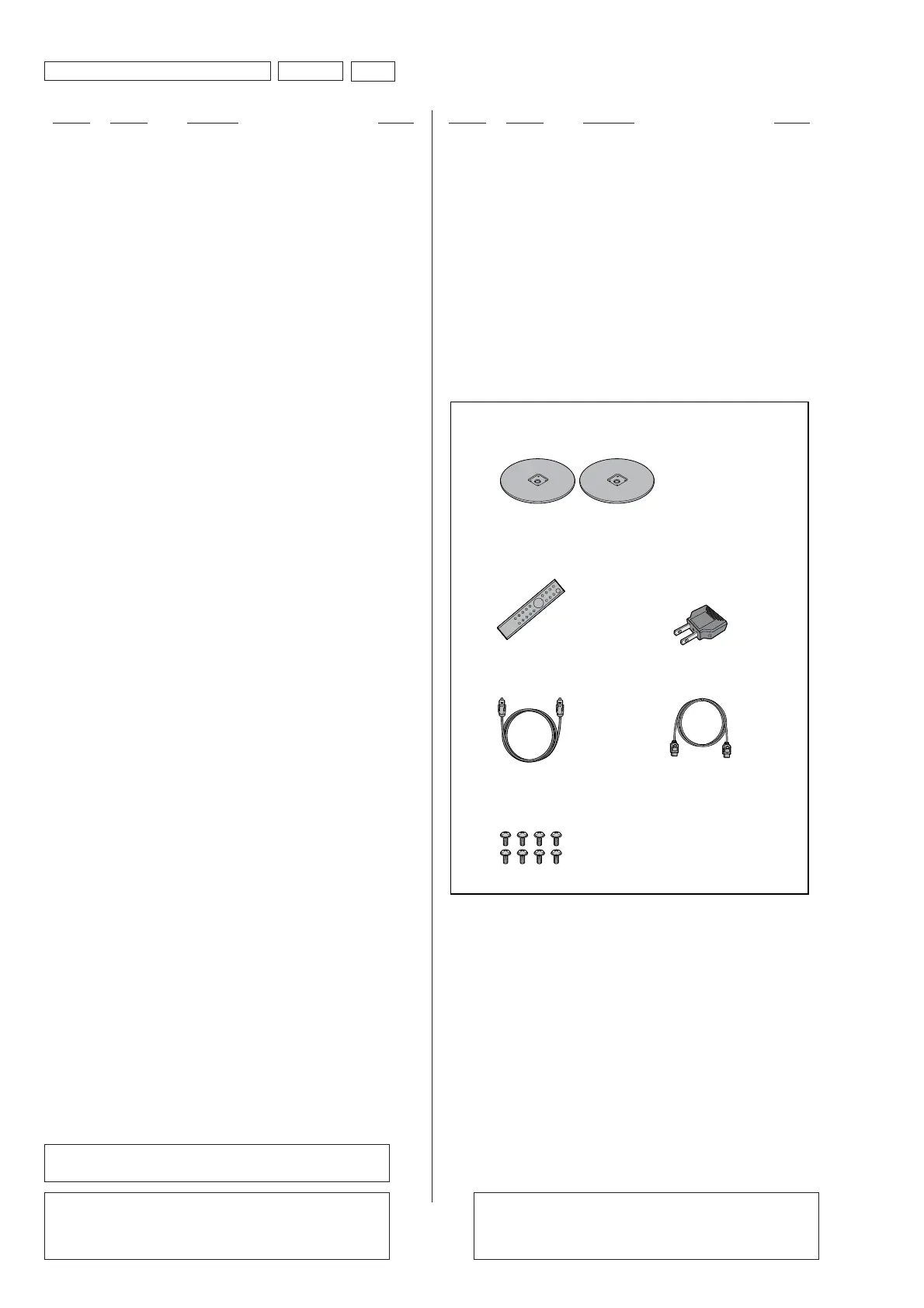

501 Speaker bases (2)
503 AC plug adaptor* (1) (LA9)
* The adaptor is not use in Chile,
Uruguay and Paraguay. Use the adaptor
in the countries where it is neccessary.
504 Optical digital cable (1)
(HT-RT4)
502 Remote control (1)
505 High Speed HDMI cable (1)
(HT-RT40)
506 Screws (8)
506 4-533-400-11 SCREW +B 4X10 (WASHER)
4-693-608-12 MANUAL, INSTRUCTION (ENGLISH)
(UK, E3, SP, AUS, E12)
4-693-608-22 MANUAL, INSTRUCTION
(FRENCH, SPANISH, GERMAN, DUTCH, ITALIAN, POLISH)
(AEP)
4-693-608-31 MANUAL, INSTRUCTION
(FRENCH, ARABIC, PERSIAN) (E3)
4-693-608-41 MANUAL, INSTRUCTION
(ENGLISH, ARABIC) (EA)
4-693-608-51 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (SP)
4-693-608-61 MANUAL, INSTRUCTION (SPANISH) (LA9)
4-693-608-71 MANUAL, INSTRUCTION (SPANISH) (AR)
TOUCHSPEAKER CHUKEI PC BOAR
Note 3: When the BLUETOOTH MODULE or RC-S730
(WW) is replaced, refer to “NOTE OF REPLAC-
ING BLUETOOTH MODULE OR RC-S730 (WW)”
on page 5.

Sony HT-RT40 Specifications

General

Total Power Output	600W
Speaker Configuration	5.1 channel
HDMI Output	1 (ARC)
Sound Modes	Music, Cinema, Standard
Connectivity	Bluetooth, USB
Subwoofer	Wired
Surround Sound	Dolby Digital
Input and Output Terminals	Optical Input, Analog Input, USB
