2-13
HXR-NX3
551 A-1990-464-A PANEL BLOCK ASSY
552 4-460-895-01 COVER (O), HINGE
553 1-963-030-21 HARNESS (SW-116) (Note 1)
554 A-1994-373-A HT-1002 BOARD, COMPLETE
555 4-460-897-01 HOLDER, HT
556 X-2587-151-2 HINGE (40400) ASSY
557 1-965-937-21 HARNESS (COAXIAL CABLE) (Note 1)
558 4-460-894-01 COVER (U), HINGE
559 1-471-514-11 MAGNET (LM-30FH)
560 4-488-847-01 CABINET (C), P
Ref. No. Part No. Description
Ref. No. Part No. Description
561 A-1994-372-A PD-1026 BOARD, COMPLETE
562 4-461-959-01 FRAME, PD
* 563 4-488-846-01 SPACER, LCD
564 4-283-280-11 CUSHION (91000), LCD
565 1-487-270-11 BLOCK, LIGHT GUIDE PLATE (3.5)
566 3-089-986-01 SHEET (L), LIGHT INTERCEPTION
567 X-2588-894-1 CABINET (M) ASSY, P
568 4-460-898-01 GUARD, HARNESS
569 4-475-841-11 SHEET (HN) (Note 2)
LCD901 1-811-403-11 LCD WITH TOUCH PANEL
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2

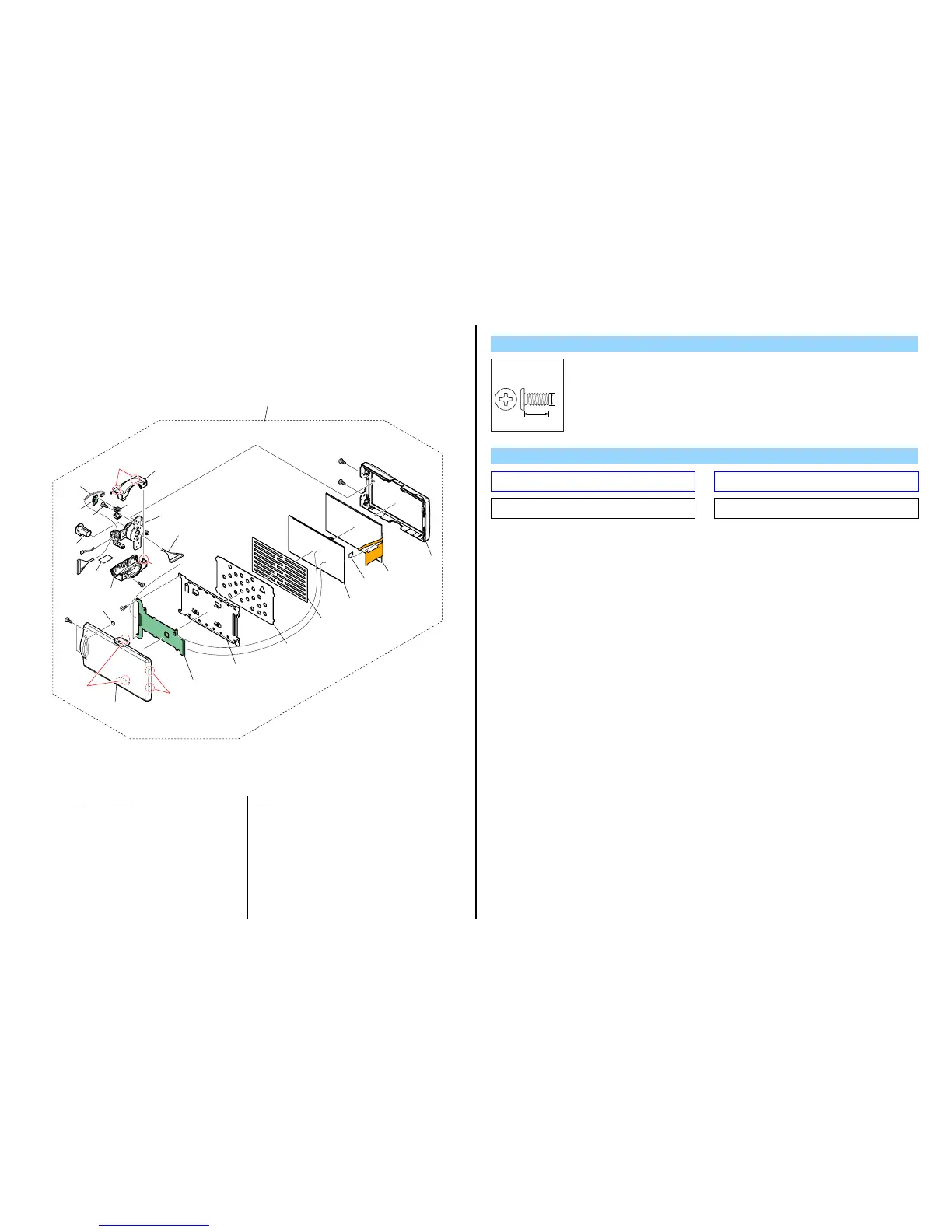

2-1-11. LCD SECTION
ns: not supplied
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
Note
Note 1: Refer to “Assembly-2: How to arrange Harnesses (SW-
116)” when installing.
Note 1:
 組立時は“Assembly-2:HowtoarrangeHarnesses(SW-116)”
を参照してください。
Note 2: Do not reuse these Parts because their adhesive force
decreases when they are removed once.
Note 2:
 これらの部品は一度剥がすと粘着力が弱くなるため、再利
用はしないでください。
#49
#49
LCD901
#49
(Note 1)
(Note 1)
(Note 2)
#49
#49
#49
551
552
554
568
569
553
555
556
558
559
557
560
561
562
563
564
566
565
567
Claws
Claws
Bosses
Claw
