501 A-2033-056-A EVF BLOCK ASSY (SERVICE)
502 4-119-301-01 EYE CUP (SMALL)
504 A-1981-924-A EYE CUP (40400) ASSY (SERVICE)
#53 3-080-206-21 SCREW, TAPPING, P2
Ref. No. Part No. Description

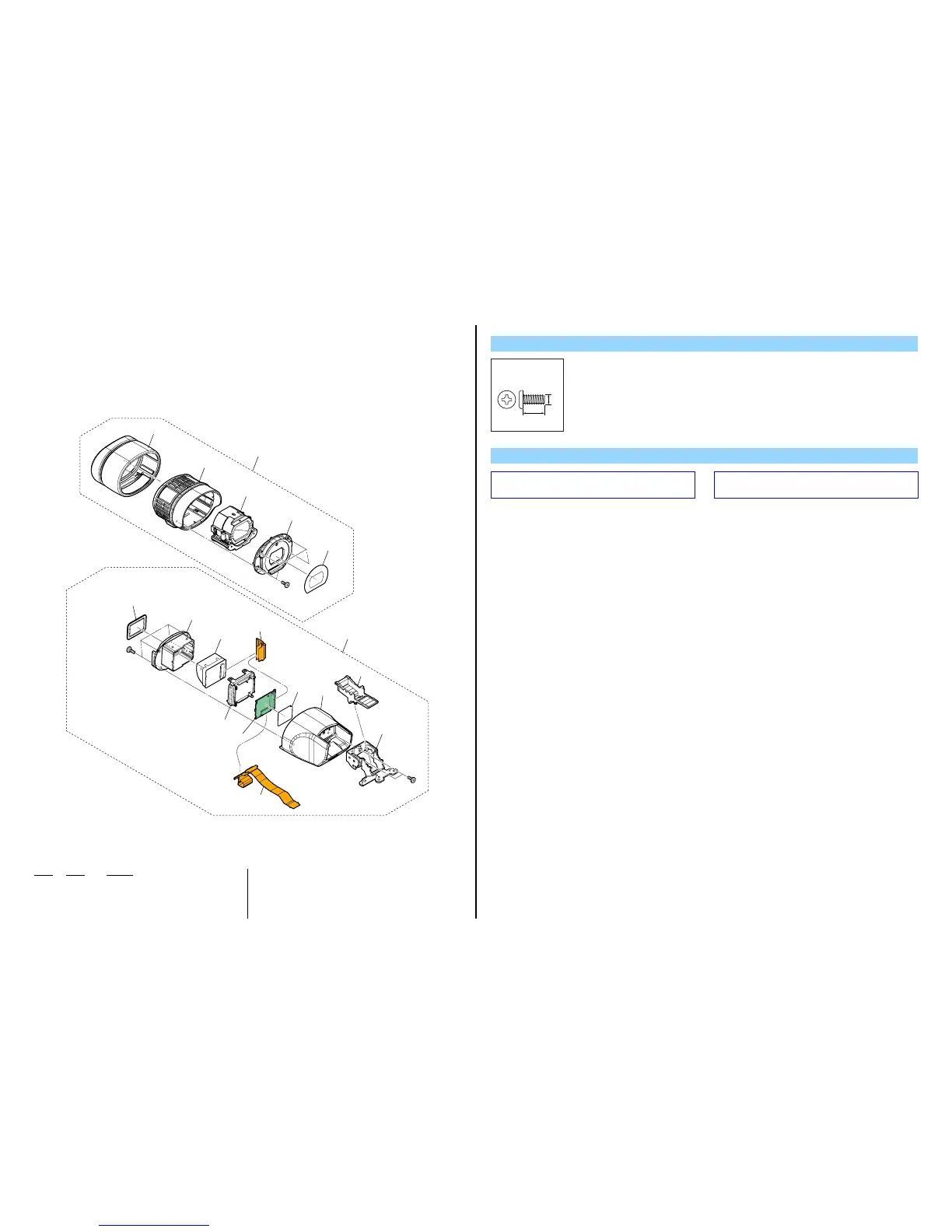

2-1-10. EVF SECTION
ns: not supplied
Screw
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note: Refer to “Assembly-1: Confirm the Diopter Adjustment
Lever is on the left side when installing the VF Lens Assy”
when installing.
Note:
 組立時は“Assembly-1: ConfirmtheDiopterAdjustment
LeverisontheleftsidewheninstallingtheVFLensAssy”を
参照してください。
502
504
501
(Note)
#53
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
(Note)
ns
ns
ns
#53
#53
