2-11
HXR-NX3
451 4-165-278-01 GRIP
452 4-165-224-01 SHEET (6018T1), RADIATION
453 4-488-866-01 HANDLE
* 454 3-288-526-01 RETAINER, SPEAKER
* 455 4-488-867-01 CUSHION, SPEAKER
Ref. No. Part No. Description
Ref. No. Part No. Description
456 2-178-550-01 HOLDER, SPEAKER
* 457 2-178-566-01 GRILLE, SPEAKER (Note)
SP901 1-858-075-41 SPEAKER (1.8CM)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2

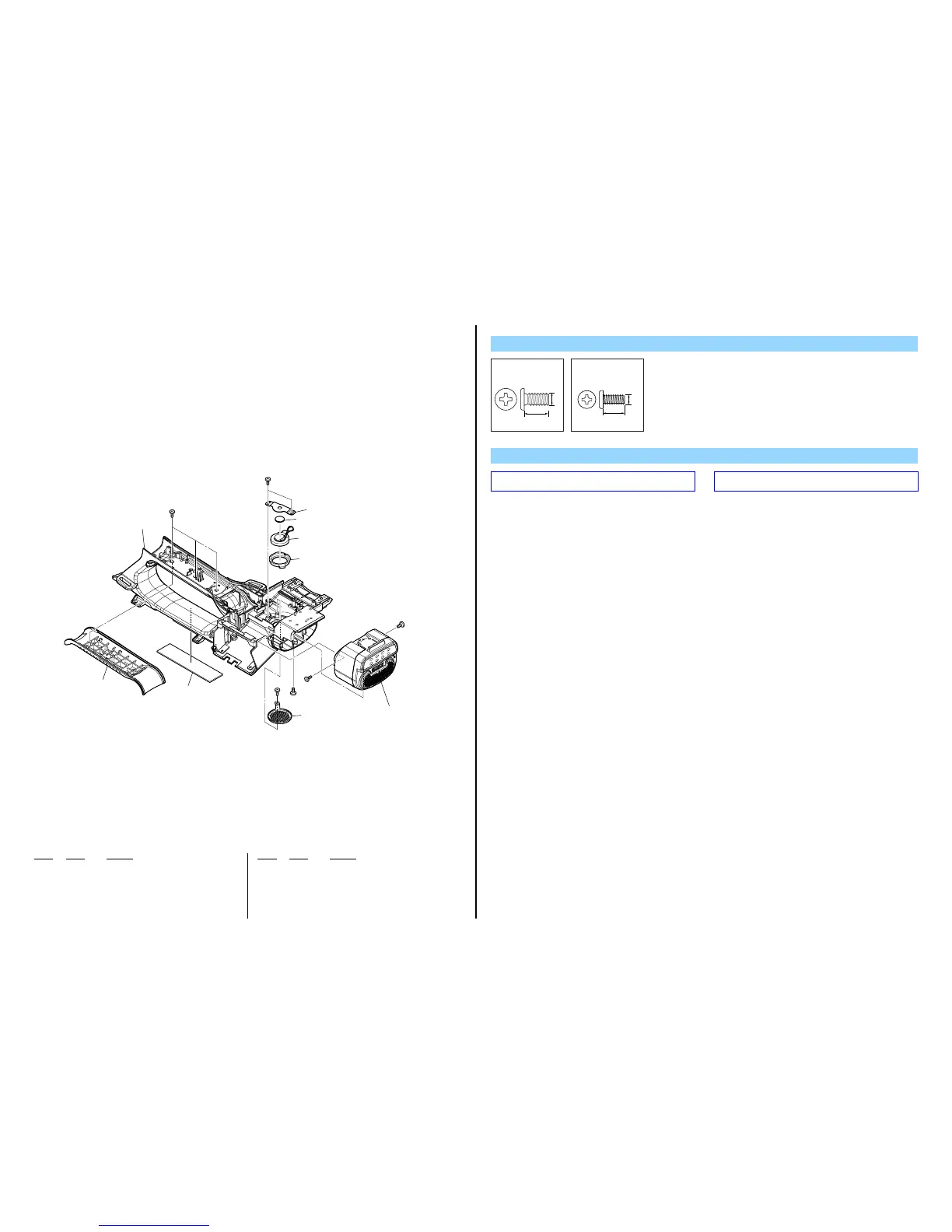

2-1-9. HANDLE SECTION-4
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note: Refer to “Assembly-3: How to bent the Speaker Grille”
when installing.
Note:
 組立時は“Assembly-3:HowtobenttheSpeakerGrille”を参
照してください。
451
452
453
455
454
SP901
#49
#49
#49
#49
#53
#49
Microphone section
(See page 2-14)
456
457
(Note)
