2-10
HXR-NX3
401 A-1994-397-A FP-2170 FLEXIBLE BOARD, COMPLETE
* 402 4-175-181-01 SHEET (FP1152), WATERPROOF
403 A-1994-395-A HP-1005 BOARD, COMPLETE
* 404 4-165-280-01 BRACKET, REAR TALLY
405 A-1994-396-A HG-1002 BOARD, COMPLETE (Note 1)
406 4-165-284-01 COVER, HP JACK
407 3-061-234-01 NUT (M6X0.5)
408 X-2188-599-1 KNOB ASSY, ZOOM SELECTION
* 409 4-165-232-01 BRACKET (GP), HG
410 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)
Ref. No. Part No. Description
Ref. No. Part No. Description
411 A-1994-374-A XL-1003 BOARD, COMPLETE
412 4-531-779-01 BRACKET (93600), XL
413 3-288-474-01 RUBBER, PANEL RETAINER
414 4-165-282-31 COVER, XLR
415 4-165-285-01 COVER, XLR RUBBER
416 2-892-095-01 CLAMP, CABLE
417 1-480-870-21 SWITCH BLOCK, CONTROL (XS93000)
418 4-165-286-01 HOLDER, XS BLOCK
419 4-476-923-01 SHEET (HP) (Note 2)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#119 7-627-556-58 SCREW +P 2.6X5

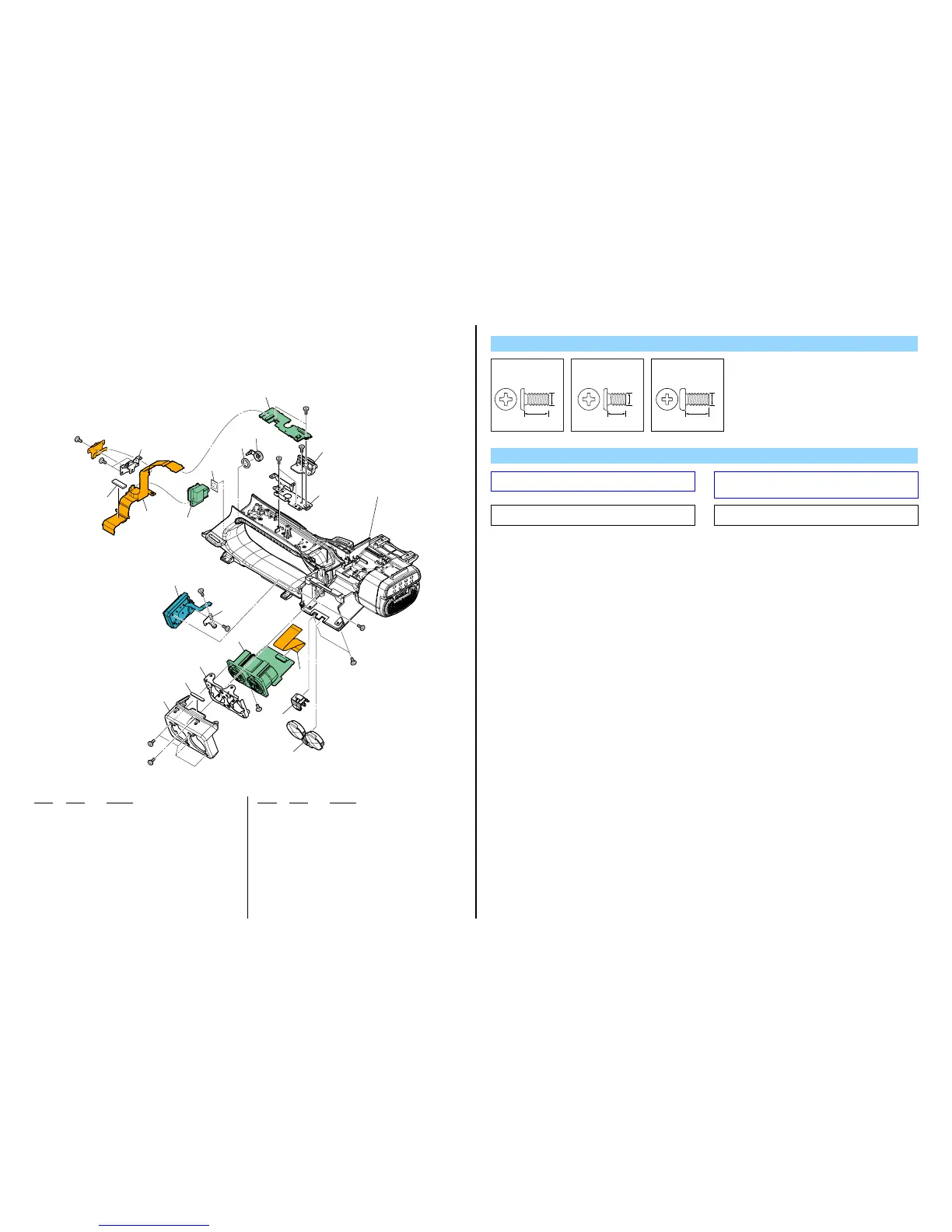

2-1-8. HANDLE SECTION-3
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
Note
Note 1: Refer to “Assembly-5: On installation of the HG-1002
Board, adjust the position of the switch”.
Note 1:
組立時は“Assembly-5:OninstallationoftheHG-1002
Board,adjustthepositionof theswitch”を参照してくださ
い。
Handle section-4
(See page 2-11)
405
401
403
417
413
412
416
415
411
418
414
402
404
406
408
409
407
419
#50
(Note 1)
(Note 2)
#49
#50
#49
#49
#119
#49
#49
#49
#50
#49
410
#50
Note 2: Do not reuse these Parts because their adhesive force
decreases when they are removed once.
Note 2:
 これらの部品は一度剥がすと粘着力が弱くなるため、再利
用はしないでください。
