2-9
HXR-NX3
351 4-460-888-02 CABINET (SIDE), HANDLE
352 X-2589-026-1 PANEL (93600) ASSY, CONTROL
353 4-488-869-01 LIGHT, SENSOR GUIDE
354 X-2589-027-1 PLATE ASSY, PANEL GROUND
355 4-165-373-03 BUTTON, CONTROL
356 1-846-791-11 FLEXIBLE FLAT CABLE (FFC-1046)
357 A-1994-394-A KY-1007 BOARD, COMPLETE
358 A-1994-376-A PI-1002 BOARD, COMPLETE (Note)
359 1-836-006-11 FLEXIBLE FLAT CABLE (FFC-172)
360 A-1994-375-A SE-1005 BOARD, COMPLETE (Note)
Ref. No. Part No. Description
Ref. No. Part No. Description
361 4-460-887-01 CLAMP, HARNESS (Note)
362 1-889-008-11 FP-2174 FLEXIBLE BOARD
363 4-169-934-01 SHEET (FP1157), COUNTERMEASURE
364 4-165-281-01 CABINET, HANDLE (FRONT)
* 365 4-174-174-01 CUSHION, HANDLE (FRONT) CABINET
#11 3-078-890-11 SCREW, TAPPING
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#282 3-694-181-02 TYPE1, AROCK PRECISION +P2.6X5
#304 2-342-356-01 SCREW (M2 (ECO, EG))

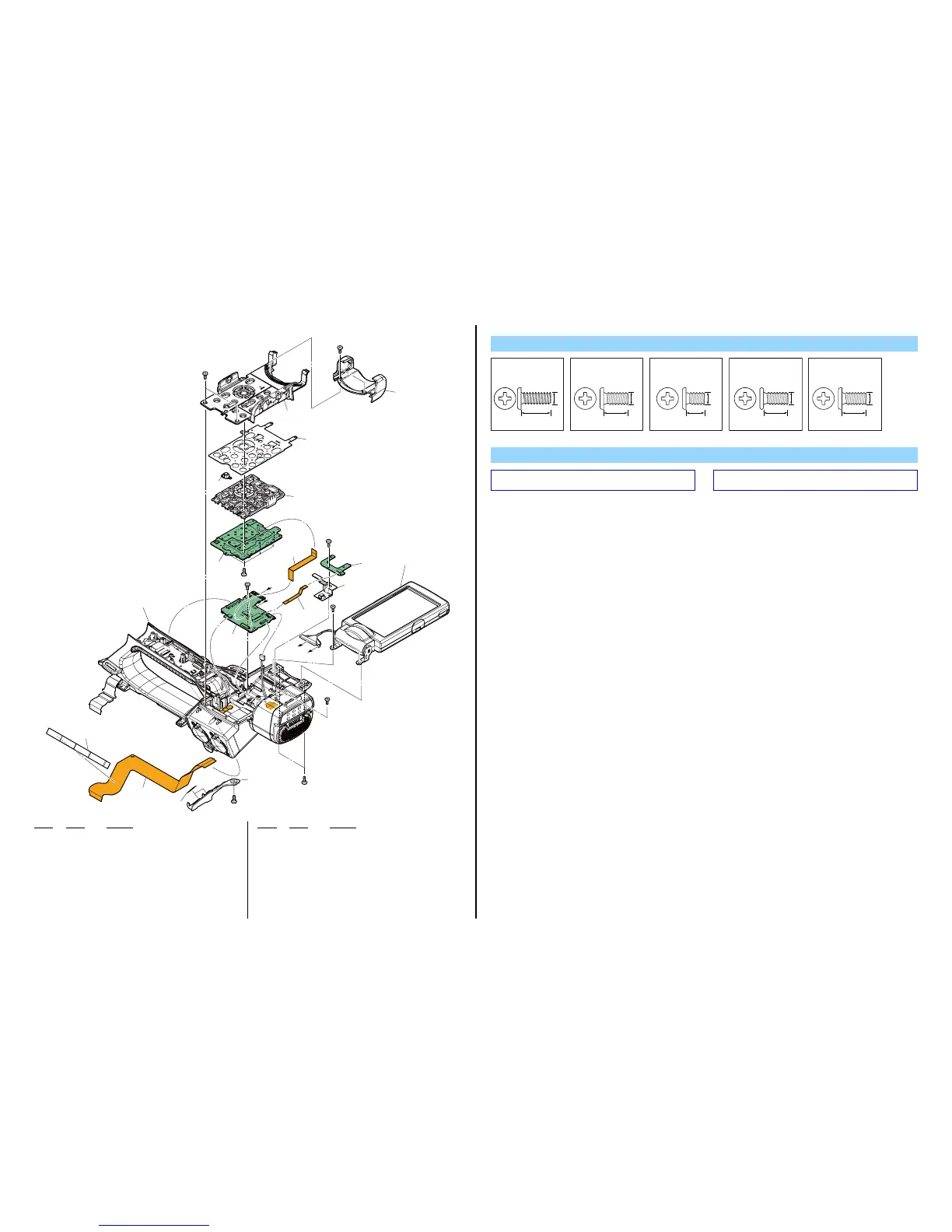

2-1-7. HANDLE SECTION-2
Screw
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#282: M2.6 X 5.0
(Black)
3-694-181-02
5.0
2.6
Note
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
Note: Refer to “Assembly-4: How to arrange Harnesses and Flexible
Board” when installing.
Note:
組立時は“Assembly-4:HowtoarrangeHarnessesand
FlexibleBoard”を参照してください。
#50
#282
#49
#304
#49
#50
#49
#49
#11
LCD Section
(See page 2-13)
Handle Section-3
(See page 2-10)
351
352
354
355
357
356
358
(Note)
359
364
365
362
363
361
(Note)
360
(Note)
353
"
#
"
#
#304: M2.0 X 4.0
(Black)
2-342-356-01
4.0
2.0
