2-3
HXR-NX3

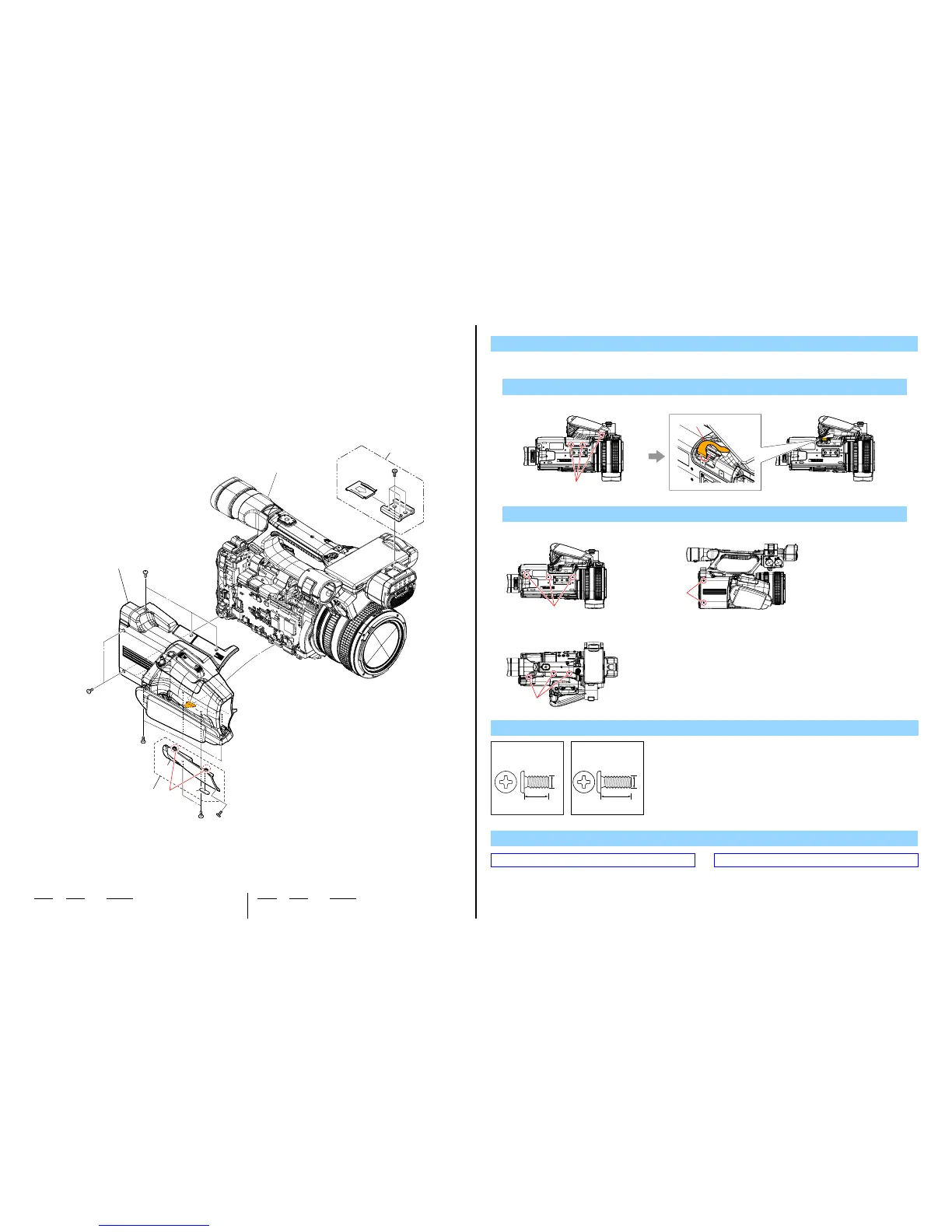

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
1 X-2515-789-1 COVER ASSY, GRIP
2 2-178-805-01 FOOT, RUBBER
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#273 2-342-356-21 SCREW (M2 (ECO, EG))
1. Remove in numerical order (1 to 2) in the left figure.
DISASSEMBLY
1 #49 X 3 → Grip Cover Assy → Disconnect the Flexible Board 1
Screw
#49
Bottom View
1
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#273: M2.0 X 6.0
(Black)
2-342-356-21
6.0
2.0
2 #49 X 8
#49
#49
#49
Bottom View Left View
Top View
Claws
2
1
Cabinet (L) Section
(See page 2-6)
Main Board Section
(See page 2-4)
#49
(Note 1)
#49
#49
ns
#49
#49
1
2
Note
Note 1: Refer to ACCESSORIES on page 2-17.
Note 1:
2-17ページACCESSORIESを参照してください。
To Next Page
