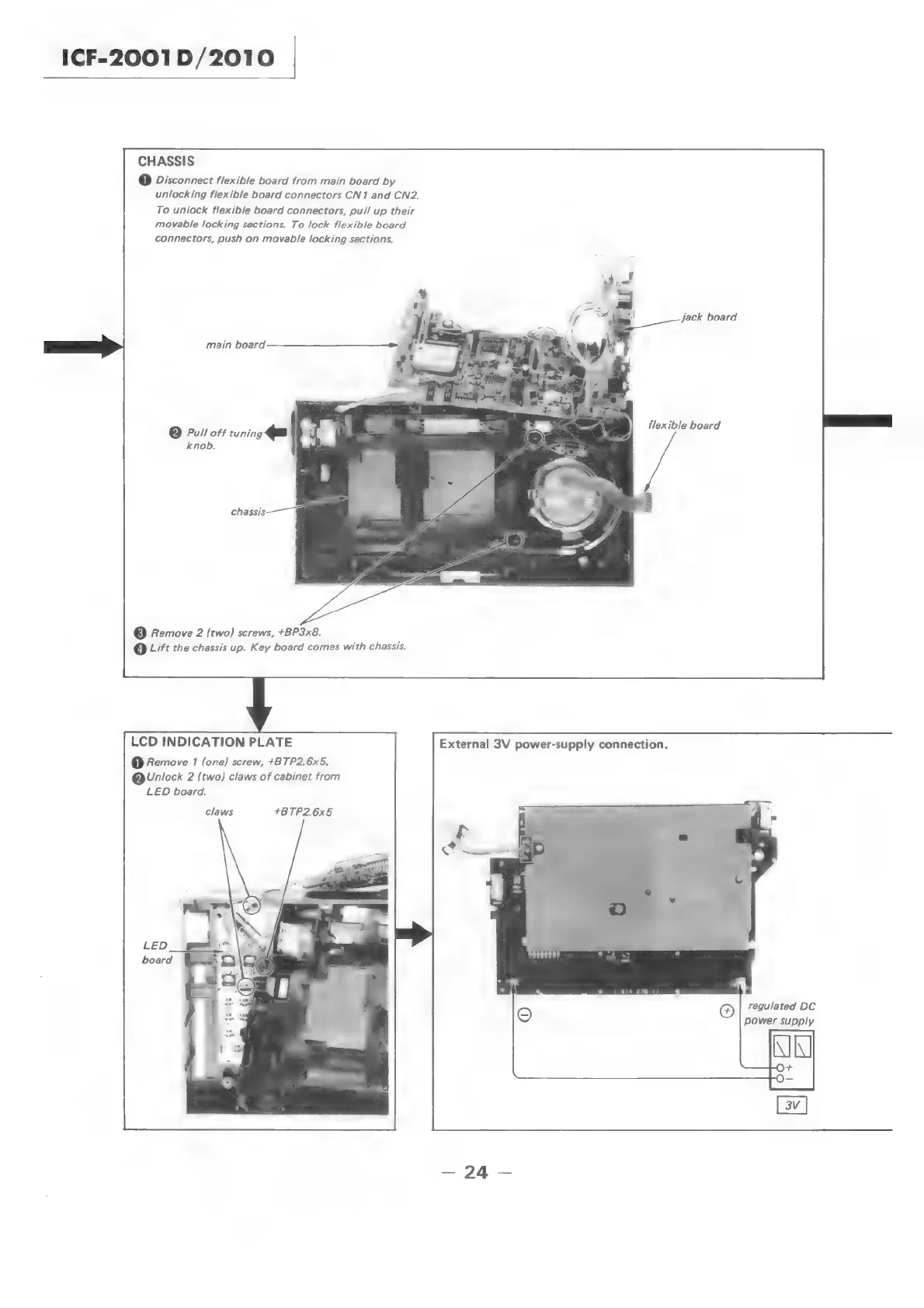

ICF-2001D/2010
CHASSIS
@ Disconnect flexible board from main board by
unlocking flexible board connectors CN1 and CN2.
To unlock flexible board connectors, pull up their
movable locking sections. To lock flexible board
connectors, push on movable locking sections.
jack board
main board
flexible board
@ Pull off tuning a
knob.
© Remove 2 (two) screws, +BP3x8.
Q Lift the chassis up. Key board comes with chassis.
LCD INDICATION PLATE External 3V power-supply connection.
@ Remove 1 (one) screw, *BTP2.6x5.
QUnlock 2 (two) claws of cabinet from
LED board.
claws +BTP2.6x5
Te
regulated DC
power supply
