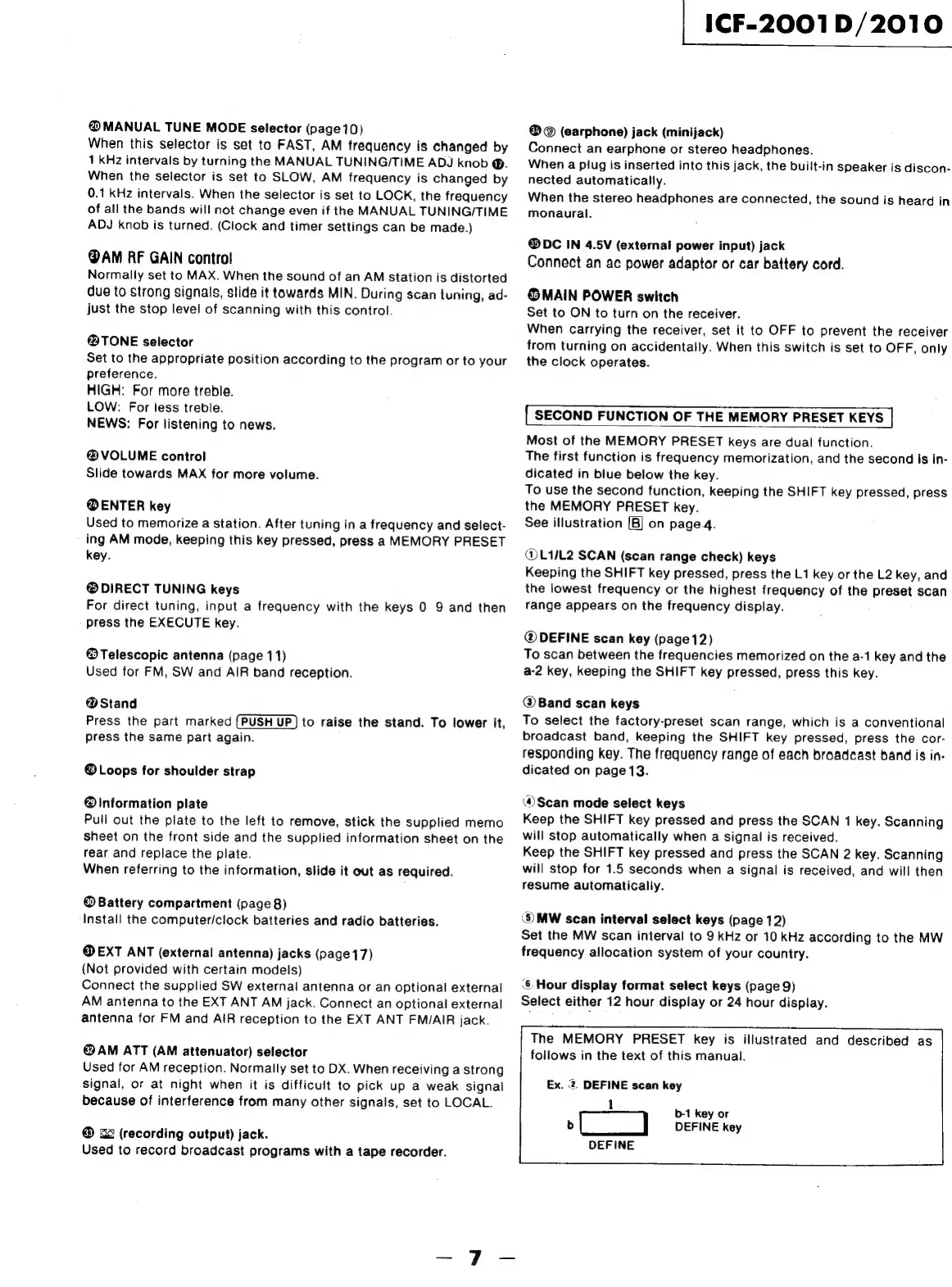

Sony ICF-2001D - Additional Controls and Second Functions; Tuning Mode and Input Controls; Physical Features and Power Jacks; Memory Preset Second Functions

@ MANUAL TUNE MODE selector (page 10)
When
this
selector
is
set
to
FAST,
AM
frequency
is
changed
by
1
kHz
intervals
by
turning
the
MANUAL
TUNING/TIME
ADJ
knob
@.
When
the
selector
is
set
to
SLOW,
AM
frequency
is
changed
by
0.1
KHz
intervals.
When
the
selector
is
set
to
LOCK,
the
frequency
of
all
the
bands
will
not
change
even
if
the
MANUAL
TUNING/TIME
ADJ
knob
is
turned.
(Clock
and
timer
settings
can
be
made.)
@AM RF GAIN control
Normally
set
to
MAX.
When
the
sound
of
an
AM
station
is
distorted
due
to
strong
signals,
slide
it
towards
MIN.
During
scan
tuning,
ad-
just
the
stop
level
of
scanning
with
this
control.
@TONE selector
Set
to
the
appropriate
position
according
to
the
program
or
to
your
preference.
HIGH: For more treble.
LOW: For less treble.
NEWS: For listening to news.
@® VOLUME control
Slide towards MAX for more volume.
@ENTER key
Used
to
memorize
a
station.
After
tuning
in
a
frequency
and
select-
ing
AM
mode,
keeping
this
key
pressed,
press
a
MEMORY
PRESET
key.
@® DIRECT TUNING keys
For
direct
tuning,
input
a
frequency
with
the
keys
0
9
and
then
press the EXECUTE key.
® Telescopic antenna (page 11)
Used for FM, SW and AIR band reception.
@ Stand
Press the part marked to raise the stand. To lower it,
press the same part again.
@ Loops for shoulder strap
® Information plate
Pull
out
the
plate
to
the
left
to
remove,
stick
the
supplied
memo
sheet
on
the
front
side
and
the
supplied
information
sheet
on
the
rear
and
replace
the
plate.
When
referring
to
the
information,
slide
it
out
as
required.
@ Battery compartment (page 8)
Install the computer/clock batteries and radio batteries.
@ EXT ANT (external antenna) jacks (page 17)
(Not provided with certain models)
Connect the supplied SW external antenna or an optional external
AM antenna to the EXT ANT AM jack. Connect an optional external
antenna for FM and AIR reception to the EXT ANT FM/AIR jack.
@ AM ATT (AM attenuator) selector
Used for AM reception. Normally set to DX. When receiving a strong
signal, or at night when it is difficult to pick up a weak signal
because of interference from many other signals, set to LOCAL.
® G5 (recording output) jack.
Used to record broadcast programs with a tape recorder.
| ICF-2001D/2010
@ © (earphone) jack (minijack)
Connect an earphone or stereo headphones.
When
a
plug
is
inserted
into
this
jack,
the
built-in
speaker
is
discon-
nected
automatically.
When
the
stereo
headphones
are
connected,
the
sound
is
heard
in
monaural.
@®DC IN 4.5V (external power input) jack
Connect an ac power adaptor or car battery cord.
© MAIN POWER switch
Set to ON to turn on the receiver.
When
carrying
the
receiver,
set
it
to
OFF
to
prevent
the
receiver
from
turning
on
accidentally.
When
this
switch
is
set
to
OFF,
only
the
clock
operates.
SECOND FUNCTION OF THE MEMORY PRESET KEYS |
Most of the MEMORY PRESET keys are dual function.
The
first
function
is
frequency
memorization,
and
the
second
is
in-
dicated
in
blue
below
the
key.
To use the second function, keeping the SHIFT key pressed, press
the MEMORY PRESET key.
See illustration (B] on page.4.
@L1/L2 SCAN (sean range check) keys
Keeping the SHIFT key pressed, press the L1 key or the L2 key, and
the
lowest
frequency
or
the
highest
frequency
of
the
preset
scan
range appears on the frequency display.
@ DEFINE scan key (page12)
To scan between the frequencies memorized on the a-1 key and the
a-2 key, keeping the SHIFT key pressed, press this key.
@ Band scan keys
To select the factory-preset scan range, which is a conventional
broadcast band, keeping the SHIFT key pressed, press the cor-
responding key. The frequency range of each broadcast band is in-
dicated on page 13.
Scan mode select keys
Keep
the
SHIFT
key
pressed
and
press
the
SCAN
1
key.
Scanning
will
stop
automatically
when
a
signal
is
received.
Keep
the
SHIFT
key
pressed
and
press
the
SCAN
2
key.
Scanning
will
stop
for
1.5
seconds
when
a
signal
is
received,
and
will
then
resume
automatically.
© MW scan interval select keys (page 12)
Set
the
MW
scan
interval
to
9
kHz
or
10
kHz
according
to
the
MW
frequency allocation system of your country.
‘6. Hour display format select keys (page 9)
Select either 12 hour display or 24 hour display.
The
MEMORY
PRESET
key
is
illustrated
and
described
as
foliows
in
the
text
of
this
manual.
Ex. 2 DEFINE scan key
b-1 key or
DEFINE key
—
DEFINE
