CF-7800

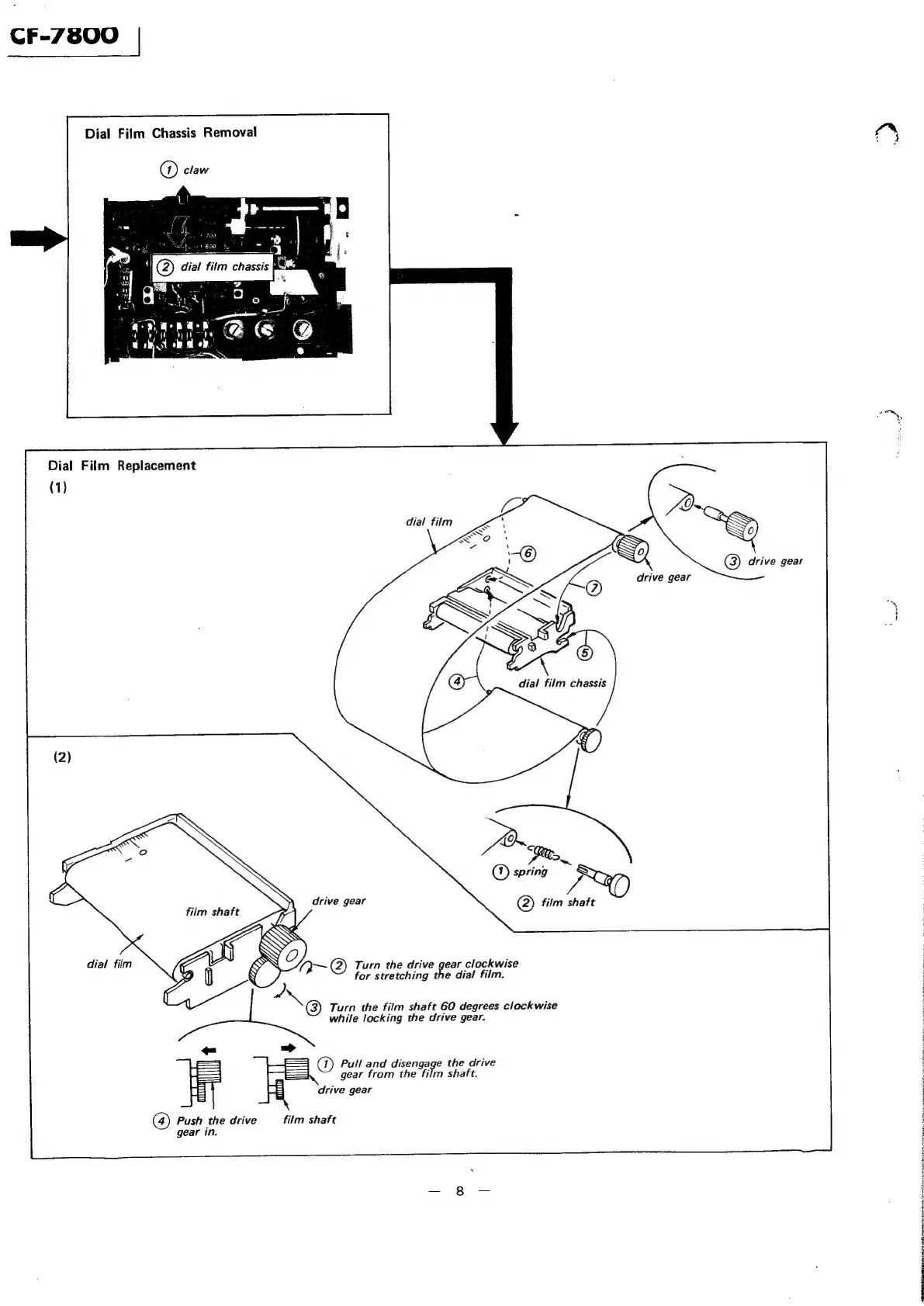

Dial Film Chassis Removal
@) claw
Dial Film Replacement
(1)
dial film
dial film
A-
Pets,
® spring
drive gear @ film shaft
Turn the drive gear clockwise
for stretching the dial film.
N
\@
Turn
the
film
shaft
60
degrees
clockwise
while
locking
the
drive
gear.
=>
=
Pull and disengage the drive
gear from the film shaft.
drive gear
y
iY
Push the drive film shaft
gear in.
