Sony ICF-C630 - 6 Exploded Views; Cabinet (Lower) Section

16
ICF-C630
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

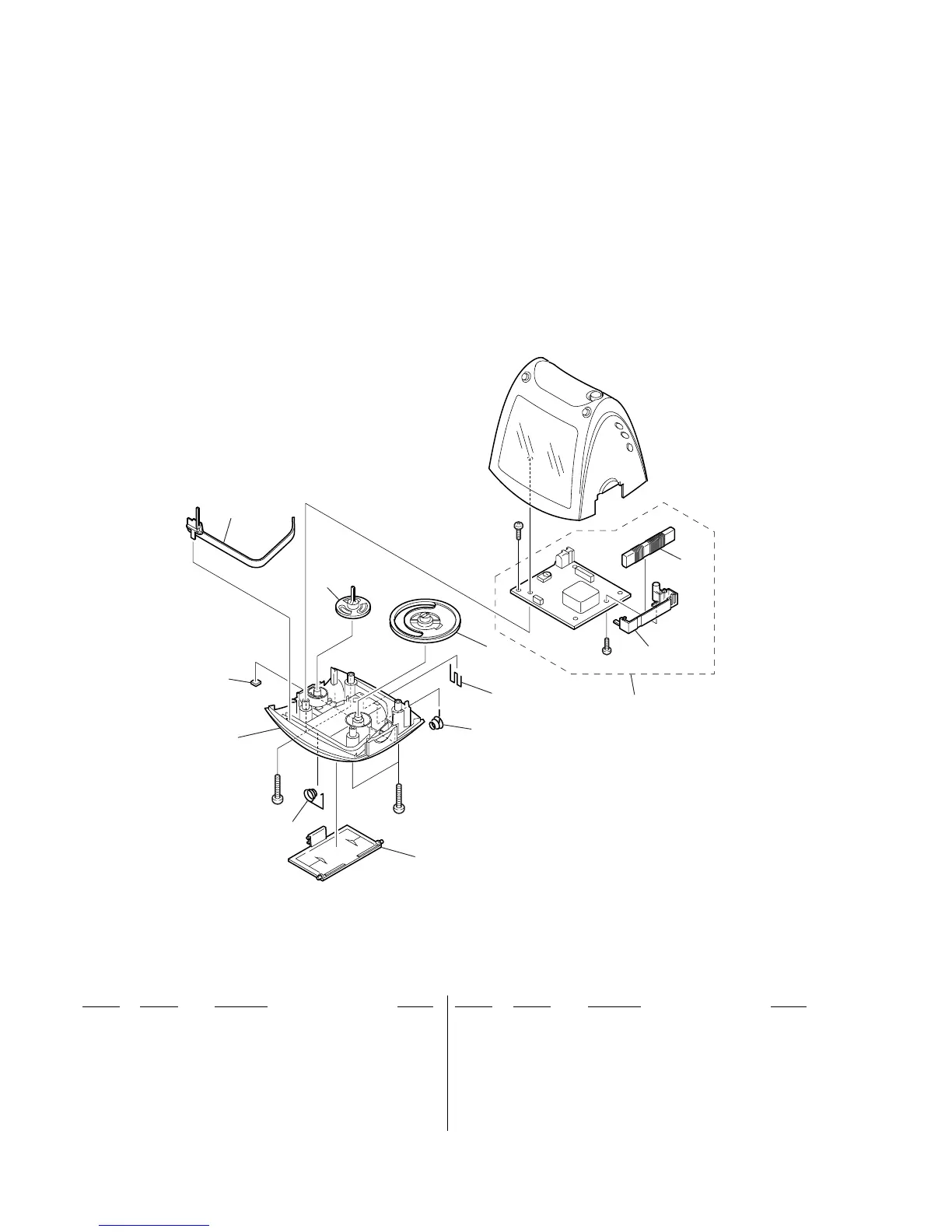

6-1. CABINET (LOWER) SECTION
Ref. No. Part No. Description Remark
* 1 A-3347-871-A TUNER BOARD, COMPLETE
2 3-248-609-01 HOLDER (ANT)
3 3-248-606-01 KNOB (TUNE)
4 3-248-610-01 TERMINAL (+), BATTERY
5 3-248-611-01 TERMINAL (–), BATTERY
6 3-248-600-01 LID, BATTERY CASE
7 3-248-612-01 TERMINAL (+–), BATTERY
8 3-248-598-01 CABINET (LOWER)
9 3-246-344-11 FOOT, RUBBER
10 3-919-268-11 KNOB (VOL)
11 3-248-607-01 POINTER
L1 1-456-344-11 COIL, FERRITE-ROD ANTENNA (AM)
#1 7-685-151-14 SCREW +P 3X20 TYPE2 NON-SLIT
#2 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Accessories are given in the last of this parts list.
1
4
5
6
7
8
9
10
11
3
2
L1
#2
#1
#1
#2
