ICF-C630

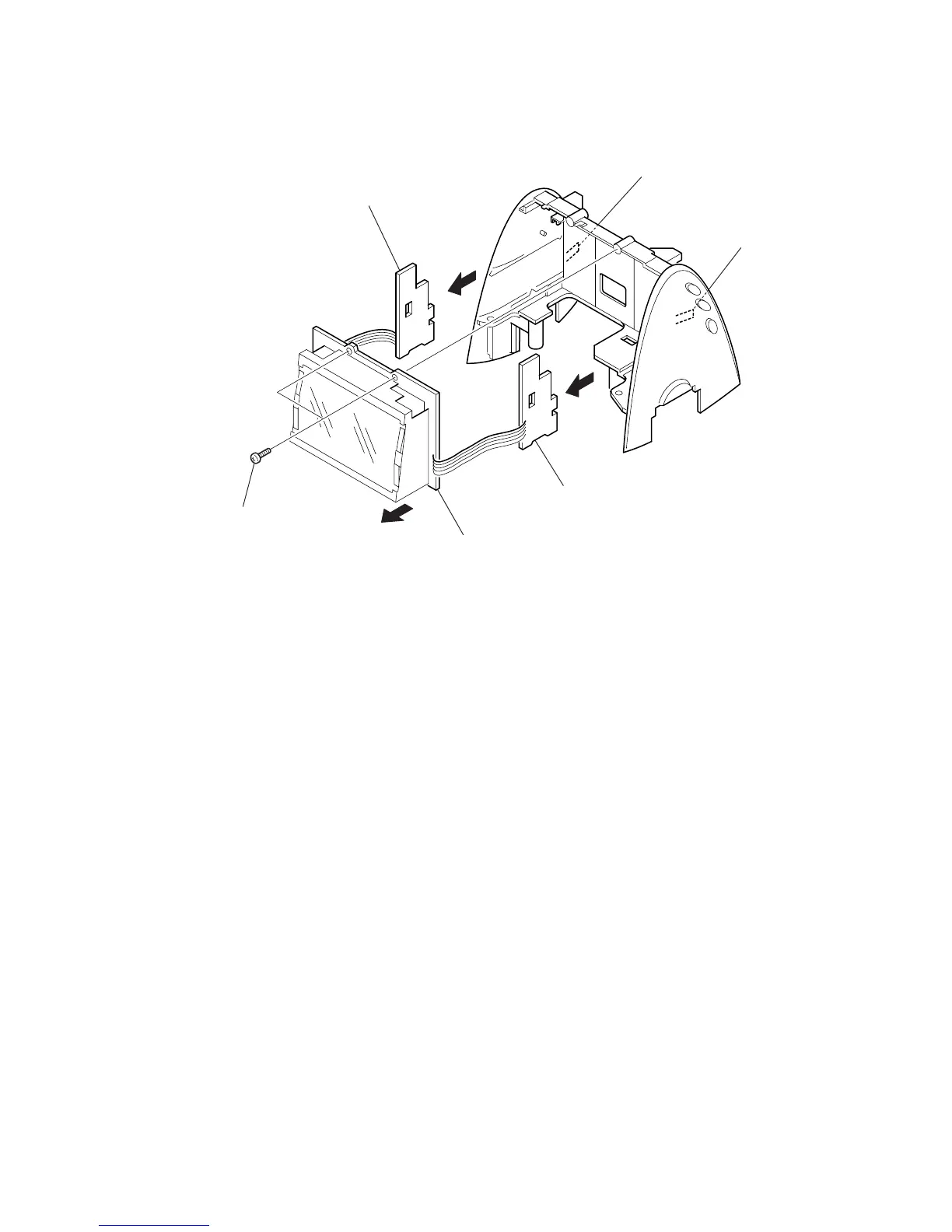

3-4. MICROCOMPUTER BOARD, KEY (LEFT) BOARD, KEY (RIGHT) BOARD
1
two screws
(+P2.6 x 8)
3
MICROCOMPUTER board
4
claw
7
cla
w
6
KEY (LEFT) board
9
KEY (RIGHT) board
2
5
8
