ICF-C630

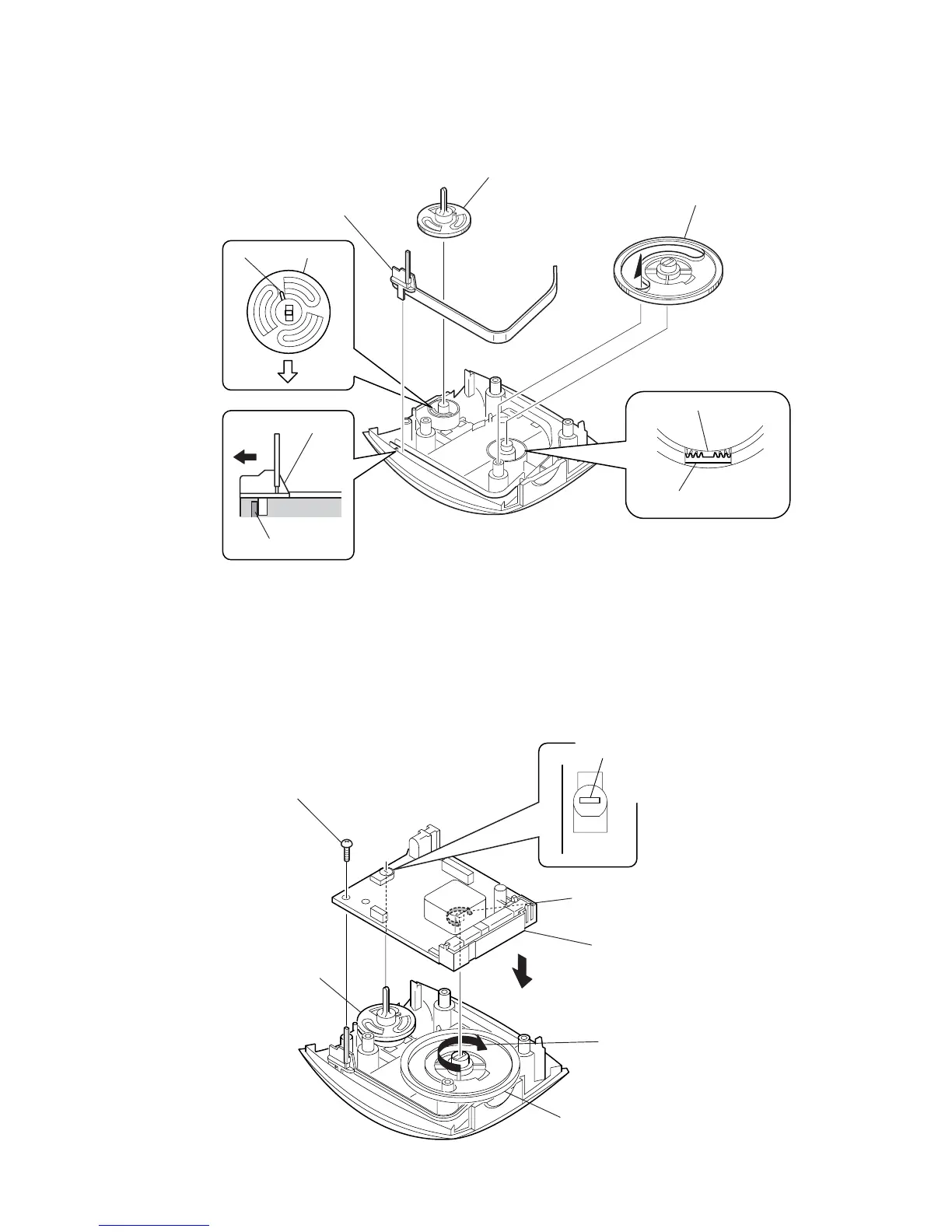

SECTION 1
SERVICING NOTES
1-2. INSTALLING THE TUNER BOARD
1-1. DIAL POINTER SETTING
front
knob (VOL)
mark
cabinet (lower)
pointer
pointer
knob (TUNE)
1 pointer
2
3
knob (VOL)
4 knob (TUNE)
RV1
6 screw
(+P2.6 x 8)
4 TUNER board
5 Adjust RV1 to the protrusion
on the knob (VOL).
2 Turn the spindle of CV1 fully
in the arrow direction.
1 Turn the knob (TUNE) fully
in the arrow direction.
knob (TUNE)
knob (VOL)
3
