33
ICF-CD855V
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

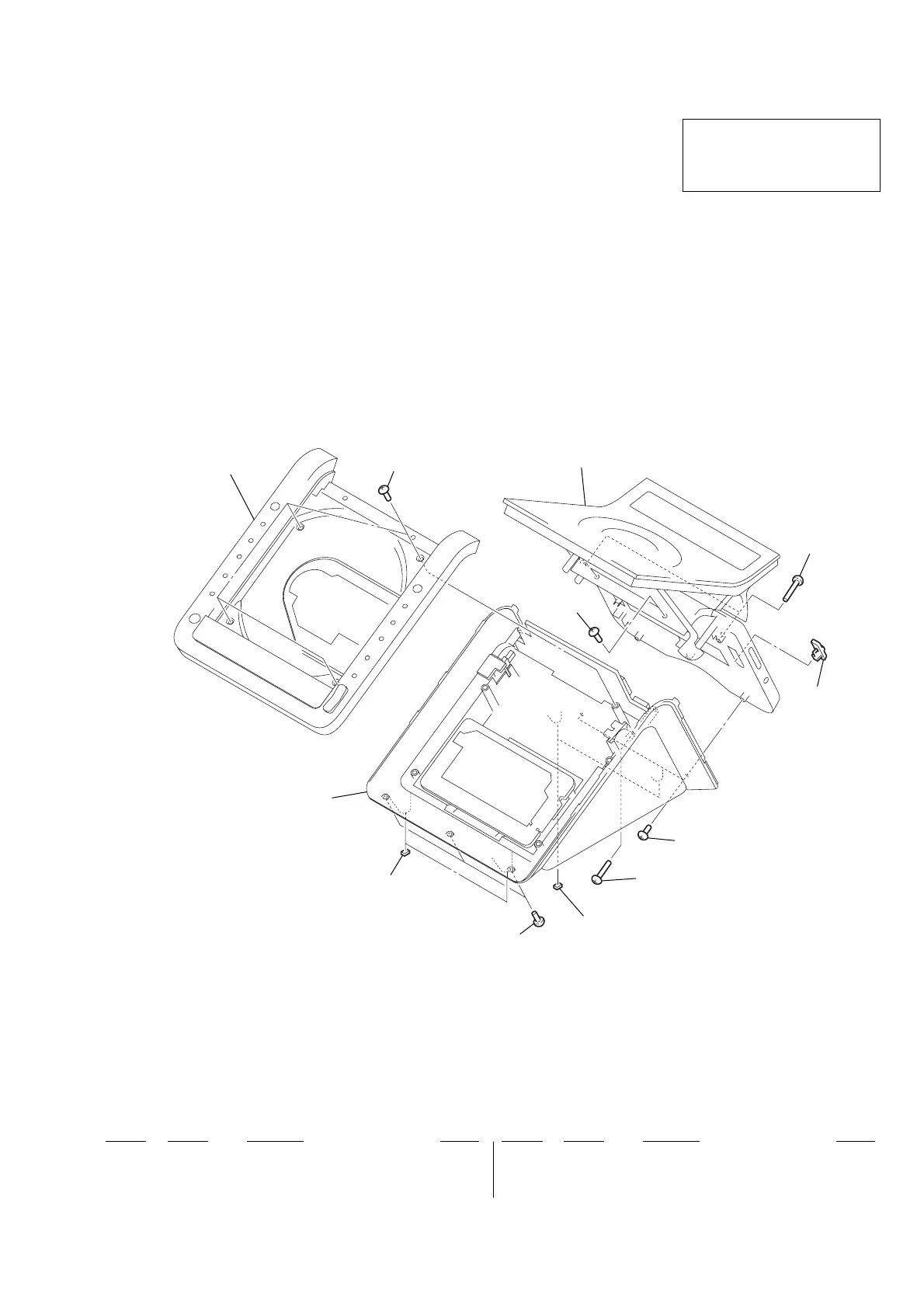

7-1. OVERALL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-246-344-11 FOOT, RUBBER
2 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
3 3-254-141-01 SCREW (B2.6), (+) BV TAPPING
4 3-262-675-01 KNOB (BRIGHTNESS) (SILVER)
4 3-262-675-11 KNOB (BRIGHTNESS) (WHITE)
1
1
2
2
2
2
3
3
4
cabinet (rear) block section
cabinet (upper) section
cabinet (lower) block section
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
