ICF-CD855V

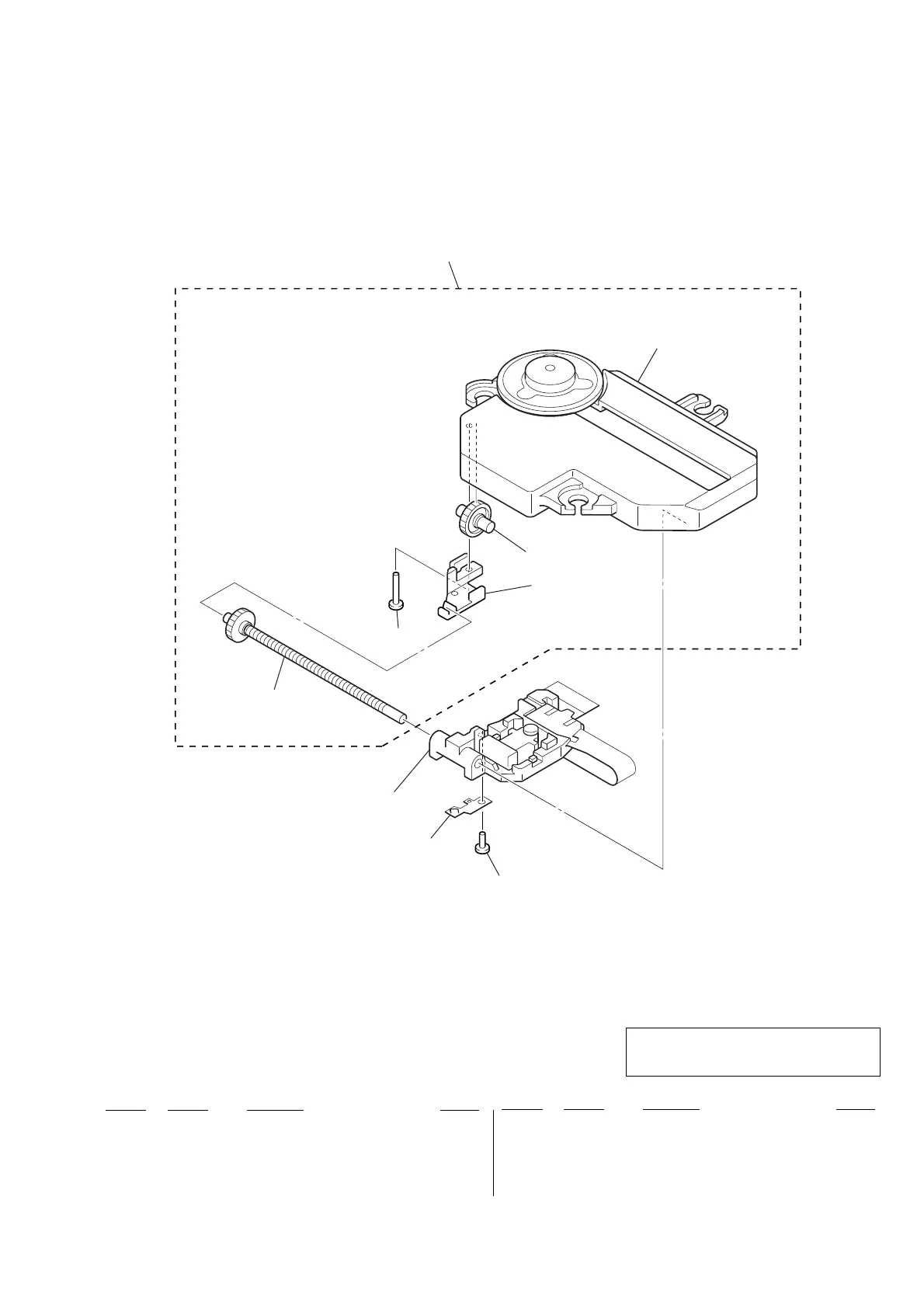

7-9. OPTICAL PICK-UP SECTION
(KSM-900AAA)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 401 A-4902-666-A MD ASSY (900AAA-RP)
(Including M701, M702)
402 2-165-627-02 GEAR B (780C)
403 2-165-626-01 HOLDER (780C)
404 2-646-352-01 SCREW (2X8)
405 X-2162-234-1 SCREW ASSY (780E), SLED
0406 8-820-137-02 OPTICAL PICK-UP KSS-900A/C2RP
407 2-165-630-02 SPRING (780C), RACK
408 2-646-358-11 SCREW (B1.7X4)
402
403
404
405
406
407
408
401
(including M701, M702)
not supplied
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
