Sony ICF-CD855V - Disassembly; Disassembly Flow; Cabinet (Rear) Block

5
ICF-CD855V

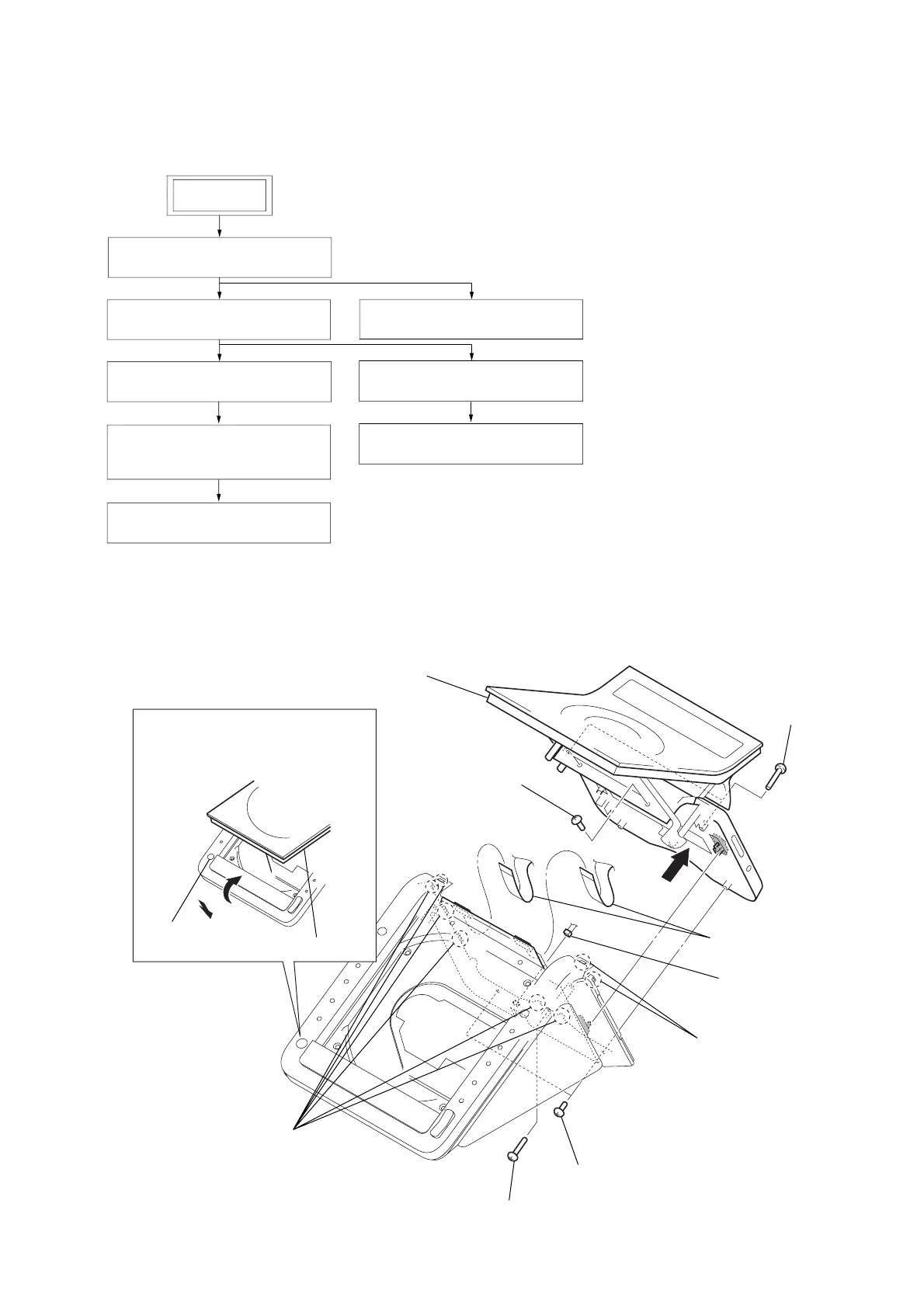

• This set can be disassembled in the order shown below.
SECTION 3
DISASSEMBLY
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. CABINET (REAR) BLOCK
CD lid
3 two screws
(B2.6)
q; cabinet (rear)
block
button (open)
1 Push the button (open),
and open the CD lid.
8 two flexible flat cables
(CNP301, 302)
7
5 two screws
(B2.6)
4 screw (B2.6)
6 six claws
6 two claws
9 connector
(CNP901)
2 two screws
(B2.6)
3-2. CABINET (REAR) BLOCK
(Page 5)
3-3. CABINET (UPPER) BLOCK
(Page 6)
3-9. CD LID BLOCK
(Page 9)
3-5. OPTICAL PICK-UP BLOCK
(KSM-900AAA)
(Page 7)
3-6. OPTICAL PICK-UP (KSS-900A)
(Page 7)
3-7. MAIN BOARD
(Page 8)
3-8. SPEAKER (SP101/SP201)
(Page 9)
SET
3-4. CD BOARD
(Page 6)
