ICF-CD855V
ANTENNA LOCATION

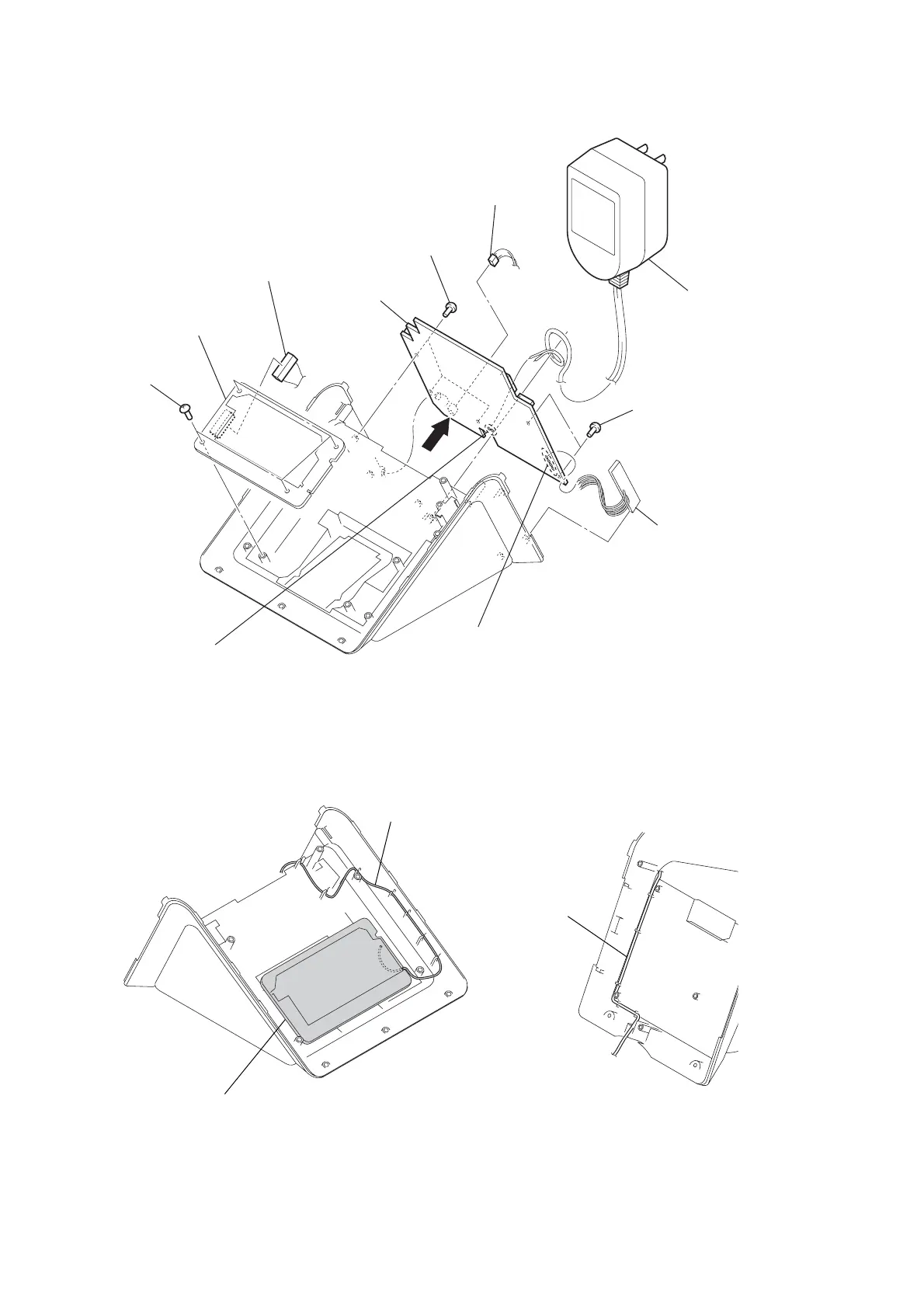

3-7. MAIN BOARD
9 power uni
t
qs MAIN board
qa SIDE board
5 three screws
(B2.6)
4 connector
(CNP304)
7
6 two screws
(B2.6)
q; Remove four solders.
8 Remove two solders.
1 four screws
(B2.6)
2 TUNER board
3 connector
(CNP2)
FM wire antenna (ANT1)
FM wire antenna (ANT1)
TUNER board
FRONT VIEW BACK VIEW
