Sony ICF-SW11 - SECTION 5 EXPLODED VIEWS; CABINET PARTS; HARDWARE AND ACCESSORIES

— 13 —
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
IT : Italian model
EA : Saudi Arabia model
CH : Chinese model
JE : Tourist model

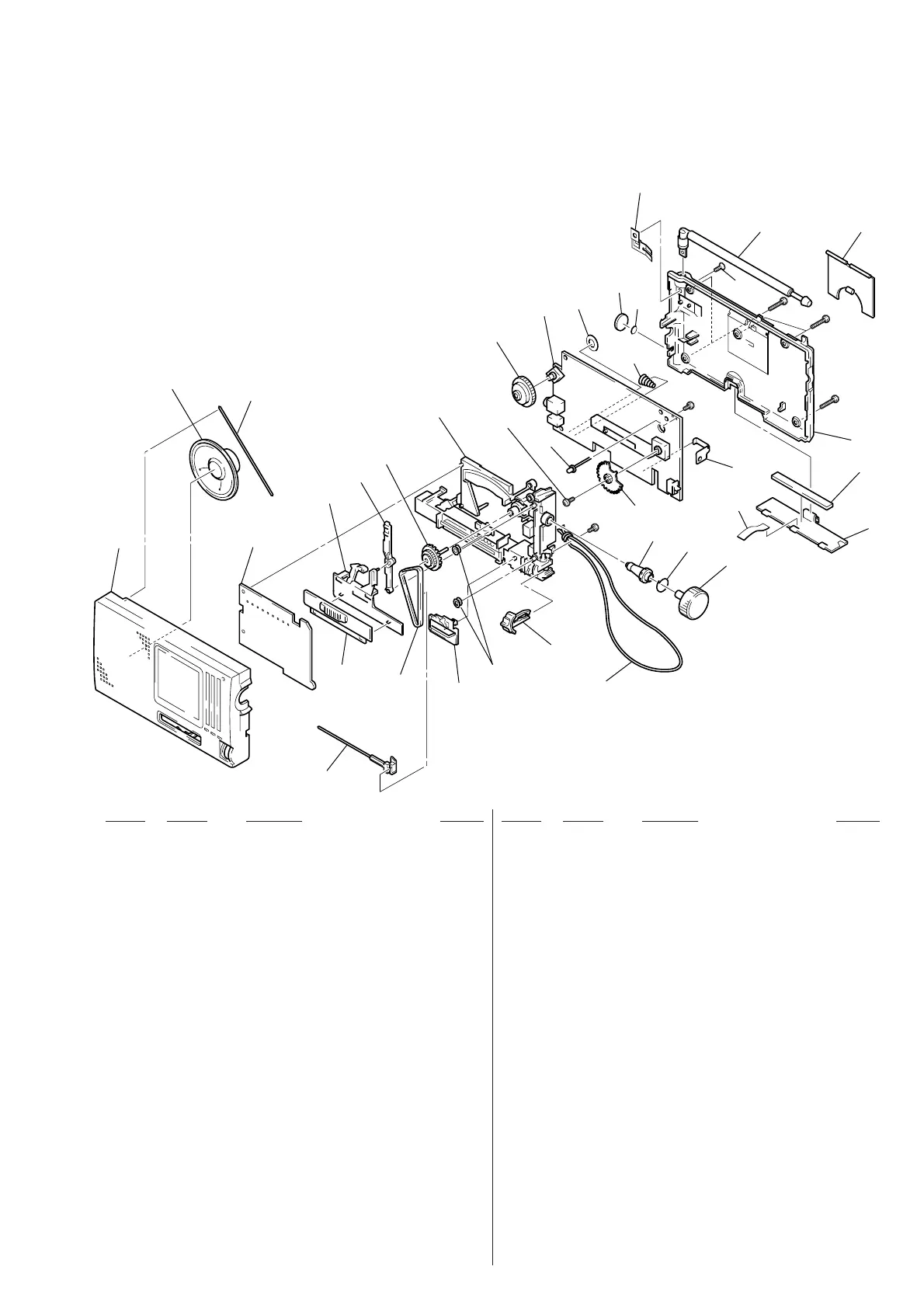

CABINET
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
SP901
4
7
5
8
9
10
13
14
18
15
16
25
26
29
27
24
17
28
23
21
20
19
D2
12
11
6
33
22
30
31
32
#3
#1
#2
#2
#2
ANT1
1 X-3377-979-1 CABINET (FRONT) ASSY (SILVER) (JE)
1 X-3377-980-1 CABINET (FRONT) ASSY (GRAY) (CH)
1 X-3377-981-1 CABINET (FRONT) ASSY (GRAY) (AEP,IT,E,EA)
1 X-3377-982-1 CABINET (FRONT) ASSY (SILVER)
(US,CND,AEP,IT,E,EA)
1 X-3378-083-1 CABINET (FRONT) ASSY (SILVER) (CH)
* 2 3-911-534-01 SPRING, PLUG
3 3-039-997-01 SCALE, DIAL (US,CND,AEP,IT,E,CH,EA)
3 3-039-997-11 SCALE, DIAL (JE)
4 3-039-998-01 POINTER
5 3-039-999-01 KNOB(BAND)
6 3-910-552-01 INDICATOR (A)
7 3-382-324-01 BELT(TUN)
8 3-910-553-01 INDICATOR (B)
9 3-900-157-01 PULLEY
10 3-040-002-01 KNOB(POWER)
11 3-380-910-01 GEAR, MIDWAY
12 3-910-548-01 CHASSIS
13 3-919-786-01 STRAP, HAND
14 3-380-908-01 SHAFT (TUN)
15 3-222-540-01 SPRING, RING
16 3-380-909-01 KNOB(TUN)
17 3-380-918-31 STAND
18 3-380-914-01 GEAR(A), TUNING CAPACITOR
19 3-880-990-00 SCREW (1.7 × 3),FLAT,(+) SPECIAL
20 3-380-913-01 KNOB(VOL)
* 21 A-3679-565-A MAIN BOARD, COMPLETE(CND,AEP,IT,E,CH,EA)
* 21 A-3679-765-A MAIN BOARD, COMPLETE (JE)
* 21 A-3683-132-A MAIN BOARD, COMPLETE (US)
22 3-043-282-01 TERMINAL (–), BATTERY
23 3-893-840-01 PLATE (ANTENNA), CONTACT
24 3-382-006-01 TERMINAL, BATTERY
25 3-380-922-11 LID,BATTERY CASE
26 3-312-059-11 CUSHION, BATTERY
27 3-910-547-41 CABINET (REAR) (US,CND,AEP,IT,E,JE,EA)
27 3-910-547-31 CABINET (REAR) (CH)
28 3-918-696-01 SCREW (M3 × 6 LOCK ACE)
29 3-040-003-01 RIBBON (BATTERY CASE LID)
30 3-040-964-01 COVER(DC) (CH)
31 3-040-965-01 SHEET(COVER DC), ADHESIVE (CH)
32 3-563-515-01 WASHER(A), FIBER
33 3-040-000-01 BASE(BAND)
D2 8-719-812-41 DIODE GL3PR8 (TUNE)
ANT1 1-501-222-81 ANTENNA, TELESCOPIC (FM)
SP901 1-544-517-11 SPEAKER
#1 7-685-105-19 TPG +P 2 × 8, TYPE 2, NON-SLIT
#2 7-685-138-19 SCREW +P 2.6 × 16 TYPE2 NON-SLIT
#3 7-685-134-19 SCREW +BTP 2.6 × 8 TYPE2 N-S
Ver 1.1 2001. 10
