Preparing the camera

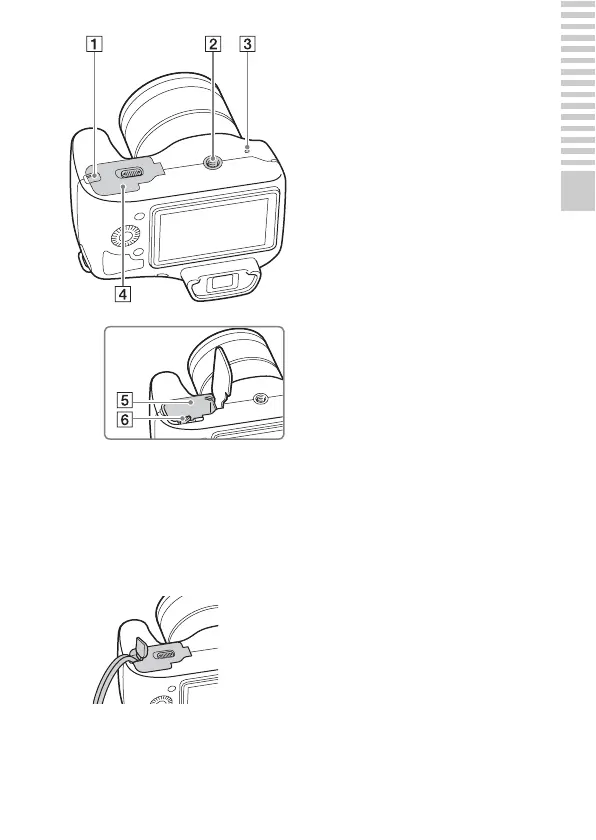

A Connection plate cover
Use this when using an AC-PW20
AC Adaptor (sold separately).
Insert the connection plate into the
battery compartment, and then pass
the cord through the connection
plate cover as shown below.
• Make sure that the cord is not
pinched when you close the
cover.
B Tripod socket hole
• Use a tripod with a screw length
of less than 5.5 mm
(7/32 inch). You will be unable to
firmly secure the camera to
tripods using screws longer than
5.5 mm (7/32 inch), and may
damage the camera.
C Speaker
D Battery cover (13)
E Battery compartment (13)
F Lock lever (13, 17)
