Sony KDL-32S3000 User Manual

- 5 -
SE1A
RM-ED009

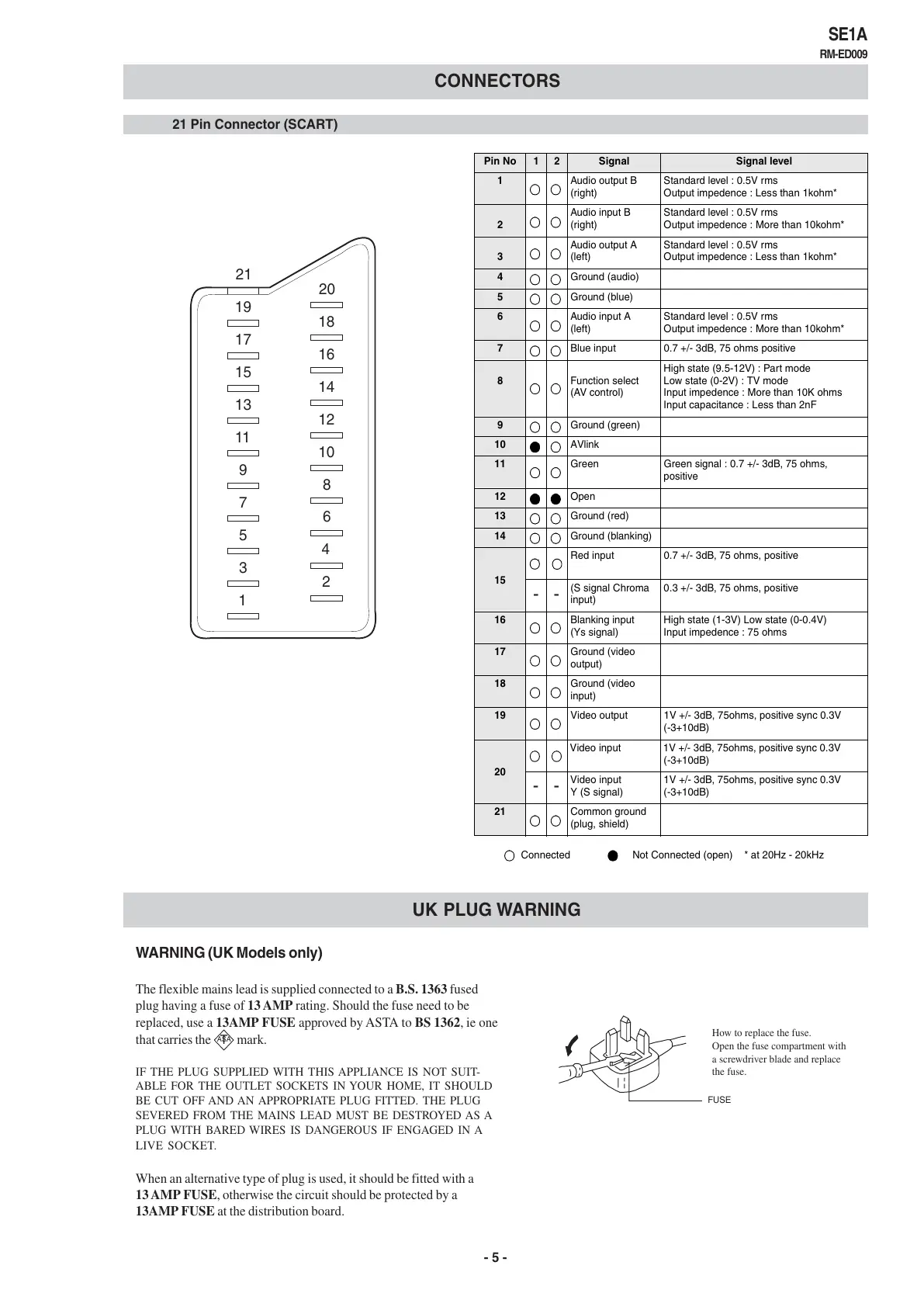

CONNECTORS
21 Pin Connector (SCART)
_ _ Red input 0.7 +/- 3dB, 75 ohms, positive
_ (S signal Chroma
Connected Not Connected (open) * at 20Hz - 20kHz
Pin No 1 2 Signal Signal level
1 Audio output B
(right)
Standard level : 0.5V rms
Output impedence : Less than 1kohm*
2
Audio input B
(right)
Standard level : 0.5V rms
Output impedence : More than 10kohm*
3
Audio output A
(left)
Standard level : 0.5V rms
Output impedence : Less than 1kohm*
4 Ground (audio)
5 Ground (blue)
6 Audio input A
(left)
Standard level : 0.5V rms
Output impedence : More than 10kohm*
7 Blue input 0.7 +/- 3dB, 75 ohms positive
8 Function select
(AV control)
High state (9.5-12V) : Part mode
Low state (0-2V) : TV mode
Input impedence : More than 10K ohms
Input capacitance : Less than 2nF
9 Ground (green)
10 AVlink
11 Green Green signal : 0.7 +/- 3dB, 75 ohms,
positive
12 Open
13 Ground (red)
14 Ground (blanking)
15
input)
0.3 +/- 3dB, 75 ohms, positive
16 Blanking input
(Ys signal)
High state (1-3V) Low state (0-0.4V)
Input impedence : 75 ohms
17 Ground (video
output)
18 Ground (video
input)
19 Video output 1V +/- 3dB, 75ohms, positive sync 0.3V
(-3+10dB)
20
Video input 1V +/- 3dB, 75ohms, positive sync 0.3V
(-3+10dB)
Video input
Y (S signal)
1V +/- 3dB, 75ohms, positive sync 0.3V
(-3+10dB)
21 Common ground
(plug, shield)
-
-
--
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
21
How to replace the fuse.
Open the fuse compartment with
a screwdriver blade and replace
the fuse.
FUSE
WARNING (UK Models only)
The flexible mains lead is supplied connected to a B.S. 1363 fused
plug having a fuse of 13 AMP rating. Should the fuse need to be
replaced, use a 13AMP FUSE approved by ASTA to BS 1362, ie one
that carries the
ASA
T
mark.
IF THE PLUG SUPPLIED WITH THIS APPLIANCE IS NOT SUIT-
ABLE FOR THE OUTLET SOCKETS IN YOUR HOME, IT SHOULD
BE CUT OFF AND AN APPROPRIATE PLUG FITTED. THE PLUG
SEVERED FROM THE MAINS LEAD MUST BE DESTROYED AS A
PLUG WITH BARED WIRES IS DANGEROUS IF ENGAGED IN A
LIVE SOCKET.
When an alternative type of plug is used, it should be fitted with a
13 AMP FUSE, otherwise the circuit should be protected by a
13AMP FUSE at the distribution board.
UK PLUG WARNING
All manuals and user guides at all-guides.com

Sony KDL-32S3000 Specifications

General

Audio system	B/G, D/K: R1-R12, R21-R69, I: UHF B21-B69, L: F2-F10, B-Q, F21-F69, NICAM
On Screen Display (OSD)	Yes
Headphone outputs	1
HDMI ports quantity	3
SCART ports quantity	2
Response time	8 ms
Display diagonal	32 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	149 W

Weight and Dimensions

Depth (with stand)	214 mm
Width (with stand)	790 mm
Height (with stand)	581 mm
Weight (with stand)	16500 g
Depth (without stand)	100 mm
Height (without stand)	530 mm
