Sony KDL-32S3000 User Manual

- 6 -
SE1A
RM-ED009

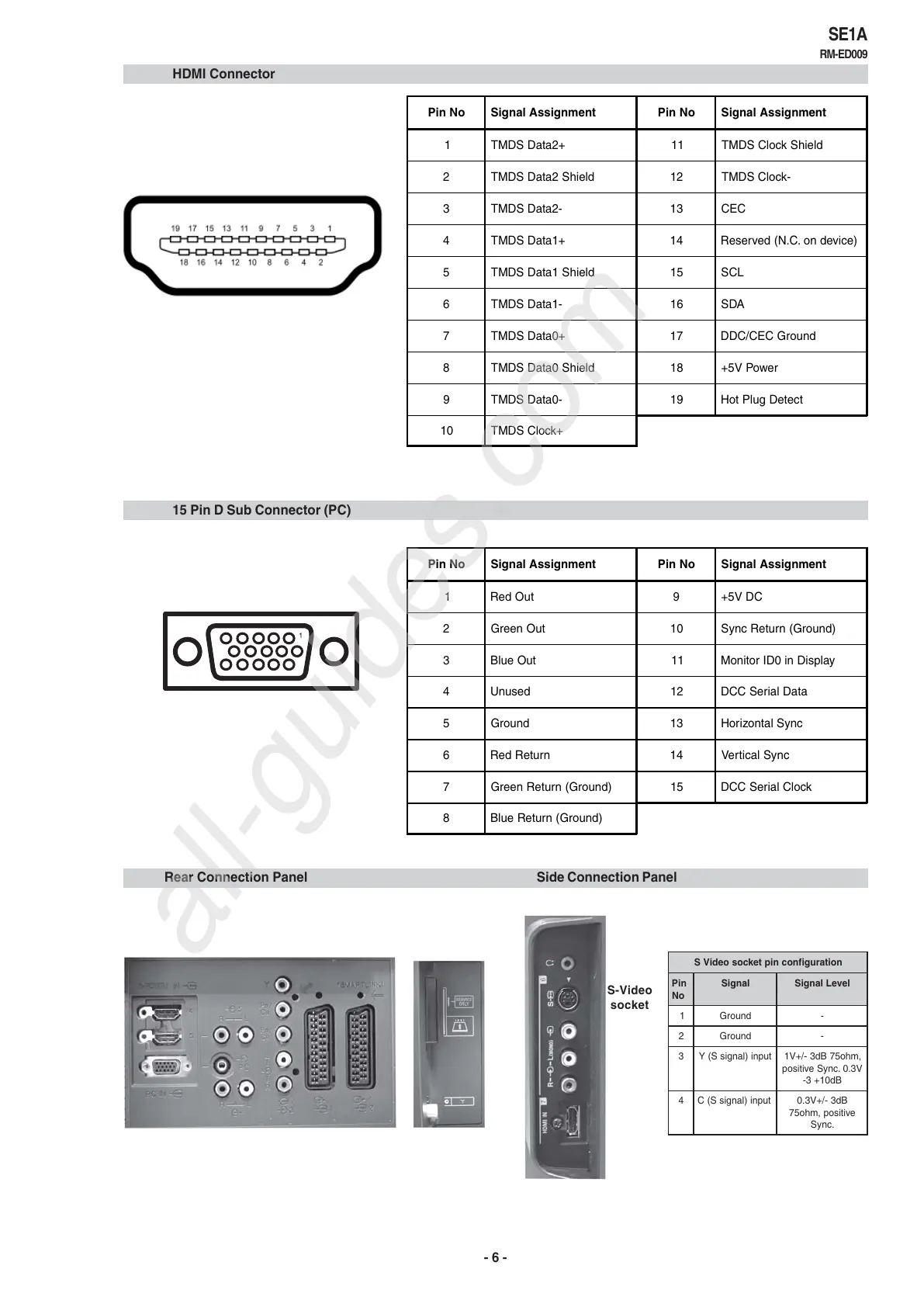

HDMI Connector
Rear Connection Panel Side Connection Panel
noitarugifnocniptekcosoediVS
niP
oN
langiS leveLlangiS
1dnuorG-
2dnuorG-
3tupni)langisS(Y,mho57Bd3-/+V1
V3.0.cnySevitisop
Bd01+3-
4tupni)langisS(CBd3-/+V3.0
ev
itisop,mho57
.cnyS
S-Video
socket
15 Pin D Sub Connector (PC)
1
Pin No Signal Assignment Pin No Signal Assignment
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Pin No Signal Assignment Pin No Signal Assignment
1 Red Out 9 +5V DC
2 Green Out 10 Sync Return (Ground)
3 Blue Out 11 Monitor ID0 in Display
4 Unused 12 DCC Serial Data
5 Ground 13 Horizontal Sync
6 Red Return 14 Vertical Sync
7 Green Return (Ground) 15 DCC Serial Clock
8 Blue Return (Ground)
All manuals and user guides at all-guides.com
all-guides.com

Sony KDL-32S3000 Specifications

General

Audio system	B/G, D/K: R1-R12, R21-R69, I: UHF B21-B69, L: F2-F10, B-Q, F21-F69, NICAM
On Screen Display (OSD)	Yes
Headphone outputs	1
HDMI ports quantity	3
SCART ports quantity	2
Response time	8 ms
Display diagonal	32 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Product color	Black
Power consumption (standby)	0.3 W
Power consumption (typical)	149 W

Weight and Dimensions

Depth (with stand)	214 mm
Width (with stand)	790 mm
Height (with stand)	581 mm
Weight (with stand)	16500 g
Depth (without stand)	100 mm
Height (without stand)	530 mm
