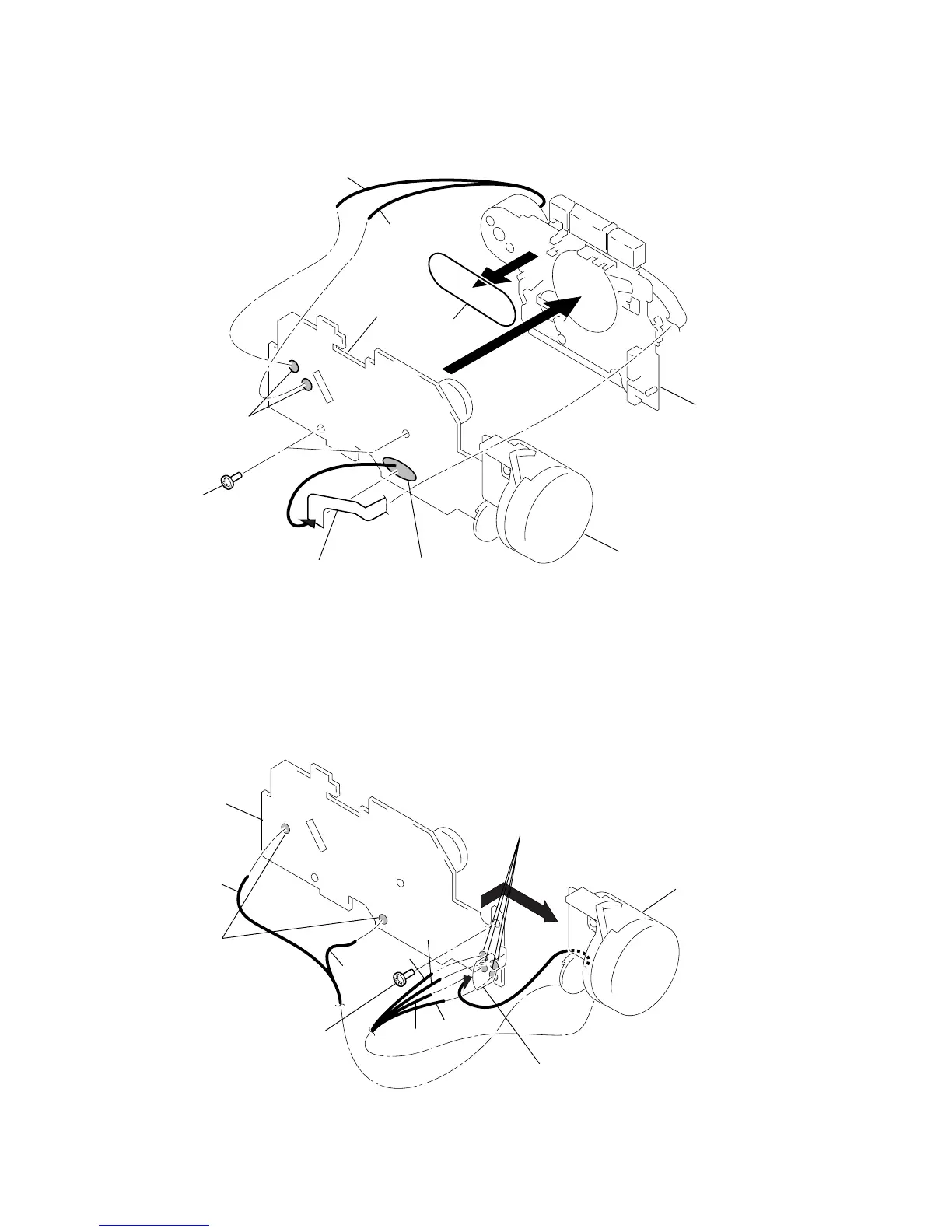

2-4. MIC-SP BLOCK ASSY, MAIN BOARD REMOVAL
2-3. MECHANISM DECK REMOVAL
2 Screw (M1.4)
1 Remove solder
1 Remove solder
MIC-SP block ass
y
Main board
3
Battery terminal
Yellow
Red
Black
Brown
Yellow
Blue
2 Screws
1 Remove solder
1 Remove solder
3
4
Mechanism dec
k
MIC-SP block assy
Blue
Red
Head flexble board
Main board
Belt
