* 8 4-997-180-51 PANEL, BACK (SP)
* 8 4-997-180-61 PANEL, BACK (HK)
* 8 4-997-180-81 PANEL, BACK (JE)
Not used
10 3-531-576-11 RIVET (AEP, UK, SP, HK)
! 15 1-777-071-31 CORD, POWER (AEP, SP, HK)
Not used
19 7-685-871-01 SCREW +BVTT 3X6 (S)
51 X-4949-429-3 PANEL ASSY, FRONT (SILVER) (JE)
51 X-4949-430-1 PANEL ASSY, FRONT (BLACK)
51 X-4949-429-1 PANEL ASSY, FRONT (SILVER) (EXCEPT JE)
54 4-989-520-21 KNOB (REC) (SILVER)
55 4-989-519-21 KNOB (AMS) (SILVER)
56 4-989-518-21 KNOB (HP) (SILVER)
57 4-989-517-21 KNOB (INPUT) (SILVER)
58 4-996-664-11 KNOB (TIMER) (BLACK)
58 4-996-664-01 KNOB (TIMER) (SILVER)
* 62 A-4724-484-A PANEL BOARD, COMPLETE (JE)
* 62 A-4699-953-A PANEL BOARD, COMPLETE (AEP, UK)
* 62 A-4699-950-A PANEL BOARD, COMPLETE (US, CND)
* 62 A-4699-956-A PANEL BOARD, COMPLETE (SP)
* 62 A-4724-154-A PANEL BOARD, COMPLETE (HK)
Not used
Not used
Not used
FL701 1-517-768-11 INDICATOR TUBE, FLUORESCENT
– 5 –
– 6 –
2. EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• Abbreviation
CND : Canadian
HK : Hong Kong
JE : Tourist
SP : Singapore
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
74
Page MDS-S38 MDS-S39
• DIFFERENCE TABLE
! : Indicates different portion
Ref. No. Part No. Description Remark
* 1 1-900-196-11 CASE (SILVER) (JE)
* 1 1-990-703-51 CASE (SILVER) (EXCEPT JE)
* 3 A-4724-483-A MAIN BOARD, COMPLETE (JE)
* 3 A-4699-952-A MAIN BOARD, COMPLETE (AEP, UK)
* 3 A-4699-949-A MAIN BOARD, COMPLETE (US, CND)
* 3 A-4699-955-A MAIN BOARD, COMPLETE (SP)
* 3 A-4724-153-A MAIN BOARD, COMPLETE (HK)
Not used
* 8 4-997-180-11 PANEL, BACK (US)
* 8 4-997-180-21 PANEL, BACK (CND)
* 8 4-997-180-31 PANEL, BACK (AEP)
* 8 4-997-180-41 PANEL, BACK (UK)
Ref. No. Part No. Description Remark
* 1 4-990-703-11 CASE (SILVER)
* 3 A-4699-641-A MAIN BOARD, COMPLETE (JE)
* 3 A-4699-714-A MAIN BOARD, COMPLETE (AEP, UK)
* 3 A-4699-717-A MAIN BOARD, COMPLETE (US, CND)
* 3 A-4699-720-A MAIN BOARD, COMPLETE (SP)
* 3 A-4699-723-A MAIN BOARD, COMPLETE (HK)
6 3-703-685-21 SCREW (+BV 3X8)
* 8 4-989-525-11 PANEL, BACK (US)
* 8 4-989-525-21 PANEL, BACK (CND)
* 8 4-989-525-31 PANEL, BACK (AEP)
* 8 4-989-525-41 PANEL, BACK (UK)
2
1
6
9
2
17
17
TR0O
#1
#1
#1
MDM-3B
FRONT PANEL
TR0O
2
1
2
2
17
17
19
#1
#1
#1
MDM-3B
FRONT PANEL
!
!
(EXCEPT JE)
This is not used on JE model.

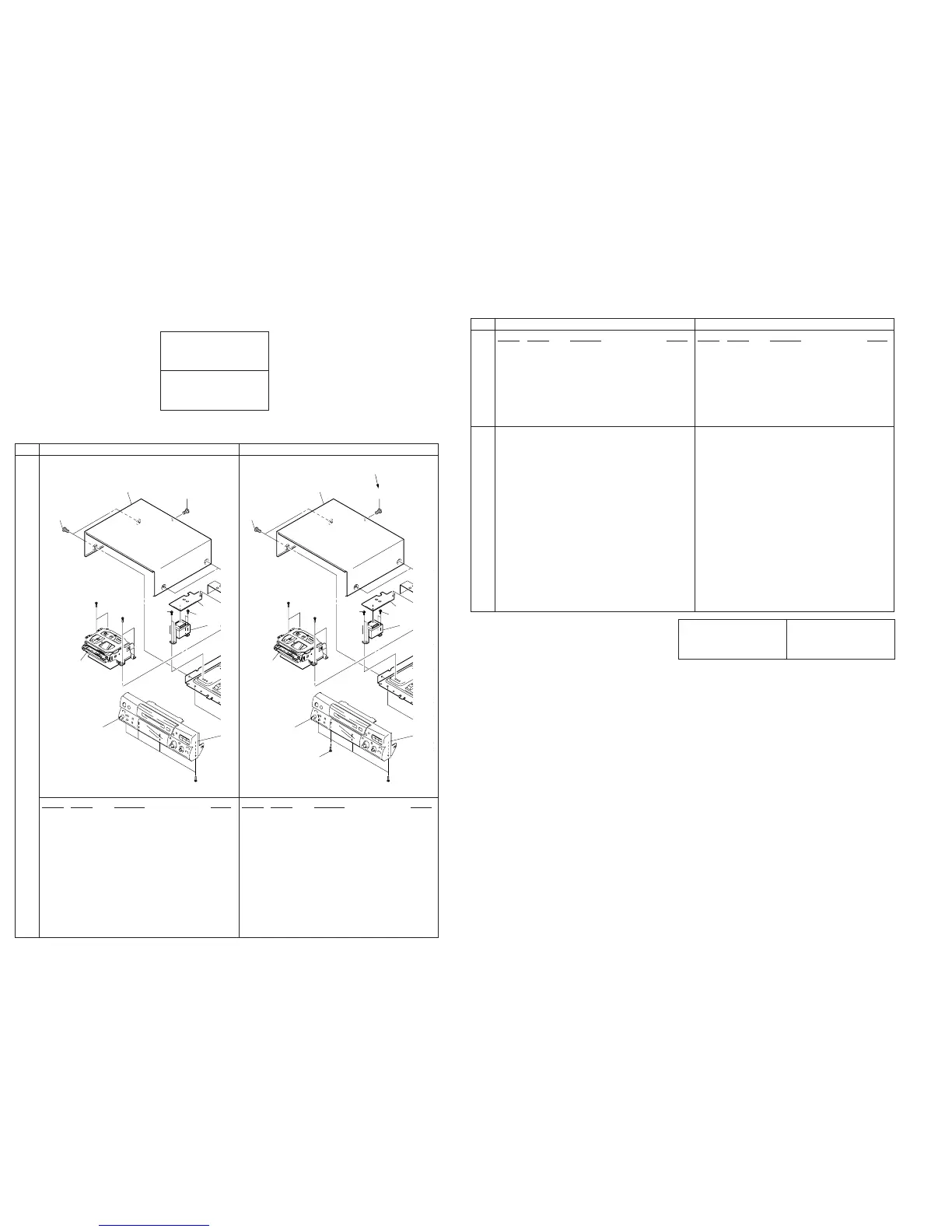

7-1. MAIN SECTION
7-1. MAIN SECTION
75
Page MDS-S38 MDS-S39
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 8 4-989-525-51 PANEL, BACK (SP)
* 8 4-989-525-61 PANEL, BACK (HK)
* 8 4-989-525-72 PANEL, BACK (JE)
10 3-531-576-01 RIVET (AEP, SP)
10 3-531-576-11 RIVET (UK, SP, HK)
! 15 1-575-651-91 CORD, POWER (AEP, SP, HK)
18 4-956-370-12 BAND, PLUG FIXED (UK, HK)
19 Not used
51 X-4948-319-1 PANEL ASSY, FRONT (SILVER) (JE)
51 X-4948-320-1 PANEL ASSY, FRONT (BLACK)
51 X-4948-321-1 PANEL ASSY, FRONT (SILVER) (EXCEPT JE)
54 4-989-520-11 KNOB (REC) (SILVER)
55 4-989-519-11 KNOB (AMS) (SILVER)
56 4-989-518-11 KNOB (HP) (SILVER)
57 4-989-517-11 KNOB (INPUT) (SILVER)
58 4-989-516-01 KNOB (TIMER) (BLACK)
58 4-989-516-11 KNOB (TIMER) (SILVER)
* 62 A-4699-645-A PANEL BOARD, COMPLETE (JE)
* 62 A-4699-715-A PANEL BOARD, COMPLETE (AEP, UK)
* 62 A-4699-718-A PANEL BOARD, COMPLETE (US, CND)
* 62 A-4699-721-A PANEL BOARD, COMPLETE (SP)
* 62 A-4699-724-A PANEL BOARD, COMPLETE (HK)
63 4-989-507-21 ESCUTCHEON (MD) (BLACK)
63 4-989-507-31 ESCUTCHEON (MD) (SILVER)
64 4-989-515-21 BUTTON (EJECT)
FL701 1-517-575-11 INDICATOR TUBE, FLUORESCENT
74
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
