Sony MHC-EX5 - Power and Battery Setup

Right speaker
Integrated
stereo amplifier
To improve the FM reception
Connect an outdoor FM aerial to the FM
75Q
terminal,
using
a
75-ohm
coaxial
cable
and
IEC
standard
socket
connector.
IEC standard socket connector
(not supplied)
To improve the AM reception
After
you
connect
the
AM
aerial,
connect
a
6-
to
15-
meter
(20-
to
50-
feet)
insulated
wire
to
the
AM
terminal.
Connect
the
>
terminal
to
earth.
FM lead aerial (supplied)
AM loop aerial
(supplied)
CD player
!Do this connection last!
important
Ground the external aerial against
lightning. To prevent a gas explosion, do
not connect the ground wire to a gas pipe.
Insulated wire
(not supplied)
Ground wire
(not supplied)
Left speaker
to a wall outlet

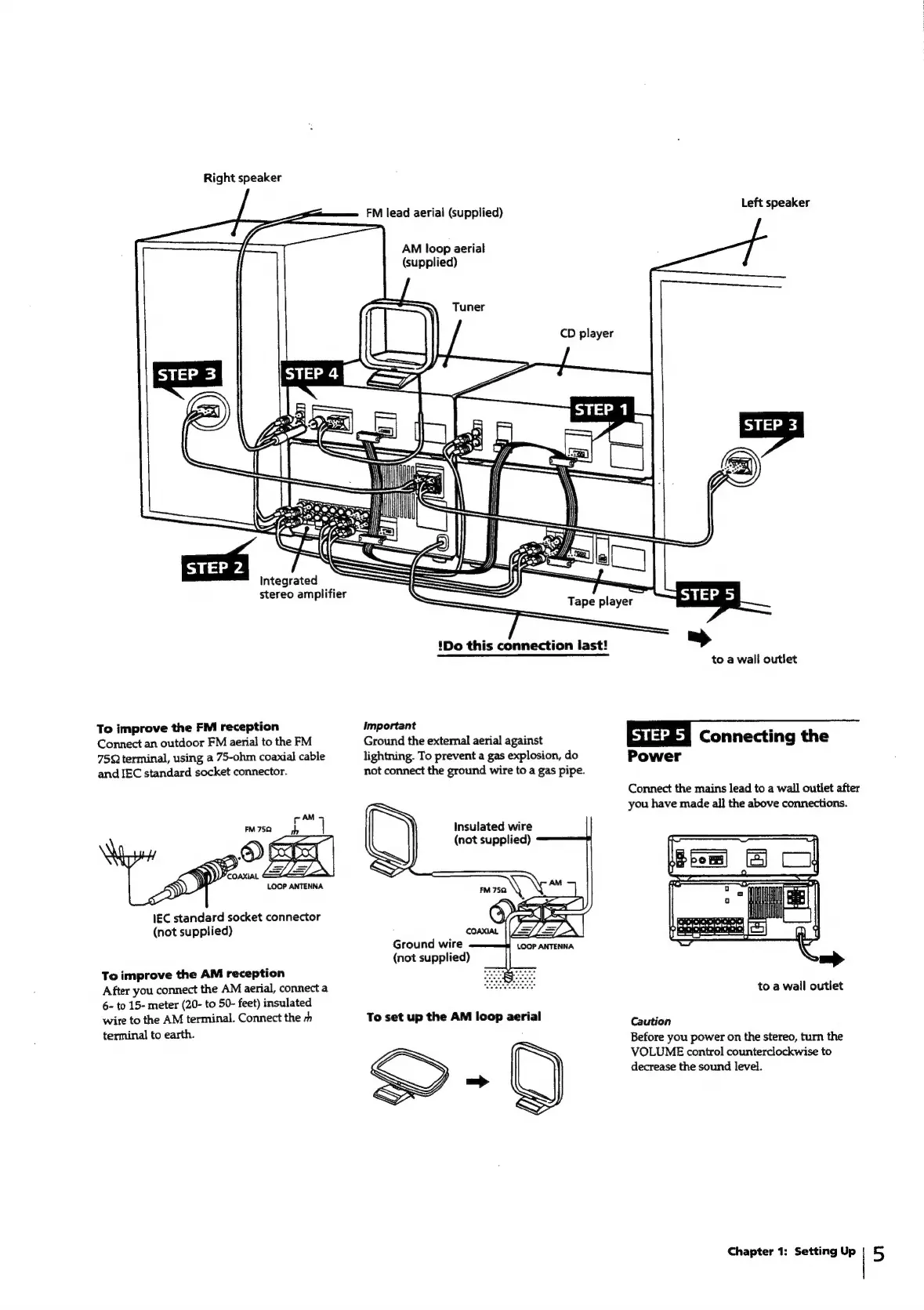

ISTEP 5 | Connecting the
Power
Connect the mains lead to a wall outlet after
you have made all the above connections.
to a wall outlet
Caution
Before you power on the stereo, turn the
VOLUME control counterclockwise to
decrease the sound level.
Chapter 1: Setting Up
5
